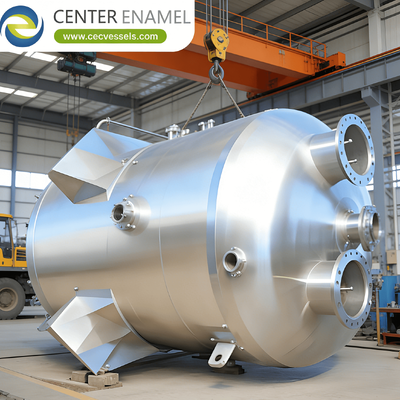

What Is a SIP Reactor? Sterilization, Design & Applications
| MOQ: | 1 Sets |
| Price: | 10000 USD |
| Delivery Period: | 2 months |
| Payment Method: | L/C,T/T |
| Supply Capacity: | 200 sets / days |
SIP reactor sterilization
,stainless steel SIP reactor
,SIP reactor design applications
What Is a SIP Reactor? Sterilization, Design & Applications
Answering the core question: What is a SIP reactor, and how does in-place steam sterilization guarantee aseptic operation? An SIP reactor is a vessel engineered to be sterilized in situ with saturated steam at 121-134 degree C for 15-30 min, achieving a sterility assurance level (SAL) of 10 to the minus 6 - a probability of a non-sterile unit below one in a million. Thermocouple mapping validates that every surface, including dead-legs, reaches the kill temperature. Sterile 0.2 micrometer vents, double mechanical seals with barrier fluid, and aseptic valves keep the reactor at below 1 CFU/100 mL after cooling, enabling aseptic bioprocessing in 0.05-20 m3 vessels without removal to an autoclave.
Core Operating Principles of SIP Reactors
- Saturated-Steam Kill: Steam at 121-134 degree C for 15-30 min delivers the D-value-based log reduction to SAL 10 to the minus 6 across all wetted surfaces.
- Thermocouple Mapping: Multiple probes confirm the coldest point (often a dead-leg) hits setpoint, qualifying the cycle before production.
- Sterile Barrier Integrity: 0.2 micrometer hydrophobic vents, double mechanical seals, and aseptic diaphragm valves block re-contamination during cool-down and batch.
Major Types of SIP Reactors
- SIP Bioreactor (316L): Electropolished (Ra below 0.8 micrometer) vessel with SIP-in-place lines for microbial and cell-culture aseptic runs.
- SIP Holding or Vessel Skid: Pre-sterilized tank with integrated filters and transfer panels for aseptic media or buffer prep.
- Hybrid SIP or Single-Use: SIP stainless core with single-use bags at product contact for flexible multi-product lines.
SIP Reactor Components Comparison Matrix
| SIP Component | Sterilization Method | Temp / Time | Assurance |
|---|---|---|---|
| Vessel Shell | Saturated steam | 121-134 degree C / 15-30 min | SAL 10^-6 |
| Vent Filter | Steam-in-place | 121 degree C / 30 min | 0.2 micrometer sterile |
| Transfer Lines | SIP + aseptic valve | 121 degree C / 20 min | <1 CFU/100 mL |
| Seals (DMS) | Barrier fluid sterile | Continuous | No ingress |
Frequently Asked Questions (FAQ)
Q: What does SAL 10 to the minus 6 mean for an SIP reactor?
A: Sterility Assurance Level of 10 to the minus 6 means the probability of a non-sterile unit is less than one in a million after the validated steam cycle.
Q: Why steam rather than chemical sterilization?
A: Saturated steam at 121-134 degree C penetrates all wetted surfaces and leaves no toxic residue, ideal for aseptic pharma and bioprocess use.
Q: How is the SIP cycle proven effective?
A: Thermocouple mapping shows the coldest point reaches the kill temperature for the full dwell; biological indicators (Geobacillus) may confirm the log reduction.
Q: What keeps the reactor sterile after cooling?
A: 0.2 micrometer sterile vents, double mechanical seals with sterile barrier fluid, and aseptic diaphragm valves prevent microbial ingress during transfer and hold.
