How Are Fermenters Produced? Manufacturing, Fabrication & Quality Assurance

How Are Fermenters Produced? Manufacturing, Fabrication & Quality Assurance

Detail Information
Highlight:

stainless steel fermenter manufacturing

,

fermenter fabrication process

,

stainless steel reactor quality assurance

Product Description

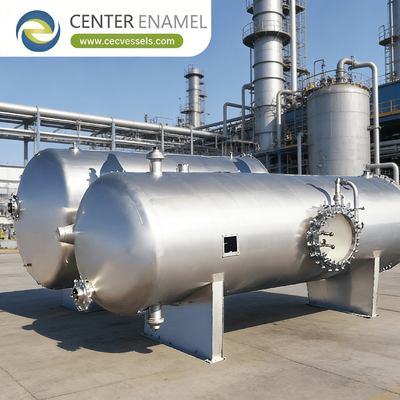

How Are Fermenters Produced? Manufacturing, Fabrication & Quality Assurance

Answering the core question: How is a fermenter produced from raw plate to a validated production vessel? Fermenter production is a controlled fabrication sequence: material certification and plate preparation, rolling and forming, longitudinal and circumferential seam welding, nozzle and jacket fitting, head forming and assembly, non-destructive examination, hydrostatic testing, surface finishing and passivation, and finally instrumentation, agitator installation, and factory acceptance testing. Vessels for food, beverage, and pharmaceutical service are built to ASME VIII Division 1 or EN 13445 with hygienic detailing to ASME-BPE, hydrotested at 1.3 times design pressure, and finished to a product-contact surface roughness of Ra <= 0.5 µm. Every stage generates a traceable record, from the EN 10204 3.1 mill certificate through to the weld map and pressure test chart.

1. The Fabrication Sequence

Shell construction is where dimensional accuracy and weld quality are won or lost. Three stages determine the mechanical integrity of the finished vessel:

  • Material Control and Forming: Production starts with plate and head material certified to EN 10204 3.1, which gives actual chemical analysis and mechanical properties rather than a generic range. For 316L, the specification is typically carbon below 0.03%, chromium 16.5-18.5%, nickel 10-13%, and molybdenum 2.0-2.5%, with controlled sulphur between 0.005 and 0.017% because sulphur strongly affects weld pool fluidity and penetration consistency in automated orbital welding. Plate is rolled to a diameter tolerance of ±0.5%, and torispherical or elliptical heads are formed hot or cold depending on thickness, with post-forming solution annealing where required.
  • Welding and Heat Control: Longitudinal and circumferential seams are joined by submerged arc or plasma welding with a backing strip, while nozzles, ferrules, and product-contact piping use automatic orbital gas tungsten arc welding with argon shielding and controlled heat input. Ferrite number in the weld metal is held between 3 and 10 FN to prevent hot cracking in austenitic stainless. Distortion is controlled by symmetrical weld sequencing and, where the vessel has a dimple or half-pipe jacket, by welding the jacket in a balanced pattern that avoids pulling the shell out of round.
  • Non-Destructive Examination and Pressure Test: Weld quality is verified by dye penetrant testing on all product-contact welds, radiographic or ultrasonic testing on main seams to a coverage of 10-100% depending on joint efficiency, and boroscopic inspection of every internal orbital weld to confirm full penetration and correct inner-bead colour. The completed vessel is then hydrotested at 1.3 times design pressure with water of chloride content below 50 ppm, held for 30-60 minutes, and examined for leakage, permanent deformation, and weeping at gasketed joints.

2. Finish, Assembly and Documentation

A pressure-tight vessel is not yet a fermenter. Three finishing stages determine whether it can hold sterility and be validated:

  • Surface Treatment: Internal product-contact surfaces are ground and mechanically polished to Ra 0.8 µm or better, then electropolished to Ra <= 0.5 µm for pharmaceutical duty. Electropolishing removes the smeared metal layer left by mechanical polishing, raises the chromium-to-iron ratio at the surface, and improves cleanability. The vessel is then pickled in a nitric-hydrofluoric bath to remove free iron and heat tint, passivated in 20-50% nitric acid at 50-60°C to form the passive chromium oxide film, and rinsed with deionised water to a chloride level below 25 ppm to prevent pitting before first service.
  • Mechanical and Instrument Assembly: The agitator is installed next: shaft runout is checked to within 0.05 mm per metre, the agitator is aligned to the vessel centreline, and the mechanical seal or magnetic drive is fitted according to the pressure and sterility class. Double mechanical seals with a sterile barrier fluid at API 682 Plan 53 are standard for sterile service. Jackets or half-pipe coils are pressure tested separately, insulation and cladding are applied, and instruments including temperature, pressure, level, pH, and DO are fitted with tri-clamp or aseptic connections and calibrated against traceable standards.
  • Documentation and Factory Acceptance: The deliverable closes with a documentation package: material certificates, weld map with welder identification, NDT reports, hydrotest chart, surface roughness measurement report, passivation certificate, dimensional report, and the manufacturer's data report for coded vessels. Factory acceptance testing demonstrates agitator run-in at full speed with vibration measurement, leak testing, control loop verification, and CIP coverage testing using riboflavin spray and ultraviolet inspection, which reveals shadowed areas that cleaning cannot reach.

Fermenter Production Stages and Acceptance Criteria

Production Stage Controlling Standard Acceptance Criterion Record Produced
Material and Forming EN 10204 3.1, ASME II Chemistry and mechanical properties verified Mill certificate, plate traceability
Welding ASME IX, ASME-BPE Ferrite 3-10 FN, full penetration, no cracks WPS, PQR, weld map
NDT and Pressure Test ASME VIII Division 1 1.3 x design pressure, no leakage RT/UT/PT reports, hydrotest chart
Finish and Assembly ASME-BPE SF grades Ra <= 0.5 µm, agitator runout < 0.05 mm/m Roughness report, passivation certificate

Frequently Asked Questions (FAQ)

Q: What standards apply to fermenter fabrication?

A: Pressure boundary design and construction follow ASME VIII Division 1 in North America, EN 13445 or the Pressure Equipment Directive 2014/68/EU in Europe, and GB 150 or the local equivalent in China, with the applicable code chosen by the installation jurisdiction rather than by the manufacturer. Hygienic detailing for product contact is additionally governed by ASME-BPE for bioprocessing and pharmaceutical vessels, and by EHEDG or 3-A sanitary standards for food and dairy. Welding procedure and welder qualification follow ASME IX, and material specifications come from ASME II or the equivalent European EN standards.

Q: Why is electropolishing specified for pharmaceutical fermenters?

A: Electropolishing removes 5-20 µm of surface material, dissolving the micro-peaks left by mechanical abrasion and the embedded abrasive particles that create crevices where product and microbes accumulate. The result is a smoother surface at Ra 0.4 µm or below, a chromium-enriched passive layer with measurably better corrosion resistance, and a surface that releases soil far more readily during CIP. That last property is what regulators care about: it makes cleaning validation achievable and reproducible, with riboflavin coverage testing and swab recovery consistently passing across repeated campaigns.

Q: How long does it take to manufacture a production fermenter?

A: A standard 10,000 L stainless steel fermenter takes approximately 4-6 months from approved drawings to factory acceptance: 2-3 weeks for material procurement, 4-6 weeks for shell and head forming and welding, 2-3 weeks for surface treatment, 3-4 weeks for mechanical assembly, instrumentation, and insulation, and 1-2 weeks for pressure testing and factory acceptance. Complex vessels with half-pipe jackets, high-pressure rating above 1.0 MPa, exotic alloys such as titanium or duplex, or full ASME-BPE documentation packages extend this to 7-9 months. Lead time on the agitator gearbox and mechanical seal is frequently the critical path item.

Q: What should be checked during a factory acceptance test?

A: Insist on five verifications. First, agitator run-in at rated speed for at least four hours with vibration velocity below 4.5 mm/s RMS and bearing temperature rise under 40°C. Second, hydrostatic or pneumatic test of vessel and jacket at the code-required pressure with a witnessed gauge reading. Third, control loop checks where every instrument is simulated at 0, 50, and 100% of range and the corresponding valve and drive response is confirmed. Fourth, CIP coverage testing with riboflavin and ultraviolet light. Fifth, a full documentation review against the purchase specification, including material certificates and the weld map, before any equipment is released for shipment.
