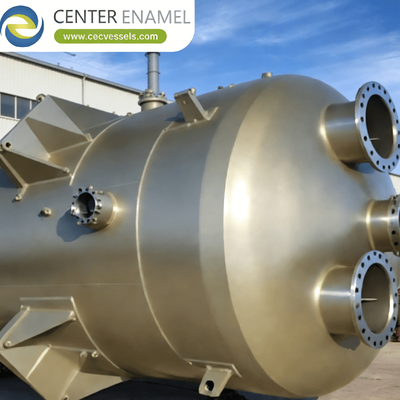

Answering the core question: How is a bioreactor produced, and how does it differ from building an ordinary pressure vessel? A bioreactor is built to the same pressure codes as any vessel, but production adds an aseptic layer of requirements that governs every product-contact surface. Product contact welds are made by automatic orbital welding rather than manual processes, with argon purging to limit heat-affected zone oxidation to a straw or light blue colour. Surfaces are mechanically polished and electropolished to Ra <= 0.5 µm, branch connections hold a dead leg ratio L/D of 2 or less, and every internal weld is boroscopically inspected. The outcome is verified by hydrotest at 1.3 times design pressure, a sterile hold at 121°C, and a validation documentation package supporting DQ, IQ, OQ, and PQ.

1. Aseptic Design Requirements During Production

Three requirements separate bioreactor production from general vessel fabrication, and all three must be designed in rather than inspected in afterwards:

• Hygienic Welding and Purging: Product-contact tube and pipe joints are made with automatic orbital gas tungsten arc welding using a qualified procedure that fixes current, pulse frequency, travel speed, and shielding gas. The weld is purged with argon on the inside at 5-15 L/min so the internal bead stays bright; oxidation progressing from straw through blue to grey indicates rising oxygen content and reduced corrosion resistance. Acceptance criteria typically require inner-bead convexity below 10% of wall thickness, no concavity, no cracks or lack of fusion, and full penetration confirmed by boroscopic examination at magnification of 10x or greater.
• Surface Finish and Cleanability: ASME-BPE defines surface finish grades from SF0 through SF6. Ground and mechanically polished surfaces reach SF1 at Ra 0.5-1.0 µm, while electropolished surfaces reach SF4 or SF5 at Ra 0.4 µm and below. Electropolishing is a controlled electrochemical dissolution that removes 5-20 µm of material, eliminating the smeared layer and embedded abrasive from mechanical polishing. Because cleaning validation depends on repeatable soil removal, the finish must be verified by profilometer readings at defined locations rather than by visual comparison with a standard coupon.
• Drainability and Dead Leg Control: An aseptic vessel must drain completely and must not contain pockets where product stagnates between batches. Production therefore specifies a minimum slope of 1-3 degrees on the vessel bottom toward the outlet, self-draining nozzle orientations, diaphragm-valve tees with a dead leg ratio L/D of 2 or less, and zero-static seals on all product connections. Internal surfaces are free of crevices, threaded fasteners, and lap joints in the product zone, which is why sanitary fittings such as tri-clamp and aseptic union connections replace flanged and threaded joints throughout the product path.

2. Verification, Testing and the Validation Package

Production closes with a sequence of verifications that produce the evidence regulators and customers require. Three activities carry the most weight:

• Pressure and Sterility Testing: After fabrication the vessel is hydrotested at 1.3 times design pressure using water with chloride content below 50 ppm, held for 30-60 minutes, then drained and dried to prevent chloride pitting. A sterile hold test follows: the closed vessel is steamed at 121°C for 30 minutes and held under positive pressure while all product-contact surfaces are monitored, confirming that the vessel maintains temperature uniformity within ±1°C at all thermocouple locations and retains pressure without loss over the hold period. Agitator seals are leak tested separately, and sterile gas filters are integrity tested by forward flow or bubble point.
• Documentation Deliverables: The validation package opens with design qualification evidence: drawings, P&IDs, material certificates to EN 10204 3.1, surface finish reports, and weld documentation with welder identification and procedure references. Installation qualification adds as-built drawings, instrument calibration certificates traceable to national standards, utility verification, and lubrication and seal records. Operational qualification demonstrates that each control function performs across its range, including agitator speed, temperature control accuracy, pressure control, and SIP cycle performance. The manufacturer must supply all of this in a format the owner can incorporate directly into their validation master plan.
• Cleaning and Turnover Verification: Before shipment the vessel is cleaned, passivated, and protected, with internal surfaces rinsed to a chloride level below 25 ppm and dried with filtered air. CIP coverage is verified by spraying the internal surfaces with a riboflavin solution, running the standard cleaning cycle, and inspecting under ultraviolet light for residual fluorescence, which indicates shadowed areas that cleaning cannot reach. Any fluorescent residue requires spray device repositioning or additional spray coverage. The vessel is then sealed, tagged, and shipped with a desiccant and positive nitrogen blanket to preserve the finished condition.

ASME-BPE Surface Finish Grades in Bioreactor Production

Frequently Asked Questions (FAQ)

Q: What is the difference between manufacturing a fermenter and manufacturing a bioreactor?

A: Mechanically they are very similar vessels; the difference lies in the acceptance criteria applied to product-contact surfaces. A bioreactor for pharmaceutical or high-purity food service requires automatic orbital welding with internal argon purging and boroscopic inspection of every internal weld, electropolished surfaces at Ra 0.4 µm or below, diaphragm valves with dead leg ratios of 2 or less, sloped and fully drainable bottoms, and a formal documentation package supporting DQ, IQ, OQ, and PQ. An industrial ethanol or wastewater fermenter built to the same pressure code may use manual welds, a mill or mechanically polished finish, and a standard manufacturer data report, which reduces fabrication cost substantially.

Q: Why must orbital welds be inspected with a boroscope?

A: Because the critical quality attributes of an aseptic weld are on the inside of the tube, where they cannot be seen from outside and where surface finish, oxidation, and penetration geometry determine both cleanability and corrosion resistance. A boroscope at 10x magnification or greater reveals incomplete penetration, concavity, misalignment, tungsten inclusions, and heat-affected zone discolouration ranging from acceptable straw through marginal blue to rejectable grey or black. These defects are invisible in radiography at typical wall thicknesses and cannot be detected by pressure testing, so boroscopic examination is the only practical verification method.

Q: How is surface roughness measured and documented?

A: Roughness is measured with a contact profilometer using a diamond stylus with a 2 µm tip radius, following ISO 4287 or ASME B46.1, with the Ra value averaged over a defined evaluation length and typically reported as the mean of at least three readings per location. Measurements are taken at representative areas including welds, heat-affected zones, and formed regions, since these locations usually run rougher than flat plate. The report records instrument calibration date, cut-off length, evaluation length, and the measured values against the specified SF grade, and becomes part of the design qualification evidence in the validation package.

Q: Do bioreactors built outside Europe or North America meet the same standards?

A: Yes, when the purchaser specifies the code and verifies compliance. Reputable fabricators in China routinely build to ASME VIII Division 1 with a U or UM stamp, to EN 13445 with CE marking under the Pressure Equipment Directive 2014/68/EU, and to ASME-BPE hygienic requirements, and they supply EN 10204 3.1 material certificates, qualified welding procedures to ASME IX, and third-party inspection reports. The critical control is independent verification: the purchaser should engage a third-party inspection agency to witness the hydrotest, review the weld map and NDT records, and confirm surface finish measurements before release for shipment.
