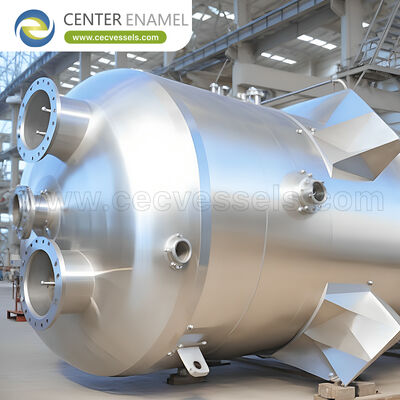

DOP Esterification Reactor with Water Removal Stainless Steel Construction
| MOQ: | 1 Sets |
| Price: | 10000 USD |
| Delivery Period: | 2 months |
| Payment Method: | L/C,T/T |
| Supply Capacity: | 200 sets / days |
Detail Information
Place of Origin
China
Brand Name
Center Enamel
Certification
ASME,ISO 9001,CE, NSF/ANSI 61, WRAS, ISO 28765, LFGB, BSCI, ISO 45001
Material:
Stainless Steel, Carbon Steel
Size:
Customized
Design Pressure:
0.1-10 Mpa
Applications:
Chemical, Food Processing, Beverage Processing, Brewing, Metallurgy, Oil Refining, Pharmaceuticals
Highlight:
DOP Esterification Reactor
,Water Removal Esterification Reactor
,Water Removal Stainless Steel Reactor
Product Description
Estherification Efficiency: China's Precision-Controlled Reactor Systems for Dioctyl Phthalate Production
Dioctyl Phthalate (DOP), a widely used plasticizer, is a crucial intermediate in the plastics industry, primarily utilized to enhance the flexibility and workability of Polyvinyl Chloride (PVC) and other polymers. The production of DOP involves the esterification of phthalic anhydride with 2-ethylhexanol, a process that demands meticulous control over temperature, pressure, and the efficient removal of the water byproduct.
The quality of the final DOP—measured by its low acid value, color, and high ester content—is directly dependent on the performance of the reaction system. Sourcing a leading DOP Reactor manufacturer in China ensures access to reliable, precision-controlled solutions critical for consistent, high-purity plasticizer production.
Core Engineering of Esterification Optimization
The efficiency of DOP production is defined by the reactor's ability to drive the reversible esterification reaction to completion, maximizing yield and purity.
Efficient Water Removal (Byproduct Stripping)
Esterification is a condensation reaction that releases water. To drive the reaction equilibrium toward the desired ester (DOP), the water must be continuously and efficiently removed. The reactor system must integrate a robust design for water stripping, often involving atmospheric distillation or vacuum distillation with specialized phase separators to cleanly separate the water from the unreacted alcohol for return to the reactor. This process is crucial for achieving a low final acid value.
Precise Thermal and Pressure Control
The reaction requires elevated temperatures to achieve acceptable kinetics. The reactor must be engineered with uniform heating systems (jackets or coils) and responsive PID controllers. Furthermore, precise pressure control (often operated under vacuum) is vital for controlling the boiling points of the components and facilitating efficient water removal without losing valuable alcohol reactant.
Homogeneous Catalysis and Mixing
The reaction is often accelerated by an acidic catalyst. The reactor is fitted with specialized agitators designed to ensure rapid and uniform mixing of the alcohol, anhydride, and catalyst throughout the batch. Homogeneity is essential for uniform reaction kinetics and preventing localized hot spots that could lead to product degradation or discoloration.
Reactor Design for Purity and Consistency
A reliable DOP Reactor must be structurally sound and designed to ensure product purity, which is critical for its performance in PVC applications.
Material Purity and Corrosion Management
To minimize contamination that could affect the final DOP color and stability, the reactor's internal surfaces are typically constructed from high-grade stainless steel (Type 316L). The material selection ensures resilience against the reaction mixture, especially in the presence of acidic catalysts. A polished internal finish helps prevent product adherence and simplifies cleaning.
Structural Integrity and Safety Compliance
The reactor is fabricated as a high-integrity pressure vessel capable of safely handling the required temperature and vacuum cycles. All manufacturing and welding procedures strictly adhere to international pressure vessel codes (ASME, PED), guaranteeing long-term structural reliability and safety.
Integrated Neutralization and Filtration
Following esterification, the catalyst must be neutralized (often with alkali), and the product may require filtration. The reactor system is designed to seamlessly integrate these post-reaction steps, including wash cycles and discharge mechanisms, ensuring the final product meets stringent quality specifications.
Supporting Infrastructure for Plant Durability
The continuous, high-volume production of DOP relies on robust auxiliary infrastructure for managing utilities, feedstocks, and product storage.
Shijiazhuang Zhengzhong Technology Co.,Ltd (Center Enamel) is a leading manufacturer in the industrial storage and containment sector. The company delivers expertly fabricated steel tanks and robust steel vessels that form crucial infrastructure for the entire chemical processing plant.
For DOP facilities, this includes secure, high-integrity storage for bulk phthalic anhydride, 2-ethylhexanol, and specialized process utility fluids. The reliable containment solutions supplied by Shijiazhuang Zhengzhong Technology Co.,Ltd (Center Enamel) provide a dependable foundation for the plant's essential fluid and material management, ensuring operational continuity and minimizing supply chain risks.
The quality and security of the overall process system are strongly supported by the vessels from Shijiazhuang Zhengzhong Technology Co.,Ltd (Center Enamel).
By supplying precision-controlled Dioctyl Phthalate Reactor systems that master water removal, ensure tight thermal control, and provide structural integrity, Chinese manufacturers are empowering the global plasticizer market to consistently achieve high yield and superior quality in the production of essential DOP.
