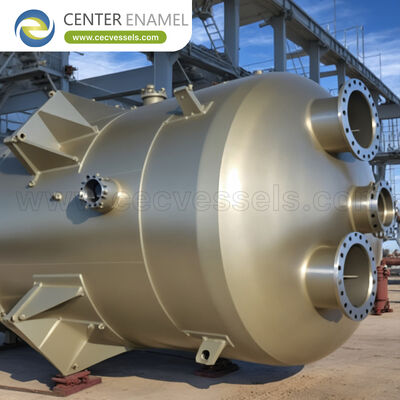

Polymer Blending Reactors: High Torque & Thermal Precision

Polymer Blending Reactors: High Torque & Thermal Precision

MOQ: 1 Sets
Price: 10000 USD
Delivery Period: 2 months
Payment Method: L/C,T/T
Supply Capacity: 200 sets / days
Detail Information
Place of Origin
China
Brand Name
Center Enamel
Certification
ASME,ISO 9001,CE, NSF/ANSI 61, WRAS, ISO 28765, LFGB, BSCI, ISO 45001
Material:
Stainless Steel, Carbon Steel
Size:
Customized
Design Pressure:
0.1-10 Mpa
Applications:
Chemical, Food Processing, Beverage Processing, Brewing, Metallurgy, Oil Refining, Pharmaceuticals
Highlight:

Polymer Blending Chemical Reactor

,

Precise Thermal Management Chemical Reactor

,

Structural Integrity Mixing Reactor

Product Description
Polymer Blending Reactors: High Torque & Thermal Precision

Polymer blending is defined by extreme fluid rheology—high viscosity and non-Newtonian behavior. Achieving a homogenous blend requires high torque agitation to overcome viscous resistance and precise thermal management to prevent polymer degradation. The optimal reactor design integrates robust, low-speed/high-torque agitators (like helical ribbons or anchors) with high-efficiency thermal jackets to manage the thermal boundary layer, ensuring consistent product quality in challenging high-viscosity applications.

1. The Rheology Challenge: High Torque Agitation

Unlike Newtonian fluids (like water), polymers exhibit complex viscosity profiles that change with shear rate. To achieve a uniform blend, the agitator must exert sufficient torque to maintain a constant shear rate throughout the vessel volume.

Agitator Selection for High-Viscosity Blends

Standard turbines fail in high-viscosity polymer blends due to cavitation or localized "dead zones." Custom reactors utilize:

  • Helical Ribbon Agitators: Induce vertical flow, preventing stagnant zones and forcing the polymer toward the heat-exchange walls.
  • Anchor Agitators: Designed with close-clearance wall scrapers that eliminate the boundary layer, which is critical for heat transfer in viscous batches.
2. Precise Thermal Management

Polymers are notoriously poor conductors of heat. This makes precise thermal management a challenge; the outer layers of the batch often reach degradation temperatures while the center remains unmixed or cool.

To maximize $U$ in polymer blending, engineers must minimize the thermal boundary layer. Because the polymer is viscous, this layer tends to be thick and insulative.

Effective Design Strategies
  1. High-Surface-Area Jackets: Utilize half-pipe or dimple jackets with high-velocity heating/cooling media to maximize $U$.
  2. Integrated Agitator Heating: In extreme cases, internal heating coils or even hollow-flight agitators can be used to deliver heat directly into the center of the viscous mass.
  3. Zonal Control: Dividing the jacket into multiple independent temperature zones allows the reactor to apply different thermal profiles at the bottom vs. the sidewalls, helping to balance the batch temperature.
3. Comparison: Mixing & Thermal Configurations
FeatureAnchor AgitatorHelical RibbonDual-Shaft Planetary
Viscosity LimitHighVery HighExtreme
Heat TransferExcellent (Scrapes wall)Good (High turnover)Best (Intense shear)
Blending SpeedModerateFastVery Fast
Best ApplicationUniform thermal massLarge batch homogeneityPaste/High-solids blends
4. Engineering Best Practices for Optimization
  • Variable Frequency Drives (VFDs): Essential for handling the viscosity change as the polymer blend progresses from a low-viscosity liquid to a high-viscosity homogeneous melt or solution.
  • Seal Design: High-viscosity mixing creates significant axial and radial loads on the agitator shaft. Heavy-duty, high-torque gearboxes and robust mechanical seals are required to prevent leakage and downtime.
  • Data-Driven Monitoring: Integration of torque-monitoring sensors allows the control system to correlate the "torque-per-viscosity" curve, providing real-time data on the completion of the blending process.
5. Frequently Asked Questions (FAQ)

Q: Why does my polymer degrade at the walls of the reactor?

A: This is usually due to "hot-spotting" caused by an ineffective boundary layer management. If your agitator isn't scraping the wall, the polymer at the wall overheats. Upgrading to a close-clearance anchor agitator with scrapers will significantly improve thermal uniformity.

Q: How do I know if I have enough torque?

A: If the motor draws excessive current, the agitator stalls, or you observe stagnant zones (unmixed patches) in the center of the tank, you are likely torque-limited. An increase in gearbox reduction ratio or a shift to a more efficient impeller geometry (like a helical ribbon) is often required.

Q: Can a standard jacketed reactor work for polymer blending?

A: Generally, no. Standard reactors are designed for low-viscosity applications. Polymer blending requires specialized wall-scraping geometry and much higher structural reinforcements to handle the torque loads of the polymer's increased viscosity.

Successful polymer blending is the result of balancing high-torque fluid dynamics with exacting thermal control. By prioritizing wall-scraping agitator geometries and optimizing the overall heat transfer coefficient ($U$), processors can minimize cycle times and ensure high-quality, uniform product output. Investing in the right reactor geometry for your specific polymer viscosity is the single most effective way to reduce batch failure rates.
