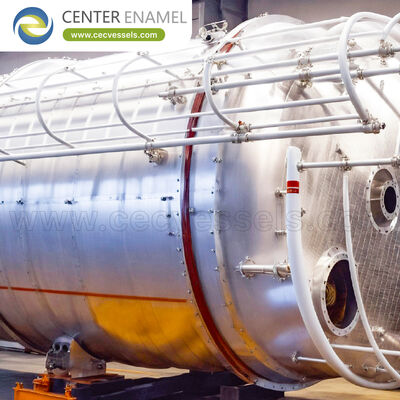

Answering the core question: What does an ASME reactor from Shijiazhuang Zhengzhong Technology Co., Ltd provide to chemical and petrochemical operators? Shijiazhuang Zhengzhong Technology Co., Ltd (Center Enamel) engineers and fabricates ASME VIII Division 1 and Division 2 reactors built to the U-stamp rules, with design pressures from 0.1 to 35 MPa and operating temperatures from -50 to 500°C. Vessels are produced in 304, 316L, 316Ti, duplex 2205 and Hastelloy C-276, with wall thickness up to 150 mm, full-penetration welds qualified to ASME IX, post-weld heat treatment where required, and radiographic or ultrasonic examination to the chosen inspection level. Every unit ships with a U-1A data report and National Board registration where the destination market requires it.

1. What Defines an ASME-Coded Reactor

ASME VIII is the dominant global construction code for pressure vessels. Four elements separate a code-compliant reactor from a fabricated shell:

• Code Basis and the U-Stamp: ASME VIII Div 1 covers most fired and unfired pressure vessels to a defined pressure-thickness scope, while Div 2 (alternative rules) allows lower safety factors and thinner walls through detailed stress analysis but demands stricter materials and quality assurance. A manufacturer holding the U-stamp is authorized by ASME after a joint review with the National Board, must operate a written quality control system, use ASME-certified inspectors, and stamp each vessel only after all examinations pass. This authorization, not the drawing, is what lets the vessel enter service in most jurisdictions.
• Design by Rule and by Analysis: Div 1 uses straightforward design-by-rule formulae for shells, heads and openings, which is fast for conventional geometries. Div 2 permits design-by-analysis with finite element methods to justify local stresses, supports and nozzles at lower margins, cutting weight on large or complex reactors by roughly 10 to 20 percent. The choice follows vessel size, geometry and cyclic load: a simple vertical reactor uses Div 1 rules, while a tall multi-nozzle converter with thermal gradients uses Div 2 analysis to stay both safe and economical.
• Materials, Toughness and PWHT: Material selection starts with the corrosion allowance and design temperature. Carbon steel serves ambient and moderate duty; 304 and 316L resist general corrosion; 316Ti or duplex 2205 resist chloride and stress corrosion; Hastelloy C-276 resists strongly reducing acid. Where the minimum design metal temperature sits below the material nil-ductility transition, impact testing (Charpy) is required, typically at -20 to -46 degrees C. Post-weld heat treatment at 595 to 620 degrees C relieves residual stress and restores toughness in thick carbon and low-alloy sections.
• Examination, Testing and Documentation: Welds are qualified to ASME IX and the finished vessel is examined to the level chosen in design: radiography of 2 to 100 percent of seams, supplemented by ultrasonic, magnetic particle and liquid-penetrant inspection of welds and repairs. A hydrostatic test at 1.3 times design pressure confirms the pressure boundary, followed by a pneumatic test where liquid is impractical. The manufacturer assembles the U-1A data report, material test certificates, welding maps and NDE records into the permanent file the owner keeps for the vessel life.

2. Engineering and Supplier Verification

Four checks separate a compliant ASME reactor supplier from a drawing-only shop:

• Authorizations and the Quality System: Confirm the ASME U-stamp certificate and scope, the National Board R-stamp where repairs are offered, and that the quality control manual is current and audited. Ask for the certificate number and verify it against the ASME or National Board registry rather than accepting a logo on a drawing. A manufacturer without a live U-stamp cannot lawfully apply the stamp, and any vessel offered with an expired or photocopied stamp should be rejected outright before any deposit is paid.
• Material Traceability and Mill Certs: Every plate, forging and tube must carry a material test certificate to EN 10204 3.1 or 3.2, with heat numbers traced to the vessel through welding maps and the U-1A report. Require impact values where low-temperature service is specified, and ferrite reporting for duplex and cast austenitic grades. Loss of traceability is the most common reason a vessel fails a pre-service audit, and it cannot be reconstructed after fabrication, so it must be proven at material receipt.
• Welding Procedure and NDE Capability: Request the welding procedure specifications and procedure qualification records for the actual material and thickness, plus welder performance qualifications. Verify NDE personnel are ASNT Level II or equivalent and that radiography or ultrasonics is performed to the agreed extent. For corrosive or high-pressure service require 100 percent radiography of longitudinal and circumferential seams and a documented repair limit, because repeated weld repairs degrade toughness and widen the heat-affected zone.
• Hydrostatic Test and Delivery File: Factory acceptance should be witnessed or documented at 1.3 times design pressure with vessel stress below yield, held long enough to inspect every seam. The delivery package must include the U-1A data report, as-built drawings, NDE reports, PWHT records, the hydrostatic test report and the operating manual. A supplier unable to produce this file completely is a liability regardless of price, because the vessel cannot be commissioned or insured without it.

ASME and European Reactor Construction Codes Comparison

Frequently Asked Questions (FAQ)

Q: What is the difference between ASME VIII Div 1 and Div 2?

A: Div 1 is the general construction rule set using simplified formulae and conservative safety factors, suitable for the majority of vessels up to roughly 20 MPa and moderate size, and is fast to apply and inspect. Div 2 (alternative rules) permits design-by-analysis with finite element methods and allows lower safety margins, reducing wall thickness and weight by about 10 to 20 percent on large or complex reactors, but it requires stricter material specifications, detailed stress reports and a tighter quality system. The selection is an economic and engineering trade: Div 1 for conventional vessels, Div 2 when weight, size or cyclic loading make rule-based design inefficient or non-conservative.

Q: Why is the U-stamp important when buying a reactor from China?

A: The U-stamp is the legal mark of ASME authorization, granted only after ASME and the National Board audit the manufacturer quality system, welding procedures and inspection staff. A U-stamp means the vessel was built, examined and documented to a recognized standard most end users, insurers and authorities accept without re-justification. Buying from a shop without a live U-stamp means the item is a pressure vessel in form only, not in code compliance, and it may be rejected at the plant gate, fail insurance or create a safety liability. Always verify the stamp number against the ASME registry before purchase.

Q: What materials are used for ASME reactors and how is corrosion handled?

A: Carbon steel covers ambient and mildly corrosive duty; 304 and 316L resist general chemical corrosion; 316Ti and duplex 2205 resist chloride and stress-corrosion cracking; Hastelloy C-276 resists strongly reducing acids. Corrosion is handled by selecting the alloy for the service, adding a corrosion allowance of 1.5 to 3 mm where loss is expected, controlling the minimum design metal temperature with impact testing, and specifying post-weld heat treatment to restore toughness. For severely corrosive streams, internal cladding in 316L or Hastelloy over a carbon-steel shell gives chemistry resistance at a fraction of the solid-alloy cost.

Q: What should a buyer verify before accepting an ASME reactor?

A: Four checks. Authorization: confirm the current ASME U-stamp and scope against the registry. Materials: require EN 10204 3.1 or 3.2 mill certificates with heat numbers traced through the vessel. Welding and NDE: review the welding procedure specifications, procedure qualification records and the agreed radiographic or ultrasonic extent, with 100 percent seam examination for corrosive or high-pressure service. Documentation: the delivered file must contain the U-1A data report, as-built drawings, NDE reports, PWHT records, the hydrostatic test report at 1.3 times design pressure and the operating manual. Treat any missing item as a reason to withhold final payment.
