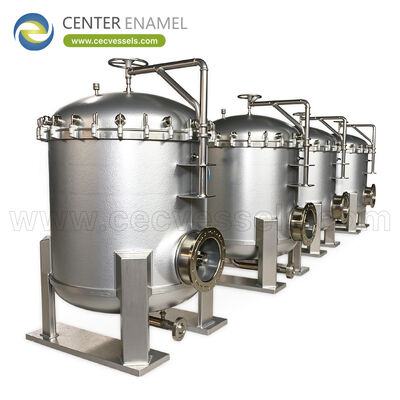

What Is a GMP Reactor? Design Principles, Standards & Applications
Answering the core question: What is a GMP reactor, and what design and compliance requirements distinguish it from standard chemical reactors? A GMP reactor is a pharmaceutical-grade pressure vessel designed, fabricated, and validated to comply with Good Manufacturing Practice (GMP) regulations including 21 CFR Part 210/211 (US FDA), ICH Q7 (API manufacturing), ASME-BPE (bioprocessing equipment), and EU GMP Annex 1 (sterile manufacturing). Key differentiators include electropolished internal surfaces with roughness Ra <0.4 microns, clean-in-place (CIP) and sterilize-in-place (SIP) systems validated at 121C for 15-30 minutes, hygienic clamp-type connections (ASME-BPE), and electronic batch recording compliant with 21 CFR Part 11 (ALCOA+ data integrity principles). GMP reactors are used in API synthesis, sterile injectable manufacturing, vaccine production, and cell therapy processing.
1. Core Design Principles of GMP Reactors
GMP reactor design integrates five regulatory-driven engineering principles:
- Hygienic Design and Surface Finish Internal surfaces are electropolished to achieve roughness values of Ra <0.4 microns (ASME-BPE grade SF5 for product-contact surfaces) and Ra <1.0 microns for non-contact wetted surfaces. Electropolishing removes the amorphous layer and chromium-enriched surface, creating a passive chromium-oxide film that resists corrosion, rouging, and biofilm formation. All welds are 100% inspected by borescope, with full penetration and no crevices or dead legs exceeding 3 times the pipe diameter (L/D <3 per ASME-BPE).
- Clean-in-Place (CIP) and Sterilize-in-place (SIP) Integration Spray balls or rotating jets provide CIP coverage of >95% of internal surfaces with cleaning solutions (0.1-2.0 M NaOH at 60-80C, followed by acid rinse and WFI rinse). SIP cycles use clean steam at 121-134C for 15-30 minutes to achieve a sterility assurance level (SAL) of 10^-6. Validation requires biological indicators (Geobacillus stearothermophilus) demonstrating >6-log reduction.
- Data Integrity and Electronic Batch Records 21 CFR Part 11 compliance mandates audit trails, electronic signatures, and ALCOA+ principles (Attributable, Legible, Contemporaneous, Original, Accurate, plus Complete, Consistent, Enduring, Available). GAMP 5 validation framework categorizes software (GAMP Category 5: customized), requiring IQ/OQ/PQ qualification protocols with traceability matrices linking user requirements to test evidence.
2. Major Types of GMP Reactors
GMP reactors are classified by their process application and containment level:
- API Synthesis GMP Reactor Multi-purpose stainless steel (316L) or Hastelloy C-276 reactors (50-10,000 L) for non-sterile active pharmaceutical ingredient synthesis. Features include glass-lined or alloy construction, multi-stage temperature profiles (-20 to 200C), ICH Q7 compliance for API quality, and validated CIP systems. Magnetic drive agitators with single mechanical seals eliminate shaft seal contamination risk.
- Sterile Injectable Manufacturing Reactor Classified for ISO 5 (Grade A) aseptic processing environments per EU GMP Annex 1. These reactors (50-2,000 L) feature double mechanical seals with steam barrier, sterile transfer connections (SAS or RTP rapid transfer ports), 0.22-micron sterilizing-grade vent filters, and closed-system design. Endotoxin control requires WFI (Water for Injection) with endotoxin <0.25 EU/mL and conductivity <1.1 microS/cm at 25C.
- Single-Use (Disposable) GMP Bioreactor Gamma-irradiated (25-50 kGy) polyethylene or EVA bags installed in stainless steel support vessels (50-2,000 L). These eliminate CIP/SIP validation and cross-contamination risk, reduce changeover time from days to hours, and are validated per USP <665> for extractables and leachables. Used in cell therapy (CAR-T), vaccine production, and clinical-trial manufacturing where product changeover is frequent.
GMP Reactor Types Comparison Matrix
| GMP Reactor Type | Regulatory Standard | Key Design Features | Primary Application |
|---|---|---|---|
| API Synthesis | ICH Q7, 21 CFR 210/211 | 316L/Hastelloy, Ra <0.4 microns, CIP, magnetic drive, 50-10,000 L | Non-sterile API and intermediate synthesis in multi-product facilities |
| Sterile Injectable | EU GMP Annex 1, 21 CFR 211 | ISO 5 aseptic, double seal + steam barrier, 0.22-micron vent filter, endotoxin <0.25 EU/mL | Sterile injectables, vaccines, biologics fill-finish and formulation |
| Single-Use Bioreactor | USP <665>, <1031>, ICH Q7 | Disposable bags, gamma 25-50 kGy, no CIP/SIP, 50-2,000 L, changeover in hours | Cell therapy (CAR-T), clinical trial, and flexible multi-product manufacturing |
Frequently Asked Questions (FAQ)
Q: What surface finish is required for GMP reactor internal surfaces?
A: ASME-BPE grade SF5 specifies electropolished surfaces with roughness Ra <0.4 microns for product-contact surfaces. This is significantly smoother than standard chemical reactor finishes (typically Ra <1.6 microns). Electropolishing creates a passive chromium-oxide layer that resists corrosion, rouging, and biofilm formation, and eliminates surface crevices where microorganisms could harbor during CIP/SIP cycles.
Q: What is the difference between CIP and SIP in GMP reactor systems?
A: CIP (Clean-in-Place) uses chemical solutions (typically 0.1-2.0 M NaOH at 60-80C followed by acid and WFI rinse) with spray ball coverage >95% to remove product residues and biofilms without disassembly. SIP (Sterilize-in-Place) uses clean saturated steam at 121-134C for 15-30 minutes to achieve sterility assurance level (SAL) of 10^-6, validated by biological indicators (Geobacillus stearothermophilus spores) demonstrating >6-log reduction.
Q: What are ALCOA+ data integrity principles in GMP reactor electronic batch records?
A: ALCOA+ expands the original ALCOA (Attributable, Legible, Contemporaneous, Original, Accurate) with Complete, Consistent, Enduring, and Available. This means all data must be attributable to a specific individual, recorded contemporaneously with the event, retained in its original form without alteration, and available for review throughout the data lifecycle. 21 CFR Part 11 requires audit trails, electronic signatures, and time-stamped records meeting these principles.
Q: How are single-use GMP bioreactors validated for extractables and leachables?
A: Single-use bioreactor bags are validated per USP <665> (plastic materials and systems used in biopharmaceutical manufacturing) and USP <1031>. Extractables testing uses model solvents (50% ethanol, 0.1 M NaOH, 0.1 M HCl, WFI) at exaggerated temperature and contact time to identify all compounds that could migrate from the plastic. Leachables studies then quantify actual migration under process conditions, comparing results against ICH Q3D elemental impurity limits and safety thresholds.
