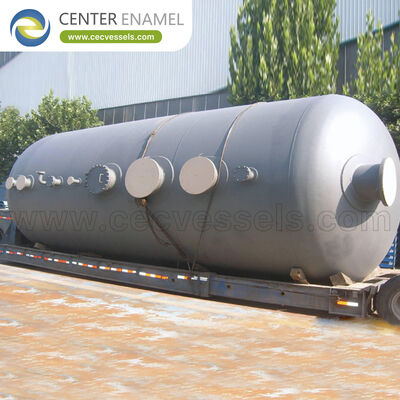

Answering the core question: What does a petrochemical conversion reactor from Shijiazhuang Zhengzhong Technology Co., Ltd provide to olefin and aromatics producers? Shijiazhuang Zhengzhong Technology Co., Ltd (Center Enamel) supplies petrochemical conversion reactors that turn lower-value feeds into higher-value olefins and polymers, including fluid catalytic cracking risers, catalytic dehydrogenation reactors for propylene and isobutylene, and polymerization vessels. Duties range from 500 to 550°C in catalytic cracking to 600 to 680°C in dehydrogenation and 50 to 110°C in polymerization, built in refractory-lined carbon steel or 316L and Hastelloy, with design centered on catalyst handling, coke management and tight temperature control.

1. Petrochemical Conversion Routes

Four routes convert petrochemical intermediates, each with a distinct reactor form:

• Fluid Catalytic Cracking: Heavy gas oil is cracked to gasoline and olefins at 500 to 550°C by contacting it with hot catalyst in a riser reactor, with catalyst circulation measured in tonnes per second between the riser and the regenerator. The reactor is a refractory-lined vessel with a fast riser and a disengager that separates spent catalyst from product vapor; the limiting factor is catalyst circulation and heat balance, because the endothermic crack and the coke burn in the regenerator must stay matched.
• Catalytic Dehydrogenation: Propane or isobutane is converted to propylene or isobutylene at 600 to 680°C over a chromia or platinum catalyst, a strongly endothermic reaction run with steam to suppress coke. The reactor is a multi-bed fixed bed with inter-bed reheating or a radial-flow vessel with very low pressure drop, built to resist high-temperature oxidation and the catalyst abrasion. Conversion per pass is 30 to 60 percent and selectivity to the olefin 85 to 95 percent, so the unreacted feed is recycled.
• Olefin Metathesis and Dimerization: Light olefins are reshuffled, for example ethylene plus butene to propylene, over a tungsten or rhenium catalyst at 20 to 80°C and low pressure. The reactor is a fixed bed closer to a fine-chemical vessel than to a cracker, with tight temperature control and catalyst guard beds against feed poisons. It is the most temperate of the conversion routes but depends on feed purity, so the front-end pretreatment is as critical as the reactor itself.
• Polymerization Vessels: Olefins are built into polymers such as polyethylene and polypropylene at 50 to 110°C and 2 to 5 MPa in loop reactors, fluidized beds or stirred tanks, with conversion 90 to 99 percent per pass. The reactor must handle a strongly exothermic, viscosity-rising reaction and remove heat at the rate it is generated, so the defining design feature is heat transfer surface and mixing in a thickening medium rather than high temperature or pressure.

2. Engineering Conversion Reactors

Conversion reactors live at the edge of temperature and catalyst life. Four engineering responses apply:

• Refractory Lining and Hot Shell: Cracking and dehydrogenation reactors run at 500 to 680°C, so the shell is protected by a refractory lining and kept below the creep range, with the lining thickness and anchor design set by the duty. The shell material is chosen for the cold-face temperature, not the gas temperature, and expansion joints absorb the growth between hot and cold parts. Lining failure exposes the shell to the full gas temperature and ends the run, so attachment and inspection access are designed in.
• Coke Management: Cracking and dehydrogenation deposit coke that deactivates catalyst and insulates surfaces. The design provides for continuous or cyclic coke burn in a regenerator, for on-line catalyst circulation in FCC, and for steam dilution and low pressure drop in dehydrogenation to slow coking. The reactor internals resist abrasion from circulating catalyst, and the disengager protects downstream equipment from catalyst carryover that would otherwise erode compressors.
• Catalyst Handling and Distribution: Fixed-bed conversion reactors need uniform vapor distribution across the bed to avoid hot spots that destroy selectivity, so the inlet device and the bed support are specified with the same care as the shell. In fluidized and circulating systems the reactor must keep the catalyst in the right regime, with riser geometry and disengager design controlling contact time to within the window that maximizes the desired product.
• Temperature Uniformity and Control: Selectivity in conversion is set by temperature, so the reactor holds a narrow profile: dehydrogenation uses inter-bed reheat to restore the falling temperature, polymerization uses jacket or loop cooling to remove the exotherm, and metathesis uses tight control of a low-temperature bed. A deviation of a few degrees shifts yield by several points, which is why conversion reactors are instrumented and controlled more tightly than most pressure vessels.

Petrochemical Conversion Reactor Comparison Matrix

Frequently Asked Questions (FAQ)

Q: What is the difference between a catalytic cracking reactor and a steam cracker?

A: Fluid catalytic cracking cracks heavy gas oil at 500 to 550°C by contact with a hot solid catalyst in a riser, regenerating the catalyst by burning coke, and is a reactor-plus-regenerator system handling liquids and solids. Steam cracking uses no catalyst: hydrocarbon feed passes through a fired coil at 800 to 900°C for fractions of a second, so the reactor is a furnace coil, not a vessel, and the product is quenched almost instantly to stop secondary cracking. FCC makes gasoline and propylene from heavy feed; steam cracking makes ethylene and propylene from light feed. The equipment, the phase and the time scale are entirely different.

Q: Why is temperature control so critical in dehydrogenation?

A: Dehydrogenation is strongly endothermic and equilibrium-limited, so conversion rises with temperature but selectivity to the olefin falls if the bed runs too hot or too cold. The reaction is therefore run with inter-bed reheat to restore the falling temperature and with steam dilution to suppress coke, holding each bed in a narrow window of 600 to 680°C. A few degrees off shifts yield by several percentage points and accelerates catalyst deactivation, which is why dehydrogenation reactors are among the most tightly instrumented and controlled vessels in the plant.

Q: How is coke handled in petrochemical conversion reactors?

A: Coke is an unavoidable byproduct that deactivates catalyst and insulates surfaces. Fluid catalytic cracking burns it continuously in a separate regenerator and circulates catalyst between riser and regenerator by the tonne per second. Dehydrogenation slows coking with steam dilution and low pressure drop and accepts periodic decoking. Fixed-bed processes use guard beds and controlled feeds. In every case the reactor internals resist catalyst abrasion and the disengager protects downstream equipment, because catalyst or coke carryover erodes compressors and shortens the run.

Q: What should a buyer verify when sourcing a conversion reactor?

A: Four checks. Thermal design: confirm the refractory lining thickness and anchor design match the duty, with the shell kept below its creep temperature. Coke and catalyst: review the disengager, the distributor and the abrasion provisions, since selectivity depends on them. Temperature control: confirm the instrumentation and, for dehydrogenation, the inter-bed reheat arrangement. Documentation: the delivered file must include the lining specification, the material certificates for the hot-zone alloy, the welding procedure qualifications, the hydrostatic test report and the as-built internals drawing, with the heat balance basis stated for catalytic cracking.
