What Is a Reactor Vessel? Design, Codes & Industrial Applications

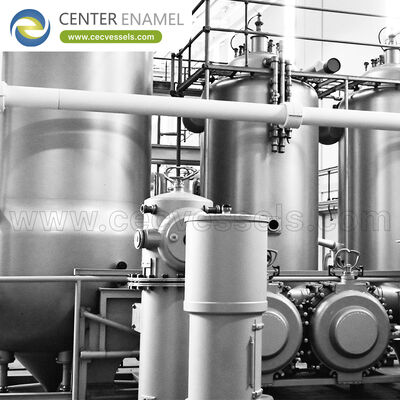

Answering the core question: What is a reactor vessel, and how does it differ from a standard pressure vessel? A reactor vessel is an ASME Boiler and Pressure Vessel Code (BPVC) Section VIII-compliant pressure container specifically engineered to safely contain and sustain chemical reactions under controlled temperature, pressure, and agitation conditions. Unlike a simple storage vessel, a reactor vessel integrates process nozzles for reactant feed and product discharge, agitator mounting for mixing, internal coils or external jackets for heat transfer, and instrumentation ports for temperature, pressure, and level measurement—all designed to maintain structural integrity under cyclic thermal and pressure loading at design pressures from 0.1 to 20 MPa and temperatures from -196 to +450 degrees C.
1. Core Design Principles of Reactor Vessels
- ASME Section VIII Compliance: Reactor vessels are designed, fabricated, inspected, and stamped per ASME BPVC Section VIII Division 1 or 2; the design must satisfy the Maximum Allowable Working Pressure (MAWP) at the coincident design temperature, with wall thickness calculated as t = (P*R)/(S*E - 0.6*P) per the code formula, incorporating weld joint efficiency E and corrosion allowance.
- Head and Shell Geometry: Standard reactor vessels use 2:1 elliptical heads for pressures up to 10 MPa (most cost-effective), torispherical (Kloepper) heads for moderate pressures, and hemispherical heads for high-pressure applications above 10 MPa where the head thickness approaches 60-80% of the shell thickness, reducing stress concentration at the shell-to-head junction.
- Nozzle Loading and Reinforcement: Process nozzles for feed, discharge, instrumentation, and venting create openings that weaken the vessel wall; reinforcement is provided per ASME UG-37 using the area-replacement method, ensuring that the removed metal area is compensated by excess wall thickness in the shell, nozzle neck, and reinforcing pad within the reinforcement limits.
2. Major Types of Reactor Vessels
- Jacketed Stirred Reactor Vessel: Features a full or half-pipe jacket welded to the external shell surface for heat transfer fluid circulation; the most common configuration for batch chemical and pharmaceutical processing, with vessel volumes of 100-20,000 L and heat transfer areas of 1-30 m^2 sized to remove exothermic heat duties of 10-100 kW/m^3.
- Cladded Reactor Vessel: Constructed with a carbon steel base shell overlaid with 3-5 mm of stainless steel, Inconel, or Hastelloy cladding via weld overlay or explosive bonding; provides the strength of carbon steel at 40-60% lower cost than solid alloy construction while delivering the corrosion resistance required for acidic, chlorinated, or sulfurous process environments.
- Thick-Wall High-Pressure Vessel: Designed for hydrotreating, hydrocracking, and high-pressure polymerization at 10-30 MPa; uses forged ring construction with wall thicknesses of 50-300 mm, multilayer (concentric shell) or monobloc design, and requires careful consideration of fatigue analysis for cyclic pressure loading per ASME Section VIII Division 3 for pressures above 70 MPa.
Reactor Vessel Types Comparison Matrix
| Vessel Type | Head Geometry | Design Pressure Range | Fabrication Standard |
|---|---|---|---|
| Jacketed Stirred Vessel | 2:1 Elliptical | 0.1 - 6 MPa | ASME Sec. VIII Div. 1, -20 to 300 C |
| Cladded Vessel | 2:1 Elliptical or Torispherical | 0.1 - 10 MPa | ASME Sec. VIII Div. 1 + cladding spec |
| Thick-Wall HP Vessel | Hemispherical | 10 - 30+ MPa | ASME Sec. VIII Div. 2 or Div. 3 |
Frequently Asked Questions (FAQ)
Q: What is the primary difference between a reactor vessel and a storage vessel?
A: A reactor vessel is engineered to sustain chemical reactions under dynamic thermal and pressure loading, with integrated nozzles, agitator mounts, heat transfer surfaces, and instrumentation ports, whereas a storage vessel simply holds material at near-static conditions with minimal process integration.
Q: How is the wall thickness of a reactor vessel calculated?
A: Per ASME BPVC Section VIII, the required wall thickness is t = (P*R)/(S*E - 0.6*P) + corrosion allowance, where P is design pressure, R is shell radius, S is allowable stress at design temperature, and E is weld joint efficiency (1.0 for full radiography, 0.85 for spot, 0.70 for no examination).
Q: What is hydrostatic testing and why is it required?
A: Hydrostatic testing subjects the completed vessel to internal pressure at 1.3 times the MAWP (Division 1) using water as the test medium, verifying structural integrity and leak-tightness before the vessel is placed in service; it is mandatory per ASME UG-99 and documented on the manufacturer's data report.
Q: How is corrosion allowance determined for reactor vessels?
A: Corrosion allowance is specified based on the process fluid's corrosion rate (mm/year) multiplied by the design life (typically 20 years), yielding allowances of 1.5-6 mm for carbon steel in moderately corrosive service, and 0-1.5 mm for stainless or alloy construction where corrosion rates are below 0.05 mm/year.
