What Are Custom Bioreactors? Engineering, Design Envelope & Delivery

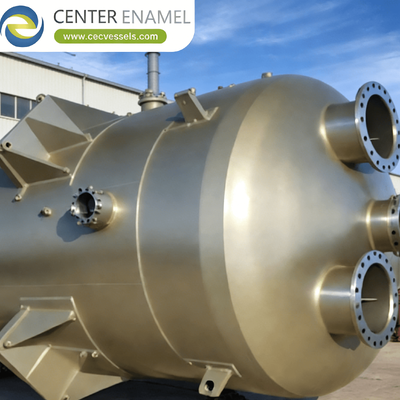

 What is a custom bioreactor, and when does a process need one? A custom bioreactor is a cultivation vessel engineered to a specific user requirement specification rather than selected from a standard catalogue, with every design variable set by the process instead of by the manufacturer's default. The ten variables that define the envelope are working volume, aspect ratio, impeller type and count, sparger design, baffle configuration, heat transfer surface, design pressure and temperature, material and surface finish, instrumentation and control level, and nozzle schedule. Engineering a custom vessel takes 6-10 weeks to an approved design, and fabrication, assembly, and factory acceptance testing bring total delivery to 5-9 months.

1. The Design Variables That Drive Customization

Customization is not decoration. Four variables account for most of the performance difference between a vessel that meets titer targets and one that does not:

• Geometry and Impeller Train: Aspect ratio is the first decision. A 1.5:1 to 2:1 vessel favours gas-liquid mass transfer because it spreads the sparge zone and increases residence time of bubbles, while a 3:1 to 4:1 vessel favours heat transfer and plug-flow-like blending for viscous or filamentous broths. Impeller selection follows: a radial Rushton turbine has a power number of about 5.0 and excels at gas dispersion, an axial hydrofoil has a power number of 0.3-0.8 and delivers bulk blending at low shear, and a helical ribbon handles viscosities above 10,000 cP where turbulent mixing is impossible. Most custom vessels combine a lower radial impeller with one or two upper axial impellers.
• Gas Dispersion and Sparger Design: Oxygen delivery is usually the binding constraint. A simple ring sparger with 1-2 mm holes gives kLa of 30-80 h-1 at 0.5-1.0 vvm, while a sintered micro-sparger producing 0.5-50 µm bubbles raises kLa to 100-250 h-1 at the same gas flow because interfacial area increases sharply as bubble diameter falls. The trade-off is fouling: micro-spargers clog with cells and antifoam, so most production vessels use a ring sparger for robustness and achieve kLa through higher power input and oxygen enrichment up to 40% O2 in the feed gas.
• Heat Transfer Capacity: Metabolic heat in a dense aerobic culture reaches 15-40 kW per cubic metre of working volume, and polymerization or neutralization reactions can exceed that. Heat transfer is Q = U·A·LMTD, so the customizer must either increase area or increase U. A plain jacket gives U of 300-600 W/m2·K, a half-pipe coil reaches 600-900, and a dimple jacket with turbulent flow reaches 800-1,200. Where jacket area is insufficient, the design adds an external circulation loop through a shell-and-tube or plate heat exchanger, which also improves blending in tall vessels.
• Pressure, Material and Finish: Design pressure is set by the sterilization and containment duty: 0.35 MPa for standard SIP at 121°C, up to 1.0 MPa or more for high-temperature processes, thermophilic cultures, or solvent-based chemistry above atmospheric boiling point. Material follows the corrosion envelope: 316L for most bioprocess duty, 904L or duplex 2205 for chloride-bearing broths above about 500 ppm, and titanium Grade 2 or Hastelloy C-276 for aggressive halide service. Surface finish is specified as mechanical polish to Ra 0.8 µm for industrial service or electropolished Ra 0.4 µm for GMP.

2. From User Requirement Specification to Validated Delivery

A well-run custom project passes through four gates. Skipping any of them is where cost and schedule overruns originate:

• User Requirement Specification: The URS is the control document for the whole project. It states product and organism, working volume and turndown, required kLa at the worst-case broth viscosity, cycle time and batch profile, CIP and SIP method, utility availability and quality, materials and finish, instrumentation and control architecture, applicable codes and standards, and the documentation and qualification deliverables. It must distinguish mandatory requirements from preferences, because every mandatory line has a cost and every vague line becomes a change order.
• Design Qualification and Engineering: Design qualification demonstrates that the proposed design meets each URS line, supported by calculations: agitator power and torque from the impeller power number at the specified Reynolds number, kLa prediction from a correlation such as van't Riet, heat transfer balance against peak heat load, and pressure boundary calculation to the applicable code. Deliverables are general arrangement drawings, P&IDs, a nozzle schedule, a weld map, and a control philosophy document. This is the last point at which design changes are cheap.
• Fabrication and Factory Acceptance: Fabrication follows the approved drawings with hold points for material verification, weld inspection, dimensional check, and hydrotest. Factory acceptance testing then demonstrates agitator run-in with vibration and temperature measurement, control loop checks with simulated signals at 0, 50, and 100% of range, alarm and interlock verification, CIP coverage testing with riboflavin and ultraviolet inspection, and a sterile hold at 121°C for 30 minutes with temperature uniformity within ±1°C across all monitoring points.
• Delivery, Installation and Qualification: The vessel ships with protection and documentation, is installed and tied to utilities, then passes through site acceptance testing, installation qualification covering as-built verification and instrument calibration, and operational qualification covering each control function across its operating range. Process performance qualification concludes with three consecutive batches meeting predetermined criteria. Suppliers who provide documentation packages aligned to the owner's validation master plan remove weeks from this phase.

Custom Bioreactor Design Variables Comparison Matrix

Frequently Asked Questions (FAQ)

Q: When is a custom bioreactor worth it over a standard vessel?

A: Custom engineering pays off when one of four conditions applies. First, the organism or chemistry has an unusual oxygen demand or shear sensitivity that standard geometry cannot meet, such as filamentous fungi above 10,000 cP or mammalian cells requiring tip speed below 1.5 m/s. Second, the process runs at pressure above 0.35 MPa or temperature beyond 121°C, which rules out catalogue designs. Third, the broth is corrosive enough to require duplex, titanium, or Hastelloy. Fourth, the installation is constrained by existing building dimensions, existing utility capacities, or a required integration with downstream equipment. If none of these applies, a standard vessel will be cheaper and faster.

Q: How much more does a custom bioreactor cost?

A: Expect a premium of 15-40% over a standard vessel of the same nominal volume for mechanical customization such as non-standard aspect ratio, exotic alloy, high-pressure rating, or a specialized impeller train. Adding full pharmaceutical documentation, electropolished finish, and a complete DQ/IQ/OQ package can take the premium to 50-80%. That premium is usually recovered quickly when the alternative is a vessel that cannot reach target kLa: a 20% titer loss over a five-year campaign is worth far more than the capital difference. Engineering cost itself is typically 8-15% of the equipment value for a genuinely custom design.

Q: What information should I provide to get an accurate custom quotation?

A: Provide eleven items: organism or chemistry and its shear tolerance; target working volume and minimum turndown; required kLa or oxygen uptake rate at the end of batch; broth viscosity and density across the cycle; peak heat load and available cooling water temperature; design pressure and temperature including the sterilization method; CIP and SIP chemistry and cycle; material and surface finish requirements; utility availability including steam, chilled water, compressed air, and electrical supply; applicable codes and standards for the installation jurisdiction; and the required documentation and qualification scope. Missing kLa and viscosity data is the single most common cause of an undersized agitator.

Q: Can an existing vessel be retrofitted instead of buying new?

A: Often yes, and it is worth evaluating before committing to new capital. Common retrofits include replacing a ring sparger with a micro-sparger to raise kLa, changing the impeller train from radial to axial to reduce shear, adding a half-pipe coil or an external heat exchange loop to raise cooling capacity, upgrading the mechanical seal to a double seal with sterile barrier fluid, and modernizing instrumentation and control with new sensors and a PLC platform. The constraints are the existing nozzle schedule, the shell thickness available for cutting new nozzles, and the pressure rating of the original vessel, all of which must be re-verified against the current design code before any modification.
