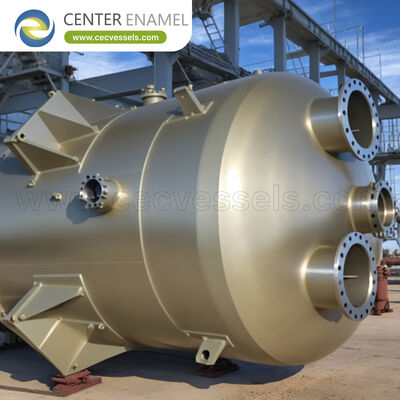

Answering the core question: What does a methanol condenser from Shijiazhuang Zhengzhong Technology Co., Ltd deliver to a methanol processing facility? Shijiazhuang Zhengzhong Technology Co., Ltd (Center Enamel) designs and fabricates shell and tube, plate, and air-cooled condensers for methanol distillation, synthesis loop product cooling, and vapour recovery, with thermal duties from 100 kW to 15 MW. Methanol condenses at 64.7°C at atmospheric pressure with a latent heat of 1,100 kJ/kg, which is higher per kilogram than most organic solvents and sets the duty. Because methanol has a flash point of 11°C and a flammable range of 6.0 to 36% by volume in air, every condenser is engineered to ATEX or IECEx requirements with certified equipment, earthing and bonding, and inerting provisions.

1. Thermal Design of a Methanol Condenser

Methanol duty is thermally straightforward and safety-critical. Three design elements determine both performance and compliance:

• Duty and Area Sizing: Condenser duty is Q = m·lambda plus subcooling, with lambda of 1,100 kJ/kg at the atmospheric boiling point. A distillation column producing 5,000 kg/h of methanol vapour therefore carries about 1.53 MW of condensation duty, plus 100-250 kW to subcool the distillate 10-20°C below its bubble point so that it does not flash in the receiver and generate vapour that the vent system must handle. Area follows A = Q/(U·LMTD·F), with U of 600-1,300 W/m2·K for a water-cooled shell and tube unit, an LMTD based on a condensing temperature of 64.7°C against cooling water rising from 28 to 38°C, and the appropriate TEMA correction factor for the selected shell and tube configuration.
• Approach Temperature and Vapour Loss: The approach, the difference between condensing temperature and cooling water outlet, trades capital against product loss. A tight approach of 5°C minimises the methanol vapour leaving with the non-condensable vent, which matters both economically and because methanol is toxic with an exposure limit of 200 ppm. A wider approach of 15°C cuts exchanger area by 30-40% but increases vent losses substantially. The correct choice usually includes a vent condenser chilled to 5-15°C downstream of the main condenser, which recovers most of the methanol from the vent stream at modest additional cost and brings the vent well within permit limits.
• Non-Condensable Management: Synthesis loop gas, dissolved air in feed, and leakage under vacuum all introduce non-condensables that blanket the tube surface. Because methanol condensation is already limited by the vapour-side coefficient, even a few percent of non-condensable by volume can reduce effective U by 30-50%. Design must therefore include a vent at the coldest point of the shell, sized piping routed to a scrubber or recovery unit rather than to atmosphere, and a baffle arrangement that sweeps gas toward the vent rather than trapping it. Monitoring the approach temperature over time is the simplest diagnostic: a rising approach at constant duty indicates non-condensable accumulation or fouling.

2. Safety and Materials in Flammable Methanol Service

Methanol presents a distinctive hazard profile: it burns with an almost invisible flame, it is toxic by skin absorption and inhalation, and it is fully miscible with water so it cannot be contained by a water seal. Four requirements follow:

• Area Classification and Electrical Compliance: With a flash point of 11°C and a flammable range of 6.0-36% by volume, methanol vapour creates a Zone 1 or Zone 2 hazardous area around any vent, sample point, or potential leak source. Equipment in those zones must carry ATEX or IECEx certification appropriate to the zone and temperature class, with methanol in temperature class T2 given its auto-ignition temperature of 464°C. All conductive parts, including the exchanger shell, piping, supports, and instrument housings, must be bonded and earthed to a resistance below 10 ohms to prevent static discharge, and non-conductive coatings and gasket materials must be selected to avoid charge accumulation.
• Inerting and Vent Treatment: Where the condenser operates under vacuum or where the process vent can fall inside the flammable range, nitrogen inerting holds the oxygen concentration below the limiting oxygen concentration, typically about 8-10% by volume for methanol, with continuous oxygen analyser monitoring and an interlock that adds nitrogen on high reading. Vent streams are routed to a water scrubber, since methanol is infinitely miscible with water and absorbs readily, or to an activated carbon adsorber for low-concentration streams. Deliberate atmospheric venting of methanol vapour is not acceptable in most jurisdictions and creates both a permit violation and a fire and toxicity hazard.
• Material Selection: Methanol is not corrosive to carbon steel in anhydrous service, so shell and tube condensers on dry methanol vapour are frequently built with carbon steel shells and tubes, which is the most economical choice. Where water is present, and particularly where the stream is a methanol-water mixture from distillation, carbon steel suffers general corrosion and iron contamination, so 304 or 316L is specified for tubes and channels. Copper, brass, and copper alloys must be avoided entirely because methanol containing trace oxygen and water attacks copper, and dissolved copper catalyses unwanted oxidation. Gaskets should be PTFE or graphite-based, since methanol degrades many elastomers.
• Fire Protection and Layout: Because methanol burns with a nearly invisible flame in daylight, fire detection must rely on thermal, ultraviolet, or infrared detectors rather than on visual observation. Layout should place methanol condensers away from ignition sources, provide drainage that runs to a contained collection point rather than to an open sewer, since a methanol-water fire is miscible and will spread with water, and include fixed water spray or foam provisions where quantities justify it. Storage and sample points should use closed-loop sampling to protect operators, given the toxicity and skin absorption hazard.

Methanol Condenser Configurations Comparison Matrix

Frequently Asked Questions (FAQ)

Q: How much condenser area is needed for a methanol distillation column?

A: Calculate in four steps. First, the duty: Q = m·lambda, so for 5,000 kg/h of methanol at 1,100 kJ/kg the condensation duty is 1,528 kW; add 150-250 kW for subcooling to give roughly 1.7 MW. Second, the LMTD: with methanol condensing at 64.7°C and cooling water entering at 28°C and leaving at 38°C, the LMTD is about 30°C. Third, the coefficient: a water-cooled shell and tube unit with vapour on the shell side gives U of 800-1,200 W/m2·K in clean service; apply a fouling factor of 0.0001-0.0002 m2·K/W on the water side and use a design U of 700-900. Fourth, the area: with U of 800 and LMTD of 30, A is approximately 71 m2, then divide by the TEMA correction factor for the chosen configuration, typically 0.85-1.0 for a single-pass condensing exchanger, giving a specified area of about 80 m2.

Q: Why is methanol condensation more demanding than it first appears?

A: Three properties combine to make it demanding. Its latent heat of 1,100 kJ/kg is high for an organic solvent, so the duty per kilogram of vapour is large and the exchanger must be generously sized. Its low boiling point of 64.7°C means the driving temperature difference against typical cooling water at 30-35°C is small, often only 25-35°C, which further increases area. And its flammability and toxicity mean that any vapour escaping condensation is both a safety hazard and a permit issue, so designs routinely add a chilled vent condenser that would not be needed for a less hazardous solvent. The practical result is a condenser train rather than a single exchanger.

Q: Can carbon steel be used for a methanol condenser?

A: Yes, in anhydrous service. Dry methanol does not corrode carbon steel, and carbon steel shells with carbon steel tubes are standard for synthesis loop product condensers where the stream is essentially water-free. Once water is present, which is the case throughout a methanol-water distillation train, carbon steel corrodes and contaminates the product with iron, so tubes and channels should be 304 or 316L stainless steel. Copper and its alloys must never be used with methanol: the combination of methanol, trace oxygen, and water attacks copper, and dissolved copper then catalyses oxidation to formaldehyde and formic acid. Gasket material also matters, since methanol swells and degrades many common elastomers; PTFE, graphite, or a specifically rated fluoroelastomer should be specified.

Q: What vent treatment is required for a methanol condenser?

A: Methanol should not be vented to atmosphere. Because it is infinitely miscible with water, the most common and effective treatment is a water scrubber, in which the vent stream is contacted counter-currently with water in a packed column, reducing methanol concentration by 90-99% and producing a dilute methanol solution that is returned to the process or sent to wastewater treatment. For low-concentration or intermittent vents, an activated carbon adsorber is used, with periodic replacement or steam regeneration. Where the vent is small and continuous, routing it to a thermal oxidiser or to the plant flare gives complete destruction. The chosen method must be matched to the vent flow rate and concentration and documented for the environmental permit, and the condensate recovery is usually worth enough to pay for the equipment.
