What Is an Acrylic Reactor: Polymerization Chemistry, Design and Control

What Is an Acrylic Reactor: Polymerization Chemistry, Design and Control

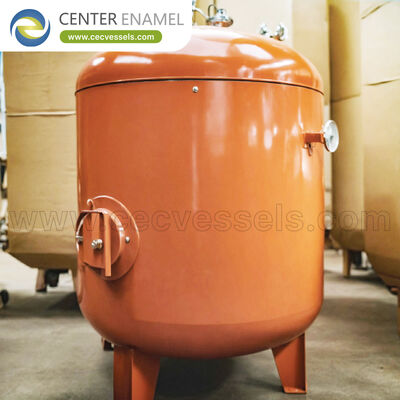

Answering the core question: What is an acrylic reactor? An acrylic reactor is a stirred vessel in which acrylic and methacrylic monomers such as acrylic acid, butyl acrylate, methyl methacrylate and styrene are polymerised by a free radical mechanism into acrylic resins, emulsions or elastomers. The reaction is strongly exothermic, releasing 60-80 kJ per mole of monomer, which is roughly 700-1,100 kJ per kilogram of monomer, and this heat must be removed continuously or the batch will accelerate. Three routes dominate. Emulsion polymerization in water runs at 60-90°C to a solids content of 40-60% and produces latex for coatings, adhesives and textiles. Solution polymerization in solvent runs at 80-140°C under reflux and gives resins for industrial coatings. Bulk or suspension routes run hotter, at 100-180°C. The governing design constraint is the Trommsdorff gel effect: as conversion rises and viscosity increases, termination slows while propagation continues, so the rate and heat release accelerate sharply unless the reactor is designed for it.

1. Polymerization Chemistry That Dictates Reactor Design

Four chemical facts determine the mechanical and control design of every acrylic reactor:

• Free Radical Kinetics and Initiator Choice: Acrylic polymerization proceeds through initiation, propagation and termination, with the rate proportional to the square root of the initiator concentration and to the monomer concentration. Initiators are selected by their decomposition temperature, expressed as a half-life: persulphates such as ammonium or potassium persulphate are used at 60-90°C in emulsion, azo compounds such as AIBN suit 60-80°C in solution, and peroxides such as benzoyl peroxide or tert-butyl perbenzoate cover 90-140°C. Redox pairs, typically persulphate with a bisulphite or a ferrous salt, generate radicals at 30-60°C and allow low-temperature production of high molecular weight polymer. Because the initiator concentration controls both the rate and the molecular weight, and because decomposition is exponentially temperature dependent, the initiator system and the temperature control band must be designed together rather than independently.
• The Trommsdorff Gel Effect: This is the defining hazard of acrylic reactors. At conversion above roughly 30-50%, the growing polymer chains raise the viscosity of the medium so much that the diffusion-controlled termination step between two large radicals slows dramatically, while the small monomer molecule can still diffuse and propagate. Termination falls, the radical concentration rises, and both the rate and the heat release accelerate in a positive feedback loop. Temperature climbs, which accelerates initiator decomposition further. Unless the heat removal system is sized for this peak, the batch runs away, and at worst the reactor must be dumped or the relief device lifts. The design responses are a semi-batch monomer feed that keeps the instantaneous conversion low, a staged initiator addition profile, generous jacket and reflux capacity, and an interlock that automatically stops the feed and applies full cooling on high temperature.
• Molecular Weight Control and Chain Transfer: Product grade is defined primarily by molecular weight, which is controlled by the ratio of propagation to chain transfer and termination. Chain transfer agents, usually mercaptans such as n-dodecyl mercaptan or thioglycolates, are added at 0.05-2% by weight to cap growing chains and lower molecular weight predictably. Because the chain transfer agent is consumed faster than the monomer in batch operation, it is fed along with the monomer to keep the ratio constant and the molecular weight distribution narrow. Molecular weight distribution, expressed as polydispersity index, typically runs 2-5 for free radical acrylics and affects both the mechanical properties and the viscosity of the final product. Higher initiator concentration and higher temperature both lower molecular weight, so controlling temperature within 1-2°C across a batch is what delivers grade consistency.
• Oxygen, Inhibitors and Monomer Stability: Acrylic monomers are stored and handled with a polymerisation inhibitor, most commonly MEHQ at 10-200 ppm, which is only effective in the presence of dissolved oxygen. This creates an operational paradox: oxygen prevents runaway polymerisation in storage but inhibits the intended reaction in the reactor. Plants therefore purge the monomer charge with nitrogen to strip dissolved oxygen before initiating, and the reactor must be inerted throughout, since oxygen ingress during the batch causes an induction period followed by an unpredictable exotherm. Acrylic acid presents a second hazard: above about 90°C it undergoes Michael addition to form a dimer and higher oligomers, which is exothermic and self-accelerating, so bulk acrylic acid must never be heated above about 80-90°C without a polymerisation inhibitor and strict residence time limits.

2. Reactor Configurations and Heat Removal Strategy

Configuration follows the route and the heat removal requirement, which is the true sizing driver:

• Semi-Batch Emulsion Reactor: The standard configuration for waterborne acrylic latex: a jacketed stirred vessel of 5-60 m3 in 316L stainless steel, with a pre-emulsified monomer feed and separate initiator feed streams added over 2-6 hours. Heat is removed by the jacket, by reflux of water and monomer through an overhead condenser, and by the sensible heat of the cold feed itself. Because the monomer is fed rather than charged all at once, the instantaneous unreacted monomer concentration in the particles is limited, which holds the peak heat release within the jacket capacity and simultaneously lets the operator control particle composition and hence the glass transition temperature profile across the particle. Particle size, typically 80-500 nm, is set by the surfactant and initial charge, and the reactor must provide enough shear to keep the latex stable without causing coagulation or grit formation.
• Solution Polymerization Reactor with Reflux: For solvent-borne coating resins and adhesive polymers, the reactor runs at 80-140°C under reflux at atmospheric or slightly elevated pressure. A vertical condenser returns the solvent, and the heat of polymerization is removed as the latent heat of the refluxing solvent, which is an extremely effective and self-regulating cooling mechanism: as the exotherm accelerates, more solvent boils, more heat is removed, and the temperature is held at the boiling point. The reactor must be sized for the vapour load at the peak rate, with a condenser and a decanter to return the solvent phase, and the whole system must be inerted and rated for the flammable solvent. Product is discharged as a 40-70% solution and may be further stripped to raise solids or reduce residual monomer.
• Continuous Reactors: CSTR Cascade, Loop and Tubular: High-volume commodity acrylics move to continuous operation. A cascade of three to six continuous stirred tank reactors in series approximates plug flow and gives a narrow residence time distribution, which matters because residence time spread directly broadens the molecular weight and copolymer composition distributions. Loop reactors, where the contents are circulated through an external shell and tube or plate heat exchanger at high velocity, solve the heat removal problem at high viscosity and are widely used for high-solids and bulk polymerization; the circulation pump and exchanger must be sized for the peak viscosity and for the fouling tendency of the polymer. Tubular and static mixer reactors give the narrowest residence time distribution and the best heat removal per unit volume, and are used for very high rate polymerizations, but they are intolerant of fouling and of any feed upset that could gel the line.
• Heat Removal, Instrumentation and Safety: Whatever the configuration, the heat balance is the design. Peak heat release rate is calculated from the maximum conversion rate under the gel effect, and the jacket, external loop and reflux capacity together must exceed it with margin. Because the viscosity rises through the batch, the jacket side coefficient falls and the wall film thickens, so the design must use the end-of-batch viscosity, not the initial. Instrumentation includes multiple independent temperature sensors, a high-high alarm that stops the monomer and initiator feeds and opens full cooling, and a pressure relief system sized using DIERS methodology for the runaway case, since acrylic polymerization is a gassy and tempering system with a vapour load from the boiling solvent or water. Many plants add a dump tank containing cold water or a quench agent, or an inhibitor injection system, as the final layer of protection.

Acrylic Polymerization Routes Comparison Matrix

Frequently Asked Questions (FAQ)

Q: Why is heat removal the limiting factor in an acrylic reactor?

A: Because the reaction releases 60-80 kJ per mole of monomer, equivalent to roughly 700-1,100 kJ per kilogram, and because the release rate is not constant. The gel effect means that as conversion passes 30-50% and viscosity climbs, termination becomes diffusion limited, the radical population rises, and the rate accelerates. The peak heat release can be two to five times the average, and it occurs at the moment when the jacket side coefficient is at its worst because the batch is most viscous. A reactor sized on average duty will therefore run away at the end of the batch. Correct design identifies the peak rate, uses the end-of-batch viscosity for the heat transfer coefficient, and provides several independent removal paths, typically jacket, external loop and reflux, so that no single failure causes a loss of control.

Q: What is the difference between batch, semi-batch and continuous acrylic polymerization?

A: In batch operation all monomer, initiator and medium are charged at the start, which gives the simplest vessel but the worst control: the rate is highest at the beginning, the gel effect produces a strong exotherm peak, and the copolymer composition drifts through the batch because the more reactive monomer is consumed first. In semi-batch operation, which is the industry standard for emulsion and solution acrylics, monomer and initiator are fed over 2-6 hours, so the instantaneous conversion is held low, the heat release is spread evenly, and feeding a monomer mixture of changing composition lets the manufacturer engineer the copolymer composition and the particle structure. Continuous operation in a CSTR cascade or a loop gives the best consistency and the lowest cost per tonne at high volume, but requires steady feed quality, extensive instrumentation and a long start-up and grade change transient.

Q: How is molecular weight controlled in an acrylic reactor?

A: Three levers are used, and they are normally combined. Temperature, because initiator decomposition is exponentially dependent on it and higher temperature produces more radicals and shorter chains; holding the batch within 1-2°C is what makes grade-to-grade reproducibility possible. Chain transfer agent, usually a mercaptan at 0.05-2 wt%, which terminates a growing chain and starts a new one, lowering molecular weight predictably; because it is consumed faster than monomer, it is co-fed to keep the ratio constant. And initiator concentration, which sets the radical flux and therefore the number of chains growing simultaneously. The result is monitored by measuring the viscosity of the product solution or latex and by gel permeation chromatography for molecular weight and polydispersity, with the feedback loop adjusting the feed profile on subsequent batches.

Q: What are the common operating problems in an acrylic reactor?

A: Five recur. Runaway exotherm from the gel effect, caused by an over-fast monomer feed, a failed agitator, a fouled jacket or a too-high initiator charge. Coagulum and grit formation in emulsion, from excessive shear, insufficient surfactant, electrolyte shock or a too-rapid feed, which shows up as filterable solids and downgraded product. Fouling and polymer buildup on the vessel wall and on the impeller, which is aggravated by operation near the film-forming temperature of the polymer and requires regular cleaning and a smooth electropolished or glass-lined surface. Residual monomer above specification, typically 100-1,000 ppm, which requires a post-polymerization stripping or chemical chase step with additional initiator or a redox scavenging pair. And oxygen ingress, which causes an unpredictable induction period and then a delayed exotherm that catches the operator by surprise.
