What Is an Extraction Pressure Vessel? Design, Principles & Applications

What Is an Extraction Pressure Vessel? Design, Principles & Applications

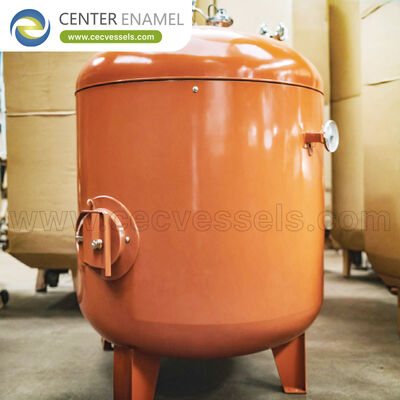

Answering the core question: What is an extraction pressure vessel, and how does it perform solvent or supercritical fluid extraction under controlled pressure? An extraction pressure vessel is an ASME Section VIII-coded pressure-rated container that enables the transfer of target solutes from a solid or liquid feed into a solvent phase by manipulating pressure, temperature, and interfacial contact area. Supercritical CO2 extraction vessels operate above the critical point (31.1°C and 7.38 MPa) where the solvent density approaches that of a liquid while maintaining gas-like diffusivity. Liquid-liquid extraction vessels use mixer-settlers or pulse columns at 0.1-4 MPa to achieve distribution coefficients (Kd) of 5-500 for efficient solute recovery.

1. Core Operating Principles of Extraction Pressure Vessels

The extraction efficiency achieved within a pressure vessel depends on thermodynamic equilibrium between phases, interfacial mass transfer kinetics, and the hydrodynamic conditions that control droplet formation and coalescence.

• Thermodynamic Distribution Equilibrium: The fundamental driving force for extraction is the distribution coefficient Kd = Csolute,extract / Csolute,raffinate, governed by the Nernst distribution law. For supercritical CO2 systems, solvent density—and thus dissolving power—is directly controlled by pressure: above 7.38 MPa at 31.1°C, CO2 enters the supercritical region where small pressure changes (e.g., from 10 to 30 MPa) can increase solubility by an order of magnitude. The selectivity factor α = Kd,A / Kd,B determines separation efficiency between target and non-target compounds.
• Interfacial Mass Transfer Kinetics: Solute transfer rate is governed by the two-film theory: N = kLa·(C* - Cb), where kLa is the volumetric mass transfer coefficient (typically 0.01-0.1 s⁻¹ for liquid-liquid systems), C* is equilibrium concentration at the interface, and Cb is bulk concentration. The *Weber number (We)* = ρ·v²·d/σ characterizes droplet breakup in mixer-settler vessels; maintaining We > 6 ensures dispersion into droplets of 0.5-3 mm diameter for optimal interfacial area. In supercritical extraction, diffusivities of 10⁻⁷ cm²/s (10-100* liquid solvents) accelerate intraparticle diffusion.
• Pressure-Controlled Phase Separation: In supercritical fluid extraction, pressure reduction in a separator vessel (from extraction pressure to 3-5 MPa) causes the CO2 to flash, dropping its solvent power and precipitating the extracted solute. This pressure swing approach eliminates the need for thermal desorption, preserving thermally labile compounds such as essential oils (decomposed above 60°C) and pharmaceuticals. The *Marcet principle* (P-T relationship along the phase envelope) governs the design of multi-stage separators.

2. Major Types of Extraction Pressure Vessels

Industrial extraction pressure vessels are configured by the contacting pattern between feed and solvent phases. Three principal designs dominate pharmaceutical, food, and chemical processing applications:

• Supercritical CO2 Extraction Vessels: These high-pressure ASME vessels (7.4-48 MPa design, 40-80°C operating) extract botanicals, pharmaceuticals, and food-grade compounds using supercritical CO2 as a tunable solvent. Vessel volumes range from 50 L (pilot) to 5,000 L (industrial), achieving 90-98% extraction efficiency in 2-4 hour batches. Internal baskets hold solid feed material; liquid feeds use packed columns with structured packing. The *Marcet principle* guides separator design for pressure-swing precipitation of extracted solutes.
• Mixer-Settler Extraction Vessels: These horizontal or vertical pressure vessels (0.1-4 MPa design) combine a mixing chamber with a gravity settling zone in a single ASME-coded shell. Rushton turbine impellers (6-blade, D/T = 0.33-0.5) at 200-600 RPM disperse the solvent phase into droplets of 0.5-3 mm, achieving kLa values of 0.02-0.08 s⁻¹. Settler residence times of 15-30 minutes allow phase coalescence. Multi-stage cascades of 3-10 mixer-settler units achieve 99%+ extraction with distribution coefficients Kd > 10.
• Pulse Column Extraction Vessels: These tall vertical pressure columns (0.5-3 MPa, H/D = 8-15) use reciprocating plate stacks or air pulsation (frequency 1-3 Hz, amplitude 6-25 mm) to create controlled droplet dispersion without mechanical agitators. The pulse energy input maintains the *Weber number* in the optimal range for droplet breakup. Throughput capacities of 5-100 m³/h are achieved with sieve-plate columns having 20% open area and 50-100 mm plate spacing, suited for nuclear fuel processing and rare-earth separation.

Extraction Pressure Vessel Types Comparison Matrix

Frequently Asked Questions (FAQ)

Q: Why is supercritical CO2 preferred over organic solvents for extraction pressure vessels?

A: Supercritical CO2 offers tunable solvent strength via pressure adjustment, non-flammable operation (no organic vapor hazards), zero solvent residue in the extracted product (CO2 evaporates completely on depressurization), and mild operating temperatures (31.1-80°C) that preserve thermally sensitive compounds. These properties make it the preferred solvent for food, pharmaceutical, and cosmetic extraction where organic solvent residues are regulated under ICH Q3C limits.

Q: What is the distribution coefficient and why does it matter for extraction vessel design?

A: The distribution coefficient Kd = C(extract phase) / C(raffinate phase) quantifies how strongly a solute partitions into the solvent phase. Kd > 10 indicates favorable extraction and allows fewer equilibrium stages. The selectivity α = Kd(target)/Kd(impurity) determines separation specificity. Vessel designers use Kd to calculate the number of theoretical stages via the Kremser equation, directly sizing the mixer-settler cascade or column height.

Q: How is phase coalescence managed in mixer-settler extraction vessels?

A: Coalescence in the settler section is promoted by maintaining a residence time of 15-30 minutes, providing a calm zone with Reynolds number < 200 (laminar flow), and installing coalescer plates or mesh pads that increase droplet collision frequency. The interface level is controlled by a level transmitter (LT) regulating the heavy-phase outlet valve. In systems prone to emulsion formation, demulsifier dosing or electrostatic coalescence may be applied.

Q: What safety provisions are required for supercritical CO2 extraction vessels?

A: Supercritical CO2 vessels designed to 48 MPa require ASME Section VIII Division 1 or Division 2 certification, burst disc pressure relief rated at 110% of design pressure, automated interlocks for door closure verification (no pressure with open door), CO2 leak detectors with 1% v/v alarm threshold, and emergency venting to a safe outdoor location. The system must also include a CO2 recovery/recycle loop to minimize greenhouse gas emissions, typically achieving 95%+ CO2 recovery.
