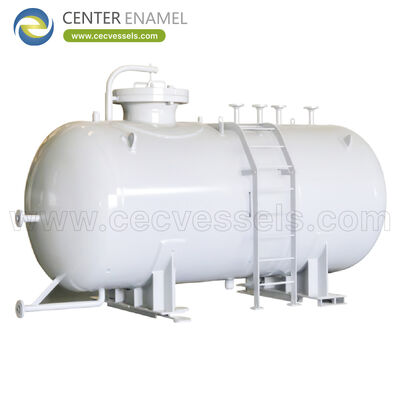

What Is a Specialty Chemical Pressure Vessel? Materials, Design & Applications

Answering the core question: What is a specialty chemical pressure vessel, and what materials and design features distinguish it from standard carbon steel equipment? A specialty chemical pressure vessel is an ASME Section VIII-coded vessel engineered for aggressive chemical service—halogens, strong acids, peroxides, and high-purity fluids—using corrosion-resistant alloys and linings beyond standard carbon or stainless steel. Materials include Hastelloy C-276 (PREN = 65.3), titanium Gr.2/Gr.7 (PREN = 23.7-34.3), tantalum overlay (clad on carbon steel), and PTFE or glass linings. The *Critical Pitting Temperature (CPT)* in 6% FeCl3 solution ranges from 35°C (316L) to >100°C (Hastelloy C-276), guiding material selection for chloride-containing process streams.

1. Core Material Selection Principles

The selection of vessel material for specialty chemical service follows a systematic evaluation of corrosive environment, temperature, concentration, and the cost-performance tradeoff across multiple alloy families.

• **Pitting and Crevice Corrosion Assessment:** Chloride-induced pitting is the dominant failure mode in specialty chemical vessels. The *PREN (Pitting Resistance Equivalent Number)* = %Cr + 3.3*%Mo + 16*%N quantifies resistance: 316L (PREN = 23-26) is limited to 35°C CPT; 2205 duplex (PREN = 34-38) extends to 60-70°C; Hastelloy C-276 (PREN = 65-70) exceeds 100°C. The *Critical Crevice Temperature (CCT)*, typically 15-25°C below CPT, governs design in crevice-prone geometries (gasket surfaces, bolted joints). ASTM G48 Method C (6% FeCl3 + 1% HCl) determines CPT, while Method D determines CCT for standard alloy comparison.
• **Hydrogen Pickup and Embrittlement in Titanium:** Titanium vessels (Gr.2 for general chemical service, Gr.7 for reducing acids with palladium addition) are susceptible to *hydrogen pickup* above 300 ppm H, causing hydride precipitation and brittle fracture. Hydrogen absorption accelerates at temperatures above 80°C in acid service and in galvanic contact with active metals (aluminum, zinc). Design measures include limiting service temperature below 300°C, maintaining oxidizing conditions (Fe³⁺ ions or oxygen) to sustain the TiO2 passive film, and avoiding cathodic areas by electrically isolating titanium from less noble metals. Periodic hydrogen analysis (every 2-5 years) monitors hydride progression.
• **Cladding and Overlay Solutions:** For large vessels where solid alloy construction would be prohibitively expensive, *explosion-bonded clad plate* (3-10 mm corrosion-resistant alloy on carbon steel base) or *weld overlay* (2-6 mm deposited via GTAW or SAW) provide 70-90% cost savings. Tantalum overlay (0.5-1.0 mm) handles concentrated H2SO4 above 150°C and HCl above 100°C—environments where even Hastelloy C-276 fails. Glass lining (GFS—Glass-Fused-to-Steel) provides chemical inertness for the full pH range (0-14) at temperatures up to 200°C, with the *Ra < 0.8 µm* surface finish preventing product contamination in pharmaceutical and fine chemical service.

2. Major Types of Specialty Chemical Pressure Vessels

Specialty chemical vessels are categorized by the primary corrosive medium they handle and the corresponding material strategy. Three representative applications illustrate the spectrum of material engineering:

• **Halogens and Halogen Acid Service Vessels:** These vessels handle chlorine gas (dry, < 150°C), bromine, hydrochloric acid (0-37% concentration), and hydrofluoric acid. For wet chlorine and HCl service, titanium Gr.2 (dry Cl2 up to 150°C) or Hastelloy C-276 (wet Cl2 and all HCl concentrations up to 70°C) is specified. For HF service, Monel 400 (Ni-Cu alloy) is standard up to 100°C; above 100°C, carbon steel (limited to anhydrous HF) or Inconel 625 is used. Weld filler metal must match base metal chemistry to avoid galvanic corrosion at the weld seam, and *post-weld solution annealing* at 1,060-1,120°C restores corrosion resistance in the HAZ.
• **Oxidizing Acid and Peroxide Service Vessels:** For concentrated sulfuric acid (> 90% at ambient to 150°C) and nitric acid (0-100% at ambient to 80°C), material selection follows isocorrosion curves: 316L handles < 5% H2SO4 and all HNO3 concentrations; for concentrated H2SO4, carbon steel (limited to > 90% and < 38°C) or tantalum overlay (> 150°C) is required. For hydrogen peroxide service (0-50%), high-purity 316L (S ≤ 0.005%) or aluminum (for > 35% H2O2) prevents catalytic decomposition, with electropolished surfaces (Ra < 0.4 µm) eliminating nucleation sites for O2 evolution.
• **High-Purity Pharmaceutical and Fine Chemical Vessels:** These ASME-BPE-compliant vessels feature 316L stainless steel (S ≤ 0.035%, Ra ≤ 0.4 µm after electropolishing) for product-contacting surfaces, with ASME-BPE SF5 (mechanically polished) or SF1 (electropolhed) finish specifications. Jacketed construction (half-pipe or dimple jacket) provides temperature control at -20°C to 200°C. Zero-dead-leg valves, sanitary clamp fittings (ASME-BPE JT series), and clean-in-place (CIP) spray balls ensure validation under 21 CFR Part 11 and ICH Q7 GMP requirements. Tantalum or glass-lined versions serve for acid-sensitive synthesis where 316L corrosion rates exceed 0.1 mm/year.

Specialty Chemical Pressure Vessel Materials Comparison Matrix

Frequently Asked Questions (FAQ)

Q: How is the Critical Pitting Temperature (CPT) determined and used for material selection?

A: CPT is determined per ASTM G48 Method C: coupon samples are immersed in 6% FeCl3 + 1% HCl solution at increasing temperatures in 2.5°C increments for 24 hours. The CPT is the lowest temperature at which pitting is observed. For design, the vessel material CPT must be at least 15-25°C above the maximum service temperature in chloride-containing service (this margin accounts for crevice corrosion, which occurs at lower temperatures than pitting). For example, if the process stream contains 1,000 ppm Cl⁻ at 70°C, a material with CPT > 85°C is required—316L (CPT 35°C) fails, 2205 (CPT 60°C) fails, Hastelloy C-276 (CPT >100°C) is suitable.

Q: What is explosion-bonded clad plate and when is it used for specialty chemical vessels?

A: Explosion bonding uses controlled explosive charges to force a corrosion-resistant alloy (CRA) layer (3-10 mm) onto a carbon or low-alloy steel base plate under extreme pressure, creating a metallurgical bond without a heat-affected zone. The clad plate provides the corrosion resistance of the CRA at the cost of carbon steel substrate, offering 70-90% savings over solid CRA construction for large vessels. It is used when wall thickness exceeds 25-30 mm and the CRA cost (Hastelloy, Inconel, titanium) would make solid construction uneconomical. Weld overlay (depositing CRA via GTAW) is an alternative for smaller surfaces or repair work.

Q: Why does hydrogen pickup limit titanium service temperature in specialty chemical vessels?

A: Titanium absorbs hydrogen aggressively in reducing acid environments, especially above 80°C and in galvanic contact with active metals. Above 300-500 ppm hydrogen content, brittle titanium hydride (TiH2) precipitates at grain boundaries, causing a ductile-to-brittle transition and potential catastrophic fracture. The passive TiO2 film normally limits hydrogen ingress, but in deaerated or reducing conditions (no oxygen or Fe³⁺ ions), the film breaks down. Design measures include limiting temperature, maintaining oxidizing conditions (adding FeCl3 or CuSO4), isolating titanium from aluminum and zinc, and periodic hydrogen content monitoring (ASTM E1447) every 2-5 years.

Q: What ASME-BPE finish classifications apply to pharmaceutical pressure vessels?

A: ASME-BPE defines surface finishes as SF1 (electropolished, Ra ≤ 0.4 µm, pharmaceutical-grade), SF2 (electropolished, Ra ≤ 0.6 µm), SF3 (mechanically polished, Ra ≤ 0.4 µm), SF4 (mechanically polished, Ra ≤ 0.6 µm), and SF5 (mechanically polished, Ra ≤ 0.8 µm, industrial-grade). SF1 or SF2 is required for product-contacting surfaces in sterile processing; SF4 or SF5 is acceptable for non-sterile contact surfaces. The Ra value is verified with profilometer measurements at multiple locations, and electropolishing removes 25-40 µm of material to eliminate micro-crevices that could harbor contaminants or trigger product degradation.
