What Is a Process Plants Reactor? Design, Integration & Applications

What Is a Process Plants Reactor? Design, Integration & Applications

Answering the core question: What is a process plants reactor, and how does it integrate chemical reaction engineering with plant-level control, utility, and safety systems? A process plants reactor is the core conversion unit in a chemical manufacturing facility, engineered as an integrated system combining reaction kinetics, heat transfer (U = 300-1,500 W/m²K), mixing (CSTR, PFR, or packed bed configurations), and safety instrumented systems. Sized by the *Damkohler number* Da = k·τ (where k is rate constant and τ is residence time), these reactors handle production capacities of 1,000-500,000 tonnes/year. Integration with a *Distributed Control System (DCS)* at 1-10 Hz scan rates enables real-time monitoring of temperature, pressure, composition, and flow, with *Advanced Process Control (APC)* and *Process Analytical Technology (PAT)* optimizing yield and selectivity within ±0.5% of design targets.

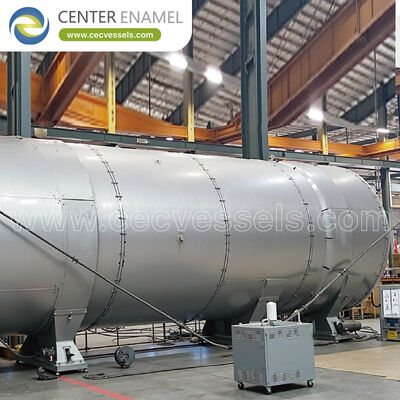

1. Core Design Principles of Process Plant Reactors

Process plant reactor design integrates chemical reaction engineering (kinetics, thermodynamics, transport phenomena) with mechanical engineering (materials, pressure, heat transfer) and process control (instrumentation, safety, optimization). Three principles govern the integrated design:

• **Reactor Selection and Damkohler Number Analysis:** The *Damkohler number* Da = k·τ quantifies the ratio of reaction rate to convective transport rate. For Da > 1, reaction is faster than mixing—the reactor behaves as a PFR or batch reactor. For Da < 0.1, reaction is slower than mixing—the reactor behaves as a CSTR with uniform concentration. The *Peclet number* Pe = uL/Dax characterizes axial dispersion: Pe > 50 (plug flow with minimal backmixing), Pe < 1 (fully backmixed CSTR). For first-order reactions in a PFR, conversion X = 1 - exp(-Da); for a CSTR, X = Da/(1+Da). The choice between CSTR and PFR depends on reaction order, selectivity requirements, and heat management—a CSTR provides uniform temperature for exothermic reactions, while a PFR achieves higher per-pass conversion for equilibrium-limited reactions.
• **Heat Transfer Integration and Thermal Management:** Exothermic reactors require continuous heat removal to maintain isothermal operation and prevent thermal runaway. The *overall heat transfer coefficient* U = 1/(1/hi + tw/kw + 1/ho + fouling) ranges from 300-500 W/m²K for jacketed CSTRs (with glass lining reducing U by 30-40%), 500-1,000 W/m²K for internal coil CSTRs, and 800-1,500 W/m²K for shell-and-tube PFRs. The *thermal runaway criterion* (Stoessel criticality class) classifies the reaction's heat generation vs. cooling capacity: Class 1 (safe, ΔTad < 50°C), Class 2 (medium risk, 50-200°C), Class 3 (high risk, >200°C requiring emergency cooling or quench). For runaway-prone reactions (nitration, polymerization), *emergency cooling* and *inhibitor injection* systems are specified per DIERS (Design Institute for Emergency Relief Systems) methodology.
• **DCS Integration and Advanced Process Control:** The reactor is instrumented with: temperature transmitters (RTD PT100, 3-wire, ±0.5°C) at 5-20 locations; pressure transmitters (capacitance or piezoresistive, ±0.1% FS) on feed, reactor, and relief; flow meters (Coriolis for mass, ±0.5%; magnetic for conductive liquids, ±0.2%; vortex for gas, ±1%); and composition analyzers (online FTIR, NIR, or GC with 1-5 minute cycle time) for *PAT (Process Analytical Technology)*. The DCS scans at 1-10 Hz, with PID control loops managing temperature (cascade: reactor temp → jacket inlet temp → steam/cooling valve), pressure (back-pressure regulator on gas-phase reactors), and feed flow (ratio control for stoichiometric balance). *APC (Advanced Process Control)* uses model predictive control (MPC) to optimize multi-variable interactions, reducing variability by 30-60% versus single-loop PID control.

2. Major Types of Process Plant Reactors

Industrial process plants deploy reactor configurations matched to the reaction chemistry, production scale, and process economics. Three configurations represent the dominant designs in chemical manufacturing:

• **Continuous Stirred Tank Reactor (CSTR):** These ASME vessels (1-50 m³, 0.1-10 MPa) feature mechanical agitation (Rushton or pitched-blade impeller, D/T = 0.33-0.5, N = 50-300 RPM) maintaining near-uniform temperature and concentration. The *residence time distribution (RTD)* follows the tanks-in-series model, with Peclet number Pe < 1 for a single well-mixed tank. CSTRs are preferred for: liquid-phase reactions requiring uniform temperature (polymerization, esterification), reactions with low selectivity sensitivity to conversion, and processes requiring continuous catalyst addition/removal. Multi-CSTR cascades (3-5 tanks) approximate PFR behavior for higher per-pass conversion, with conversion X_n = 1 - (1+Da·n)⁻ⁿ for n equal-size CSTRs in series.
• **Plug Flow Reactor (PFR) / Tubular Reactor:** These ASME tube-bundle or single-tube reactors (tube ID 25-100 mm, length 5-50 m) achieve plug-flow behavior with minimal axial mixing (Pe > 50). The *space velocity* SV = v/L = 1/τ defines the throughput per unit reactor volume. PFRs are preferred for: gas-phase reactions (steam reforming, partial oxidation), equilibrium-limited reactions requiring high per-pass conversion, and fast reactions where the narrow residence time distribution maximizes selectivity. For exothermic gas-phase reactions, multi-tubular configurations (thousands of 25-50 mm tubes in a shell, with catalyst in tubes and cooling on the shell side) provide heat transfer areas of 50-500 m²/m³ reactor volume.
• **Packed Bed Catalytic Reactor:** These ASME vessels (0.5-20 m diameter, 2-30 m height) contain a fixed bed of solid catalyst particles (3-10 mm extrudates or spheres) through which the fluid flows. The *Ergun equation* ΔP/L = 150·μ·v·(1-ε)²/(dp²·ε³) + 1.75·ρ·v²·(1-ε)/(dp·ε³) predicts pressure drop (typically 0.01-0.5 bar/m), constraining catalyst particle size and flow rate. Packed bed reactors serve: catalytic reforming (Pt-Sn/Al2O3, 400-550°C, 0.5-3 MPa), methanol synthesis (Cu-ZnO-Al2O3, 200-300°C, 5-10 MPa), and ammonia synthesis (Fe-K2O-Al2O3, 400-550°C, 10-30 MPa). Radial-flow designs (inward or outward flow through annular catalyst beds) reduce pressure drop by 50-80% versus axial-flow for large-diameter vessels.

Process Plant Reactor Types Comparison Matrix

Frequently Asked Questions (FAQ)

Q: What is the Damkohler number and how does it guide reactor selection?

A: The Damkohler number Da = k·τ is the ratio of reaction rate (characterized by rate constant k) to convective flow rate (characterized by residence time τ). For Da > 1, the reaction is faster than the fluid residence time—full conversion is achievable in a PFR or batch reactor. For Da < 0.1, the reaction is slow compared to mixing—a CSTR with uniform concentration is appropriate. For intermediate Da (0.1-1), the choice depends on selectivity requirements: CSTRs give uniform conditions (better for temperature-sensitive selectivity), while PFRs give narrow residence time distributions (better for consecutive reactions where intermediate product is desired).

Q: How does a DCS integrate with a process plant reactor for safety and optimization?

A: The DCS integrates at three levels: (1) basic regulatory control—PID loops maintaining temperature, pressure, level, and flow at setpoints (scan rate 1-10 Hz, loop execution 100-500 ms); (2) safety instrumented systems (SIS)—independent logic solvers per IEC 61511 that initiate shutdown, emergency cooling, or depressurization when process variables exceed safety limits (SIL 1-3 rated, response time 1-5 seconds); (3) advanced process control (APC)—model predictive control (MPC) optimizing multi-variable interactions (e.g., yield vs. selectivity vs. utility cost) using first-principles or empirical models. PAT (online analyzers) feed real-time composition data to the APC, enabling feed-forward control that anticipates disturbances before they affect product quality.

Q: What is the Stoessel criticality classification and why is it important for reactor thermal safety?

A: The Stoessel classification (developed by Francis Stoessel at Ciba-Geigy) categorizes the thermal hazard of exothermic reactions based on: ΔTad (adiabatic temperature rise if all reactants react without heat removal), MTSR (Maximum Temperature of Synthesis Reaction—the temperature reached if all accumulated reactants react adiutically), and the temperature at which the decomposition reaction starts. Class 1: ΔTad < 50°C, MTSR below decomposition onset—safe with standard cooling. Class 2: 50 < ΔTad < 200°C, MTSR approaches decomposition—requires emergency cooling. Class 3: MTSR exceeds decomposition onset—requires quench, inhibitor injection, or emergency relief sized per DIERS. Class 4-5: decomposition is fast and self-accelerating—requires inherently safer design (reduced batch size, continuous flow).

Q: What determines the choice between a fixed-bed and a fluidized-bed reactor for catalytic processes?

A: Fixed-bed reactors are simpler (no catalyst entrainment, lower catalyst attrition, lower pressure drop in radial flow designs) but suffer from: temperature hot spots (up to 50°C above average) in exothermic reactions, difficulty in catalyst regeneration (requires shutdown), and heat transfer limitations (U = 100-400 W/m²K). Fluidized-bed reactors achieve near-isothermal operation (hot spots < 5°C), allow online catalyst regeneration (CCR—continuous catalyst regeneration), and have excellent heat transfer (U = 500-2,000 W/m²K) but require: catalyst particle size of 20-150 µm (for fluidization), higher pressure drop per unit (0.5-1.0 bar), and handle catalyst attrition (0.1-1%/day replacement). Fluidized beds are preferred for: FCC (Fluid Catalytic Cracking), MTO (Methanol-to-Olefins), and exothermic equilibrium-limited reactions.
