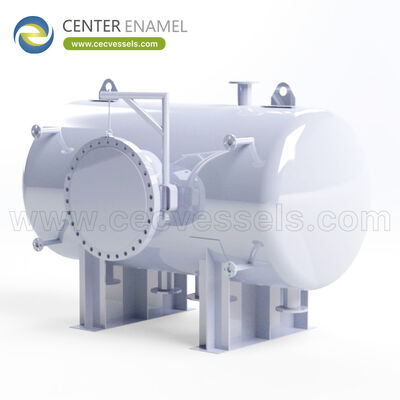

What Is a Low Temperature Pressure Vessel? Design, Materials & Applications

Answering the core question: What is a low temperature pressure vessel, and what material and design modifications does it require for safe operation below -46°C? A low temperature pressure vessel is an ASME Section VIII-coded vessel designed for service below -46°C (the threshold where carbon steel transitions to brittle behavior), requiring materials with verified low-temperature toughness. The *Minimum Design Metal Temperature (MDMT)* determines material selection: below -46°C, normalized fine-grain carbon steel (SA-516 Gr.70N) with Charpy V-notch (CVN) impact testing per ASME Section VIII UG-84 is required; below -104°C, 9% nickel steel (SA-353) or austenitic stainless steel (304L/316L) is used; below -196°C, only austenitic steels, aluminum (5083), or 9% Ni steel are suitable for LNG (-162°C), liquid oxygen (-183°C), and liquid nitrogen (-196°C) service.

1. Core Design Principles for Low Temperature Service

Low-temperature vessel design centers on preventing brittle fracture—a catastrophic failure mode where a crack propagates at near-sonic velocity through the vessel wall with no measurable plastic deformation. Three metallurgical and design principles govern safe operation:

• **Charpy V-notch Impact Toughness Verification:** ASME Section VIII UG-84 mandates CVN impact testing at or below the MDMT. The test specimen (10*10*55 mm with a 2 mm V-notch, machined to ASTM E23) is struck by a pendulum hammer; the absorbed energy (in Joules) must exceed the minimum specified value based on material thickness. For SA-516 Gr.70N at -46°C, the minimum CVN is 18-27 J (depending on thickness). For 9% Ni steel (SA-353) at -196°C, CVN values of 40-70 J are achievable due to the stabilized austenite phase. The *lateral expansion* (minimum 0.38 mm) and *shear fracture appearance* (minimum 70% for full-size specimens) provide secondary acceptance criteria.
• **Ductile-to-Brittle Transition Temperature (DBTT) Control:** BCC (body-centered cubic) metals—carbon steel, low-alloy steel, and chromium ferritic grades—exhibit a DBTT where fracture mode shifts from ductile (microvoid coalescence) to brittle (cleavage). Carbon steel DBTT is approximately -20°C to -40°C, so service below -46°C requires either austenitic materials (FCC structure, no DBTT) or 9% Ni steel, whose nickel addition lowers DBTT to below -196°C. The *50% FATT (Fracture Appearance Transition Temperature)*, where 50% ductile and 50% brittle fracture is observed, must be at least 15-30°C below the MDMT. Fine-grain practice (ASTM E112, grain size No. 5 or finer) and normalizing heat treatment reduce DBTT by 10-20°C.
• **Thermal Stress and Differential Expansion Management:** Low-temperature vessels experience extreme differential thermal expansion between the cold inner vessel and ambient-temperature outer jacket or supports. For a 9% Ni steel inner vessel at -162°C and a carbon steel outer vessel at +20°C, the differential contraction is approximately 2.7 mm/m length, requiring flexible connections (bellows or flexible metallic hoses) on all piping. *ASME Section VIII Appendix 3* addresses the design of support skirts for cold vessels: the skirt-to-shell junction must include a thermal transition section to limit thermal stress to below the yield strength at the metal temperature. Perlite powder insulation (thermal conductivity 0.02-0.04 W/mK in vacuum) fills the annular space between inner and outer vessels for double-wall LNG storage tanks.

2. Major Types of Low Temperature Pressure Vessels

Low-temperature vessels are categorized by the liquefied gas they contain, the corresponding MDMT, and the material strategy. Three major application categories represent the majority of industrial installations:

• **LNG Storage and Processing Vessels (MDMT -162°C):** These double-wall flat-bottom tanks (1,000-200,000 m³ capacity) store liquefied natural gas at -162°C. The inner vessel is 9% Ni steel (SA-353) with wall thicknesses of 10-25 mm for shop-fabricated pressure vessels up to 500 m³, or stainless steel 304L for smaller process vessels. The outer vessel (carbon steel) contains perlite vacuum insulation, reducing boil-off rate to 0.05-0.1% per day for large storage tanks. ASME Section VIII Division 1 with Appendix (cold temperature supplementary requirements) or API 620 Appendix Q governs design, with 100% UT examination of all welds and stress-relief PWHT at 550-585°C (below the Ac1 temperature to preserve 9% Ni steel's tempered microstructure).
• **Cryogenic Gas Processing Vessels (MDMT -104°C to -196°C):** These ASME vessels serve air separation units (ASU), ethylene cold boxes, and nitrogen liquefaction plants. For service down to -104°C (ethylene refrigeration), 3.5% Ni steel (SA-203 Gr.D) or 304L stainless steel is specified. For -196°C service (liquid nitrogen, oxygen, argon), fully austenitic 304L/316L or aluminum 5083-O is used, as these FCC metals have no DBTT. Plate-fin heat exchangers (aluminum brazed, ~100 layers, 6-12 m³ volume) replace shell-and-tube exchangers for compactness. The *mean specific heat* of 9% Ni steel at -162°C is 0.45 kJ/kgK (vs. 0.50 at ambient), and the *thermal contraction* coefficient is 1.2*10⁻⁵ /°C, requiring thermal transition sections at support points.
• **Liquid Hydrogen and Helium Vessels (MDMT -253°C to -270°C): These ultra-low temperature vessels use austenitic stainless steel 304L or 316L for liquid hydrogen (-253°C) and austenitic steel or aluminum for liquid helium (-269°C). The vacuum-insulated design (inner vessel with multilayer insulation—MLI of alternating aluminum foil and glass paper, 30-100 layers—inside a vacuum-jacketed outer shell) reduces heat leak to <1 W/m². For liquid helium, *superinsulation* achieving 0.5-2.0 W/m² heat flux is essential, as the latent heat of vaporization of helium is only 2.18 kJ/L (vs. 226 kJ/L for LNG). Boil-off rates of 0.3-1.0% per day are typical for 10-50 m³ transport vessels with active relief venting.

Low Temperature Pressure Vessel Materials Comparison Matrix

Frequently Asked Questions (FAQ)

Q: What is the Minimum Design Metal Temperature (MDMT) and why is it critical?

A: The MDMT is the lowest metal temperature at which the vessel is expected to operate under pressure, including startup, shutdown, and abnormal conditions. ASME Section VIII requires that all pressure-bearing materials have verified Charpy V-notch impact toughness at or below the MDMT. Operating a carbon steel vessel below its MDMT risks catastrophic brittle fracture—a crack propagating at near-sonic velocity through the wall with no prior plastic deformation. The MDMT is stamped on the vessel nameplate and must not be exceeded without a engineering analysis per ASME Section VIII UG-20(f) or Code Case 2216.

Q: Why is 9% nickel steel used for LNG storage vessels instead of stainless steel?

A: 9% Ni steel (SA-353) provides an optimal balance: it has a DBTT below -196°C (suitable for LNG at -162°C), higher strength than austenitic stainless steel (yield 515 MPa vs. 205 MPa for 304L, allowing thinner walls and lower cost), and lower thermal contraction than austenitic grades (reducing thermal stress at supports). The 9% Ni addition stabilizes the retained austenite phase between the tempered martensite matrix, providing low-temperature toughness. 9% Ni steel costs approximately 3* carbon steel but only 0.5* stainless steel, making it the economical choice for large LNG storage tanks.

Q: What is multilayer insulation (MLI) and how does it reduce heat leak in cryogenic vessels?

A: MLI consists of 30-100 alternating layers of highly reflective aluminum foil (12-25 µm thick) and low-conductivity spacer material (glass paper or polyester net, 0.05-0.15 mm thick), installed in the vacuum annulus between inner and outer vessels. Each foil layer reflects 95-97% of infrared radiation, and with 30+ layers, the residual radiative heat transfer is reduced by 200-300* compared to bare vacuum. The effective thermal conductivity of properly installed MLI in high vacuum (<10⁻³ mbar) is 0.00005-0.0002 W/mK, achieving boil-off rates of 0.05-0.1%/day for large LNG tanks and 0.3-1.0%/day for smaller LH2 transport vessels.

Q: What are the ASME impact test exemptions and how do they apply to low-temperature vessels?

A: ASME Section VIII UG-20(f) and Figure UCS-66 provide impact test exemptions based on material thickness and MDMT: thin materials (< 10 mm) may be exempt at temperatures as low as -48°C because the *reference temperature* (derived from thickness, yield strength, and applied stress) is above the DBTT. However, for vessels operating below -46°C, exemptions are rarely applicable—impact testing at the MDMT is mandatory for most thicknesses and material grades. Code Case 2216 permits reducing the MDMT without impact testing if a fracture mechanics analysis (using the *failure assessment diagram* per API 579-1/ASME FFS-1) demonstrates adequate flaw tolerance, but this requires advanced engineering analysis and regulatory acceptance.
