Answering the core question: What is a petrochemical pressure vessel, and how does it differ from general industrial pressure equipment? A petrochemical pressure vessel is an ASME Section VIII-coded pressure vessel designed specifically for hydrocarbon processing service, engineered to withstand elevated temperatures (-46°C to 540°C), high pressures (0.1-20 MPa), and aggressive chemical environments including hydrogen sulfide, hydrogen, and hydrofluoric acid. These vessels comply with additional industry standards such as API 660 (shell-and-tube heat exchangers), API 661 (air-cooled exchangers), and NACE MR0175 / ISO 15156 for sour gas service where H2S partial pressure exceeds 0.05 kPa, requiring hardness-controlled materials and post-weld heat treatment (PWHT) to prevent sulfide stress cracking (SSC).

1. Core Design Principles of Petrochemical Pressure Vessels

Petrochemical vessel design extends beyond ASME Section VIII pressure calculations to address hydrogen embrittlement, temper embrittlement, sour service degradation, and cyclic thermal loading that are unique to hydrocarbon processing environments.

• NACE MR0175 Sour Service Compliance: When process streams contain H2S at partial pressures above 0.05 kPa (0.0007 psi) at total pressures above 0.45 MPa (65 psi), the vessel falls under NACE MR0175 / ISO 15156 sour service requirements. Carbon steel components must be restricted to 22 HRC maximum hardness, with heat-affected zones (HAZ) controlled to Vickers HV10 ≤ 248. Low-alloy steels (e.g., SA-387 Gr.11/22) require PWHT at 620-690°C for 1-2 hours per 25 mm thickness to reduce residual stresses below 20% of yield strength and temper hard martensitic microstructures susceptible to *sulfide stress cracking (SSC)*.
• Hydrogen Damage and High-Temperature Degradation: In hydroprocessing units (hydrotreaters, hydrocrackers), vessels operate with hydrogen partial pressures of 3-20 MPa at 350-450°C. Material selection follows API 941 (Nelson curves), which define the safe operating envelope for carbon steel, 1.25Cr-0.5Mo, and 2.25Cr-1Mo steels. Above the Nelson curve limit, high-temperature hydrogen attack (HTHA) causes methane bubble formation and fissuring. The *Larson-Miller parameter* LMP = T(20 + log t) * 10⁻³ predicts creep rupture life, where T is Kelvin temperature and t is hours, guiding design margins for 20-year service life.
• Temper Embrittlement Prevention: Low-alloy Cr-Mo steels serving at 350-575°C are susceptible to temper embrittlement—grain boundary segregation of P, Sn, Sb, and As elements that raises the ductile-to-brittle transition temperature (DBTT). The *J-factor* = (Si + Mn) * (P + Sn) * 10⁴ must be kept below 100 for 2.25Cr-1Mo vessels, achieved by specifying low-impurity steel (P ≤ 0.010%, Sn ≤ 0.005%). Step-cooling heat treatment during fabrication verifies DBTT shift of ≤ 28°C, ensuring safe startup from ambient temperature without brittle fracture.

2. Major Types of Petrochemical Pressure Vessels

Petrochemical complexes deploy a family of pressure vessels, each optimized for a specific unit operation within the refining and chemical synthesis chain. Three major categories account for the majority of field installations:

• Hydroprocessing Reactor Vessels: These thick-wall (100-250 mm) forged-wall reactors operate at 8-20 MPa and 350-450°C in hydrotreating and hydrocracking service. Constructed from 2.25Cr-1Mo-0.25V (vanadium-modified for improved creep resistance), they feature internal catalyst beds with cold hydrogen quench zones between catalyst layers. The *Larson-Miller parameter* verifies 200,000-hour creep rupture life at design temperature. Vessel weights of 500-1,500 tonnes require special transport and heavy-lift cranes for field installation, with field welding and PWHT performed under API 660/ASME joint requirements.
• Shell-and-Tube Heat Exchanger Vessels: Designed to API 620/660 and TEMA Class R, these vessels handle feed/effluent heat exchange, reboiling, and condensation in petrochemical units. Typical designs include shell diameters of 600-1,500 mm, tube lengths of 6-12 m, and tube counts of 200-5,000. Materials range from carbon steel (SA-516 Gr.70) for light hydrocarbon service to duplex 2205 for chloride-containing cooling water. The *log mean temperature difference (LMTD)* correction factor Ft > 0.75 is maintained through multi-pass tube arrangements (1-2, 2-4, or split-flow TEMA G shells).

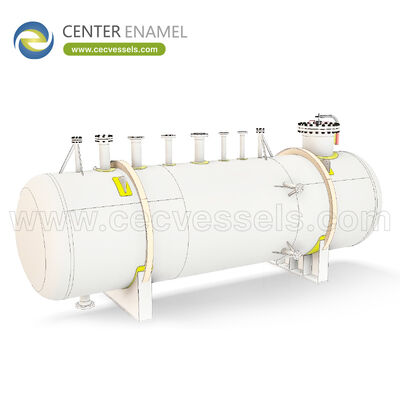

• Three-Phase Separator Vessels: Horizontal ASME vessels (2-4 m diameter, 6-15 m length) separate oil, gas, and water in upstream and midstream petrochemical facilities. Operating at 0.1-10 MPa with design temperatures from -46°C to 200°C, they incorporate inlet devices (vane-type or cyclonic), mist extractors (wire mesh or vane pack), and weir plates for oil-water interface control. Residence times of 1-5 minutes in the liquid section ensure droplet settling of 100 µm+ water droplets, calculated via Stokes' law: vs = g·(ρw-ρo)·d² / (18·μo).

Petrochemical Pressure Vessel Types Comparison Matrix

Frequently Asked Questions (FAQ)

Q: What triggers NACE MR0175 sour service classification for a petrochemical pressure vessel?

A: Sour service classification is triggered when the process stream contains H2S at a partial pressure above 0.05 kPa (0.0007 psia) at total pressures above 0.45 MPa (65 psia). At these conditions, sulfide stress cracking (SSC) becomes a credible failure mode for carbon and low-alloy steels. NACE MR0175 / ISO 15156 mandates maximum hardness (22 HRC for carbon steel), PWHT requirements, and material restrictions to prevent brittle SSC failure along the heat-affected zone.

Q: How does the API 941 Nelson curve guide material selection for hydrogen service?

A: The Nelson curve plots hydrogen partial pressure against operating temperature, defining safe operating zones for each steel grade. Below the carbon steel curve, SA-516 Gr.70 is acceptable. Above it, 1.25Cr-0.5Mo (SA-387 Gr.11) is required; at higher severity, 2.25Cr-1Mo (SA-387 Gr.22) or vanadium-modified 2.25Cr-1Mo-0.25V is specified. Exceeding the curve limit risks high-temperature hydrogen attack (HTHA), causing irreversible methane bubble formation and fissuring within the steel.

Q: What is the J-factor and why is it critical for 2.25Cr-1Mo petrochemical vessels?

A: The J-factor = (Si + Mn) * (P + Sn) * 10⁴ quantifies susceptibility to temper embrittlement in low-alloy Cr-Mo steels. A J-factor below 100 ensures that grain-boundary segregation of tramp elements (P, Sn, Sb, As) remains below the threshold that raises the ductile-to-brittle transition temperature (DBTT) by more than 28°C during step-cooling. Vessels with J > 100 risk brittle fracture during cold startup, as the DBTT may shift above ambient temperature after years of high-temperature service.

Q: What is the minimum residence time for effective three-phase separation in a petrochemical separator?

A: The liquid section residence time must be sufficient for water droplets ≥ 100 µm to settle from the oil phase. Using Stokes' law: vs = g·(ρw - ρo)·d² / (18·μo), the terminal settling velocity for 100 µm droplets in light crude (μo = 5 cP, Δρ = 100 kg/m³) is approximately 0.001 m/s. For a 2 m liquid depth, this requires 2,000 seconds (33 minutes), but with coalescer aids, practical residence times of 1-5 minutes achieve 95%+ water removal for droplets ≥ 150 µm.
