What Is a Pressure Vessel Solution? Engineering, Integration & Applications

What Is a Pressure Vessel Solution? Engineering, Integration & Applications

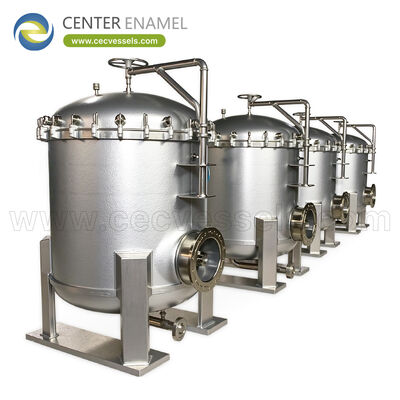

Answering the core question: What is a pressure vessel solution, and how does it extend beyond a single vessel to encompass the complete engineered system and lifecycle support? A pressure vessel solution is an integrated engineering package that delivers a fully functional pressure-rated process system—not just the ASME-coded vessel, but the process design (PFD, P&ID, HAZOP review with 100+ deviation nodes), fabrication (ASME U-Stamp with full material traceability), auxiliary systems (instrumentation, piping, valves, pumps, heat exchangers), modular skid assembly (reducing field installation by 40-60%), turnkey commissioning (IQ/OQ/PQ per ISA-TR84), and lifecycle support (spare parts, inspection, RBI program). Delivered via EPC or EPCM models with 6-18 month timelines and performance guarantees of 95-98% of design throughput, the solution approach ensures single-source accountability across the entire asset lifecycle.

1. Core Engineering and Integration Principles

A pressure vessel solution integrates multiple engineering disciplines—process, mechanical, electrical, instrumentation, and structural—into a coordinated delivery. Three principles govern successful solution integration:

• **Process Design and Safety Integration (HAZOP/SIL):** The solution begins with process design: PFD (Process Flow Diagram) defining mass balance and heat balance, followed by P&ID (Piping and Instrumentation Diagram) detailing all equipment, piping, valves, instruments, and control logic. A *HAZOP (Hazard and Operability Study)* systematically reviews 100+ deviation nodes (e.g., 'more flow,' 'less temperature,' 'reverse flow') with guide words to identify credible hazards. Identified hazards requiring instrumented protection are quantified via *LOPA (Layer of Protection Analysis)*, and the *Safety Integrity Level (SIL)* is assigned per IEC 61511: SIL 1 (risk reduction 10-100*), SIL 2 (100-1,000*), or SIL 3 (1,000-10,000*). The vessel's pressure relief system (PSV/PRV per API 520/521) is sized for the worst-case relief scenario, with the setpoint at or below the MAWP.
• **Modular Skid Assembly and Pre-Commissioning:** Where site conditions allow, the solution is delivered as a modular skid package: vessel(s), piping, instruments, valves, and structural steel pre-assembled on a common base frame in a controlled shop environment. This approach reduces field labor (the costliest and least controllable phase) by 40-60%, as shop fabrication enables automated welding, controlled NDE, and climate-independent progress. Pre-commissioning activities (hydrotest, loop checks, instrument calibration, function testing) are completed in-shop, so field scope is limited to foundation placement, utility connections, and tie-in welding. *Modular skid packages* with up to 30-40 tonnes weight and 3.5*12 m dimensions are road-transportable, with larger modules requiring SPMT transport or modular barge delivery.
• **Turnkey Commissioning and Performance Guarantee:** Commissioning follows a structured sequence: Installation Qualification (IQ) verifies that installed equipment matches the P&ID and isometric drawings; Operation Qualification (OQ) tests individual loops and systems under no-load or water-test conditions; Performance Qualification (PQ) runs the system at design conditions with actual process fluid, verifying that throughput, product quality, and utility consumption meet the performance guarantee. ISA-TR84.00.07 provides the framework for safety instrumented system commissioning. A *performance guarantee* of 95-98% of design throughput (with defined acceptance margins on utility consumption and product specification) places design and fabrication risk on the solution provider, incentivizing robust engineering and quality fabrication rather than minimum-code compliance.

2. Major Types of Pressure Vessel Solution Delivery

Pressure vessel solutions are delivered through models that differ in scope allocation, risk transfer, and client involvement. Three models represent the spectrum of commercial delivery approaches:

• **EPC (Engineer-Procure-Construct) Turnkey Delivery:** In this model, the solution provider assumes full responsibility for engineering design, equipment procurement, construction, and commissioning. The client provides the process technology package (licensor data) or performance specification, and the EPC contractor delivers a turnkey, ready-to-operate facility. EPC delivery timelines of 12-18 months (for a complete process unit) or 6-12 months (for a modular package) include a 6-month engineering phase, 4-8 month procurement, and 4-6 month construction/commissioning. The performance guarantee typically covers throughput (95-98%), product quality (spec compliance), and utility consumption (±5% of design). This model transfers the most risk to the provider but offers the client single-source accountability and fixed-price certainty.
• **EPCM (Engineer-Procure-Construct-Manage) Delivery:** In this model, the solution provider delivers engineering and procurement services and manages construction (performed by subcontractors or the client's own forces). This model is preferred when the client wants direct control over construction (e.g., to utilize local labor or existing maintenance crews) or when the project is too large for a single contractor. The EPCM provider's guarantee is limited to engineering correctness and procurement quality, not overall facility performance. This model reduces the provider's risk and fee (typically 8-15% of engineering cost vs. 15-25% for EPC), and is common in large refinery and petrochemical projects where multiple process units are built by different contractors under a common EPCM manager.
• **Modular Skid Package Delivery:** This model delivers a pre-engineered, shop-fabricated modular unit containing one or more pressure vessels with associated piping, instruments, and controls on a common skid base. Standardized skid designs (e.g., gas dehydration package, chemical injection skid, separator skid) reduce engineering cost and delivery time to 3-6 months. Skid weights of 5-40 tonnes are road-transportable; field scope is limited to foundation placement, utility tie-ins, and loop checks. This model is preferred for remote locations, offshore platforms, or brownfield expansions where field labor is expensive or constrained. The modular approach enables future re-location or capacity expansion by adding additional skid units in parallel.

Pressure Vessel Solution Delivery Models Comparison Matrix

Frequently Asked Questions (FAQ)

Q: What is the difference between a pressure vessel and a pressure vessel solution?

A: A pressure vessel is a single piece of ASME-coded equipment—a steel tank designed and fabricated to contain pressure. A pressure vessel solution is the complete engineered system that makes the vessel functional: the vessel itself plus process design (PFD/P&ID), auxiliary equipment (pumps, heat exchangers, instrumentation), piping and valves, control system (DCS/PLC with safety logic), structural support, modular skid assembly, field installation, commissioning (IQ/OQ/PQ), and lifecycle support (spare parts, inspection, RBI program). The solution provider takes accountability for the integrated system's performance, not just the individual vessel's code compliance.

Q: What does a HAZOP study cover and how does it integrate with pressure vessel solution design?

A: A HAZOP (Hazard and Operability Study) systematically reviews each P&ID deviation node (typically 100+ nodes for a complete process unit) using guide words (no flow, more flow, reverse flow, more temperature, less pressure, etc.) to identify credible hazards and operability problems. Each identified hazard is assessed via LOPA (Layer of Protection Analysis), and Safety Integrity Level (SIL) is assigned to instrumented protective functions per IEC 61511. The HAZOP output feeds directly into vessel design: PSV sizing (worst-case relief scenario), instrumentation specifications (SIL-rated transmitters and shutdown valves), and alarm management (rationalized priority and response time). A complete HAZOP typically requires 5-15 full-day workshops with multidisciplinary participation.

Q: How does modular skid delivery reduce project risk and timeline?

A: Modular skid delivery shifts 40-60% of field labor to a controlled shop environment, where automated welding, full NDE coverage, and climate-independent progress reduce construction risk (delays, rework, safety incidents). Pre-commissioning (hydrotest, loop checks, instrument calibration) is completed in-shop, so field scope is limited to foundation placement, utility connections, and tie-in welding. Delivery timelines of 3-6 months (vs. 12-18 months for stick-built construction) are achievable for standardized packages. The modular approach also enables future re-location or capacity expansion by adding parallel skid units, and reduces field safety incidents by minimizing the workforce exposed to simultaneous construction hazards.

Q: What performance guarantees should a pressure vessel solution provider offer?

A: A comprehensive performance guarantee covers: (1) throughput: 95-98% of design rated capacity at specified feed conditions; (2) product quality: meeting agreed specification with defined acceptance criteria (e.g., purity, moisture, particle size); (3) utility consumption: within ±5% of design (steam, electricity, cooling water, instrument air); (4) reliability: availability factor ≥ 95% over the first 12 months of operation (excluding planned shutdowns); (5) emission compliance: meeting applicable environmental permits. The guarantee typically has a performance test period (72-168 hours) after mechanical completion, with liquidated damages (LDs) for non-conformance and a rectification period for the provider to correct deficiencies before LDs are applied.
