What Is a Fermentation Reactor? Design, Principles & Applications

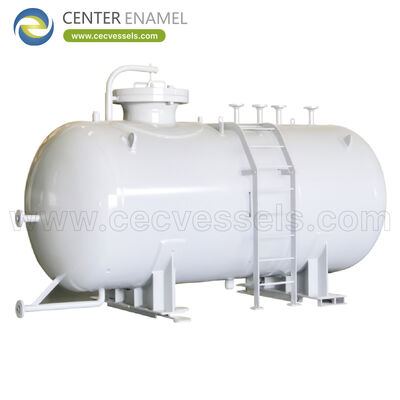

Answering the core question: What is a fermentation reactor, and how does it maintain aseptic conditions while providing microorganisms with optimal oxygen, nutrients, and mixing for product formation? A fermentation reactor (bioreactor) is an ASME-BPE-coded pressure vessel designed for the aseptic cultivation of microorganisms (bacteria, yeast, fungi) or mammalian cells for the production of biopharmaceuticals, enzymes, amino acids, and biofuels. Performance is governed by the *volumetric mass transfer coefficient kLa* = 0.05-0.3 s⁻¹ for oxygen delivery, *Monod kinetics* μ = μmax·S/(Ks + S) for growth rate prediction, and *sterile-in-place (SIP)* validation at 121°C for 15-30 minutes. Design pressures of 0.1-0.6 MPa accommodate compressed air and steam sterilization. GMP compliance under 21 CFR Part 11 and ICH Q5A requires validated CIP/SIP cycles, sterility assurance level (SAL) < 10⁻⁶, and full electronic batch records (EBR).

1. Core Design and Bioprocess Principles

Fermentation reactor design integrates microbiological requirements (sterility, oxygen transfer, nutrient delivery) with mechanical engineering (agitation, heat transfer, material compatibility) and GMP compliance (validation, data integrity, contamination prevention). Three principles govern the integrated design:

• **Oxygen Mass Transfer and kLa:** Aerobic fermentation requires continuous oxygen supply: the *oxygen uptake rate (OUR)* = qO2·X (where qO2 is the specific oxygen consumption rate in mmol/gDW/h and X is biomass concentration in gDW/L) can reach 50-200 mmol/L/h for high-density E. coli cultures. The *volumetric mass transfer coefficient kLa* = (OUR)/(C* - C_L) must satisfy the demand: for bacteria (qO2 = 10-20 mmol/gDW/h, X = 20-50 gDW/L), kLa > 0.15 s⁻¹ is needed; for mammalian cells (qO2 = 0.1-0.5, X = 1-10*10⁶ cells/mL), kLa = 0.005-0.05 s⁻¹ suffices. kLa is enhanced by: increasing agitation speed (kLa ∝ N^2.3 for Rushton turbines), increasing gas flow (vvm = 0.5-2.0), increasing pressure (raising C* via Henry's law C* = H·P), or using oxygen-enriched air (> 40% O2). The kLa is measured in-situ by the *dynamic gassing-out method* or the *sulfite oxidation method*.
• **Monod Kinetics and Growth Modeling:** Microbial growth follows *Monod kinetics*: μ = μmax·S/(Ks + S), where μ is the specific growth rate (h⁻¹), μmax is the maximum specific growth rate (0.3-1.0 h⁻¹ for bacteria, 0.03-0.05 h⁻¹ for mammalian cells), S is the limiting substrate concentration, and Ks is the half-saturation constant. At S >> Ks, μ → μmax (exponential growth). At S ≈ Ks, growth is substrate-limited. The *yield coefficient* Yx/s = ΔX/ΔS (typically 0.4-0.6 gDW/g for glucose) links biomass production to substrate consumption. In fed-batch mode (the dominant industrial mode for recombinant protein production), the *exponential feeding profile* F(t) = (μset·V0·X0·Yx/s·e^(μset·t))/(Sf·Yx/s) maintains S at the optimum level, preventing the Crabtree effect (overflow metabolism in yeast) or acetate accumulation in E. coli.
• **Aseptic Design and SIP/CIP Validation:** Sterility is the paramount requirement: a single contaminant organism in a 10,000 L batch causes product loss valued at $100,000-$10,000,000. The vessel must be *sterilizable-in-place (SIP)*: all product-contacting surfaces must reach 121°C for 15-30 minutes (standard autoclave conditions, SAL < 10⁻⁶). Steam is introduced through the sparger, agitator seal, and all ports; *cold spots* (thermocouple locations showing minimum temperature) are mapped and verified during validation. *ASME-BPE* design rules: zero dead-leg (pipe length < 3* diameter for all branches), fully drainable (vessel bottom pitched to drain valve), electropolished surfaces (Ra ≤ 0.4 µm, SF1 finish), and sanitary clamp fittings (ASME-BPE JT series). *CIP (clean-in-place)* uses rotating spray balls delivering caustic (1-2% NaOH, 70-80°C), acid (1% HNO3), and WFI rinse, validated by riboflavin coverage test and TOC < 10 ppm.

2. Major Types of Fermentation Reactors

Fermentation reactors are classified by the microorganism type, operating mode (batch, fed-batch, continuous), and scale. Three configurations represent the dominant industrial designs:

• **Stirred-Tank Fermentation Reactors (STR):** These ASME-BPE vessels (10-200,000 L, 0.1-0.6 MPa, 20-40°C) are the industry standard for microbial fermentation. Configured with 2-3 Rushton turbines (D/T = 0.33-0.5) on a bottom-entry shaft with API 682 Plan 53 double mechanical seal, 4 baffles (T/12 width), and a ring sparger (perforated ring at the bottom). Heat transfer via half-pipe or dimple jacket (U = 300-500 W/m²K) removes metabolic heat (5-15 kW/m³ for high-density cultures) and maintains ±0.5°C temperature control. Advanced features: dissolved oxygen probe (polarographic, 0-150% sat.), pH probe (±0.02 pH), and antifoam control (capacitive foam detector triggering antifoam dosing). Fed-batch mode with exponential substrate feeding achieves cell densities of 50-100 gDW/L for E. coli and 30-50 gDW/L for yeast.
• **Air-Lift Fermentation Reactors:** These tower-type vessels (5-50 m height, 0.5-5 m diameter, 0.1-0.3 MPa) eliminate mechanical agitation, using compressed air for both oxygen supply and mixing. The internal loop design (draft tube inside the vessel) creates a density differential: aerated liquid in the riser is less dense than non-aerated liquid in the downcomer, driving circulation at 0.5-1.5 m/s superficial velocity. Advantages: lower shear stress (critical for shear-sensitive mycelial fungi and plant cell cultures), lower energy consumption (0.5-2 kW/m³ vs. 2-10 for STR), and no mechanical seal (reduced contamination risk). kLa = 0.03-0.15 s⁻¹ (lower than STR) limits application to low-OUR processes (antibiotics, enzymes, single-cell protein). Scale-up follows geometric and dynamic similarity (constant kLa or constant P/V).
• **Single-Use (Disposable) Fermentation Reactors:** These vessels use pre-sterilized, gamma-irradiated (25-40 kGy) flexible plastic bags (EVA or PE multi-layer film, 50-2,000 L) installed in rigid support containers, replacing the stainless steel vessel. Benefits: no SIP/CIP validation (the bag is pre-sterile), zero cross-contamination risk (disposal after each batch), rapid product changeover (1-2 hours vs. 4-8 hours for stainless steel CIP/SIP), and reduced capital investment (50-70% lower for equivalent capacity). Limitations: lower operating pressure (< 0.05 MPa), lower kLa (0.01-0.08 s⁻¹ using oscillating or wave-induced mixing rather than impellers), limited temperature range (20-40°C), and *extractables and leachables* from the plastic film that must be characterized per USP <665> and <1665>. Preferred for: clinical trial material, cell therapy, and multi-product facilities.

Fermentation Reactor Types Comparison Matrix

Frequently Asked Questions (FAQ)

Q: What is kLa and why is it the critical parameter for aerobic fermentation reactor design?

A: kLa (volumetric gas-liquid mass transfer coefficient, in s⁻¹) quantifies the rate at which oxygen transfers from gas bubbles to the liquid medium. It determines the maximum oxygen delivery rate OTR = kLa·(C* - C_L), where C* is the oxygen solubility at the gas-liquid interface (approximately 7-8 mg/L for air at 1 atm, 30°C) and C_L is the dissolved oxygen concentration. If kLa is too low, oxygen becomes the growth-limiting substrate, and the culture switches to anaerobic metabolism (producing unwanted by-products like ethanol or lactate). Design target: kLa must satisfy OUR = qO2·X with a 20-50% safety margin. For high-density E. coli (X = 50 gDW/L, qO2 = 15 mmol/gDW/h), OUR = 750 mmol/L/h ≈ 5.6 gO2/L/h, requiring kLa > 0.15 s⁻¹ at C* = 8 mg/L.

Q: How is sterile-in-place (SIP) validation performed for a fermentation reactor?

A: SIP validation per ICH Q5A and ASME-BPE requires: (1) Installation Qualification (IQ) verifying steam supply capacity (saturated steam at 121°C, 1.05 barg, sufficient flow for all ports), sparger and seal steam supply, and sterile filter integrity; (2) Operation Qualification (OQ) mapping cold spots using 12-20 thermocouples placed at: vessel bottom, sparger, seal area, sample valve, harvest valve, and feed ports—minimum temperature 121°C must be achieved at all locations for 15 minutes (standard) or 30 minutes (prions/high-bioburden); (3) Performance Qualification (PQ) with biological indicators (Geobacillus stearothermophilus spores, 10⁶ CFU, D121 = 1.5-2.0 min) achieving SAL < 10⁻⁶ (no growth after 7 days incubation). SIP cycles are re-validated annually or after any piping modification.

Q: What is the Monod equation and how is it used for fed-batch fermentation control?

A: The Monod equation μ = μmax·S/(Ks + S) predicts the specific growth rate μ (h⁻¹) as a function of the limiting substrate concentration S (g/L). For E. coli on glucose, μmax = 0.4-1.0 h⁻¹ and Ks = 0.01-0.05 g/L. In fed-batch mode, the substrate feeding rate F(t) is controlled to maintain S at a low level (0.01-0.1 g/L) that limits μ to 0.1-0.3 h⁻¹—preventing the Crabtree effect (overflow to ethanol in yeast) or acetate formation in E. coli. The *exponential feeding profile* F(t) = (μset·V0·X0)/(Sf·Yx/s) * e^(μset·t) delivers substrate matching the exponentially growing biomass demand, maintaining S at the target concentration without online measurement. Feedback control (online glucose analyzer or DO-stat) corrects for deviations.

Q: When should a single-use (disposable) fermentation reactor be used instead of a stainless steel STR?

A: Single-use reactors are preferred when: (1) batch sizes are small (50-2,000 L)—typical for clinical trial material and orphan drug manufacturing; (2) multi-product facilities require rapid changeover—single-use eliminates CIP/SIP validation between campaigns (1-2 hours vs. 4-8 hours), increasing facility utilization by 20-40%; (3) the process is shear-sensitive—wave-induced or oscillating mixing generates lower shear than impellers, beneficial for mammalian cells and plant cell cultures; (4) capital investment must be minimized—single-use eliminates stainless steel SIP/CIP utilities and their validation, reducing installed cost by 50-70%. Limitations: lower pressure (< 0.05 MPa), lower kLa, extractables/leachables, and higher per-batch consumable cost ($500-5,000 per bag). For large-scale (> 2,000 L) production of established products, stainless steel STRs remain more economical.
