Standards Used in Reactor Manufacturing: An Engineering Guide

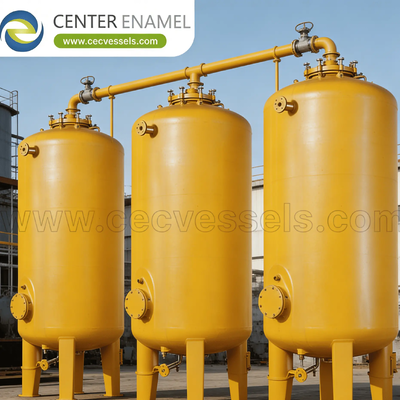

Manufacturing an industrial reactor is a high-stakes engineering endeavor. Because these vessels often operate under extreme pressure, high temperatures, and with hazardous chemicals, they are governed by a strict hierarchy of international standards. Compliance is not merely a legal requirement; it is the fundamental assurance of plant safety and process integrity.

The standards applied to a reactor generally fall into three categories: Mechanical/Pressure Integrity, Material Specification, and Industry-Specific Quality Standards.

These are the most critical standards, dictating the design, fabrication, and testing of the pressure-retaining envelope.

• ASME Boiler and Pressure Vessel Code (BPVC), Section VIII: The global "gold standard."

  • Division 1: Design-by-rule (The most common for industrial reactors).

  • Division 2: Design-by-analysis (Uses complex modeling to allow for thinner walls).

• Pressure Equipment Directive (PED 2014/68/EU): Mandatory for all pressure equipment placed on the European market. It categorizes vessels based on pressure and volume and dictates the "CE" marking process.

• GB 150: The mandatory standard for pressure vessels manufactured and used in China. High-end manufacturers (like Center Enamel) often certify to both GB 150 and ASME for global project flexibility.

The structural performance of the reactor starts with the raw material and how it is joined.

• ASME Section II (Materials): Specifies the allowable materials (e.g., SA-240 316L) that have been tested and approved for pressure-retaining components.

• ASME Section IX (Welding and Brazing Qualifications): Dictates how welding procedures must be qualified and documented. It ensures the welder has the skill and the process (TIG/MIG) is compatible with the steel grade.

• ASTM International: Provides the fundamental specifications for the stainless steel sheets, pipes, and fittings used to build the reactor (e.g., ASTM A240 for stainless plates).

Depending on the end-use, the reactor may require additional certification beyond pressure safety.

Using an internationally recognized standard (like ASME) provides three key benefits:

1. Risk Mitigation: Uniform design formulas prevent "guessing" at structural thickness, which is the primary cause of vessel rupture.

2. Global Mobility: A vessel built to ASME or PED is easier to permit, inspect, and insure, regardless of where in the world the project is located.

3. Traceability: These standards mandate Mill Test Reports (MTRs) for steel and full welding documentation, allowing you to trace the history of every component in the vessel.

Q: What is the difference between "Code" and "Standard"?

A: A Code (like ASME BPVC) is a set of rules that has been adopted into law by a jurisdiction. Compliance is mandatory. A Standard (like an ASTM specification) is a set of technical definitions and guidelines; compliance is often voluntary unless referenced by a contract or a Code.

Q: Do I need ASME certification if my reactor is for the European market?

A: No, for the European market, you specifically need PED (Pressure Equipment Directive) certification to apply the CE mark. However, many global clients request ASME design because it is widely understood and respected. It is common for high-end manufacturers to provide "Dual-Certified" reactors that meet both ASME and PED requirements.

Q: What happens if a reactor is not built to any of these standards?

A: It is virtually impossible to commission or insure a reactor that lacks basic pressure vessel code certification (e.g., ASME or PED). It would pose a catastrophic safety risk, and regulatory bodies would forbid its operation.

Q: Why are surface finish standards (Ra) important for pharma reactors?

A: In pharma, the Ra (Roughness Average) standard determines the cleanability of the interior. A rough surface traps product, encourages bacterial growth, and prevents effective sterilization. Standards like ASME BPE (Bioprocessing Equipment) define these roughness limits to ensure the vessel can be truly "cleaned."
