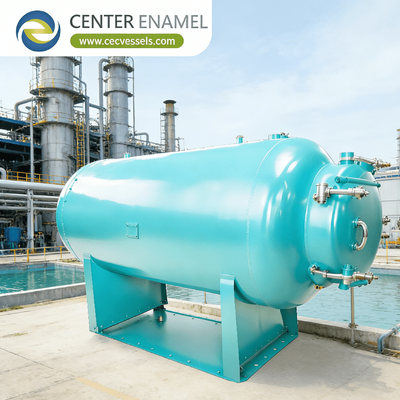

What is a Chemical Reactor and How Does It Work?
stainless steel chemical reactor
,chemical reactor with warranty
,industrial stainless steel reactor
What is a Chemical Reactor and How Does It Work?
In chemical engineering, a chemical reactor is an enclosed volume—typically a vessel or pipe—engineered to contain and control a chemical reaction. It serves as the "heart" of a chemical process plant, where raw materials (feedstocks) are transformed into valuable products.
Unlike a simple storage tank, a reactor is specifically designed to manage reaction kinetics, thermodynamics, and fluid dynamics to maximize efficiency, safety, and yield.
How Does a Chemical Reactor Work?
At its core, a chemical reactor creates a controlled environment where reactants interact. The "work" of the reactor involves balancing four critical factors:
-
Mixing & Contact: Bringing reactants together efficiently (e.g., using agitators or high-flow pipes) so they can collide and react.
-
Temperature Control: Managing the heat of the reaction. Exothermic reactions (which release heat) require cooling jackets or coils to prevent runaway, while endothermic reactions (which absorb heat) require heating systems.
-
Pressure Regulation: Maintaining specific pressures to ensure reactants remain in the desired phase (gas or liquid) and to accelerate reaction rates.
-
Residence Time: Controlling how long the material stays in the reactor. Too short, and the reaction won't complete; too long, and you may create unwanted byproducts.
Core Types of Chemical Reactors
Engineers classify reactors based on how reactants move through them. The three most common models are:
1. Batch Reactor (The "Cooking Pot" Model)
-
How it works: All reactants are loaded into the vessel at once, reacted until completion, and then discharged. The conditions (concentration, temperature) change over time.
-
Best for: Small-scale production, pharmaceuticals, and multi-product facilities where flexibility is needed.
-
Pros/Cons: Highly flexible but requires downtime for cleaning and reloading.
2. Continuous Stirred-Tank Reactor (CSTR)
-
How it works: Reactants are pumped in and products are pumped out continuously. An agitator ensures the contents are perfectly mixed, meaning the reaction occurs at the concentration of the product leaving the tank.
-
Best for: Large-scale, high-throughput liquid-phase reactions.
-
Pros/Cons: Excellent temperature control, but requires a larger volume to achieve the same conversion as other types.
3. Plug Flow Reactor (PFR)
-
How it works: Reactants flow through a long tube (or pipe) as a "plug." There is no back-mixing. The reaction progress changes as the material moves down the length of the tube—from 100% reactants at the inlet to 100% products at the outlet.
-
Best for: Fast reactions, gas-phase reactions, and large-scale industrial processes.
-
Pros/Cons: Highest conversion per unit volume, but managing temperature gradients (hot spots) can be difficult.
Technical Comparison Table
| Feature | Batch Reactor | CSTR | Plug Flow Reactor (PFR) |
|---|---|---|---|
| Operation Mode | Transient (time-dependent) | Steady State | Steady State |
| Mixing | High (Mechanical) | Perfect (Well-mixed) | None (Axial direction) |
| Scalability | Low (Small scale) | High (Continuous) | High (Continuous) |
| Best Application | Pharmaceuticals / Specialties | Bulk Chemicals / Wastewater | Petrochemicals / Gases |
Frequently Asked Questions (FAQ)
What is the primary difference between a batch and a continuous reactor?
A batch reactor runs in "batches," where everything happens inside the vessel at once, and you must stop to unload. A continuous reactor runs 24/7, with raw materials entering and products exiting in a constant stream, which is more efficient for large-scale manufacturing.
Why is temperature control so important in a reactor?
If the temperature isn't controlled, an exothermic reaction can lead to a "runaway" scenario where heat increases exponentially, potentially causing equipment damage or explosions. Conversely, if an endothermic reaction gets too cold, the reaction will simply stop, wasting raw materials.
What is a catalytic reactor?
Many industrial reactors are catalytic reactors (like Fixed Bed or Fluidized Bed). They contain a catalyst—a substance that speeds up the reaction without being consumed—to make the process faster and more efficient at lower temperatures.
The chemical reactor is the engine of the chemical industry. Whether it is a simple batch tank for producing vaccines or a massive plug flow furnace for cracking hydrocarbons, the goal remains the same: creating the optimal environment for chemistry to happen safely, efficiently, and profitably.
