Twin-Paddle Dryer: Principles, Dual-Heat Technology, and Industrial Applications

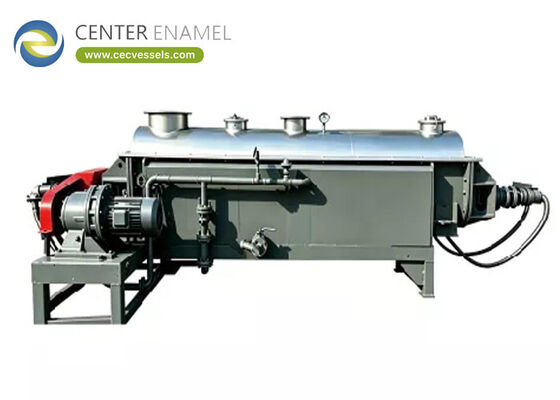

Industrial Twin-Paddle Dryer
,Twin-Paddle Dryer
In industrial sludge treatment, chemical processing, and large-scale food manufacturing, drying viscous pastes, heavy sludges, and bulk powders requires robust, energy-efficient thermal equipment. Conventional direct-contact drying systems often generate massive volumes of exhaust gas and struggle with sticky materials.
The twin-paddle dryer is an advanced, indirect-contact continuous thermal processor engineered to overcome these challenges. Utilizing a specialized dual heat-transfer structure featuring hollow heated paddles and an outer heated jacket, the twin-paddle dryer achieves exceptional thermal efficiency while processing difficult materials in a sealed, environmentally friendly environment.
The operational performance of a twin-paddle dryer relies on conductive heat transfer and precise mechanical agitation:
- Dual Heat-Transfer Structure: The system combines an outer heated jacket with internal hollow paddles mounted on dual rotating shafts. Thermal heating media (such as saturated steam, hot water, or thermal oil) circulates continuously through both the jacket and the interior of the paddles, maximizing the effective heat-transfer surface area.
- Low-Speed Mechanical Agitation: Intermeshing twin paddles agitate and turn the material gently at low rotational speeds. This continuous folding action promotes rapid moisture evaporation, prevents localized overheating, and ensures uniform drying across the entire material bed.
- Vapor Release and Enclosed Processing: Moisture released from the material is vented through exhaust ports on top of the housing, allowing for safe vapor collection or solvent recovery.
The mechanical configuration of the twin-paddle dryer provides distinct operational advantages over standard bulk dryers:
- High Thermal Efficiency & Low Energy Consumption: Because heat is transferred conductively via direct metal-to-material contact rather than through high-velocity gas streams, energy losses are minimized, resulting in high thermal coefficients.
- Dust-Free, Fully Enclosed Operation: Built with a sealed housing, the system operates in a completely enclosed manner, preventing dust emissions and ensuring an environmentally friendly workplace.
- Durable Design & Low Failure Rate: Heavy-duty construction, balanced shaft mechanics, and low-speed operation reduce mechanical wear, guaranteeing a long service life and minimal maintenance downtime.
- Broad Material Adaptability: Highly effective for processing challenging textures, including industrial sludge, sticky pastes, filter cakes, and fine powders.
| Parameter / Feature | Twin-Paddle Dryer | Industrial Disc Dryer | Vacuum Rake Dryer |
|---|---|---|---|
| Primary Mechanism | Conductive dual heating via jacket & hollow paddles | Conductive heating via stacked hollow discs | Conductive jacket/shaft heating under vacuum |
| Agitation Method | Dual intermeshing rotating paddle shafts | Fixed or rotating vertical scrapers/rakes | Rotating horizontal central shaft with rake arms |
| Material Suitability | Sludges, pastes, slurries, and bulk powders | Pasty textures, polymers, and sludges | Agglomerating powders, caking filter cakes |
| Environmental Control | Fully enclosed, dust-free continuous operation | Enclosed atmospheric or vacuum housing | Sealed vacuum chamber for solvent recovery |
| Best Suited Application | Municipal sludge, chemical pastes, and food processing | Polymer resins, chemical sludges, and filter cakes | Pharmaceutical powders and caking chemical compounds |
Q: What is a twin-paddle dryer?
A: It is an industrial indirect-contact thermal processor that utilizes a dual heat-transfer structure—comprising a heated outer jacket and hollow rotating paddles—to dry sludges, pastes, and powders efficiently.
Q: How does the twin-paddle design achieve high thermal efficiency?
A: By circulating heating media simultaneously through the jacket and the hollow interior of the paddles, the dryer maximizes conductive heat transfer surface area, significantly reducing energy consumption compared to convective dryers.
Q: Is the twin-paddle dryer environmentally friendly?
A: Yes. It operates within a fully enclosed, sealed housing structure that prevents dust leakage and ensures clean, emissions-controlled processing.
Q: What industries commonly utilize twin-paddle dryers?
A: They are widely deployed across environmental protection sectors (for municipal and industrial sludge drying), chemical manufacturing (for pastes and powders), and food processing plants.
