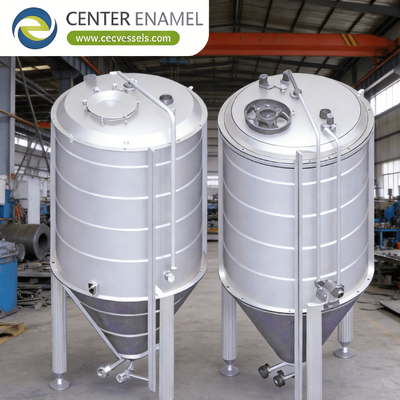

What Is a Stainless Steel Pressure Vessel?
stainless steel pressure vessel
,stainless steel reactor vessel
,pressure vessel with warranty
A stainless steel pressure vessel is a container engineered to hold gases or liquids at a pressure substantially different from the ambient pressure. These vessels are critical infrastructure in industries such as chemical processing, petrochemicals, oil and gas, pharmaceuticals, and food production.
Stainless steel is the preferred material for these vessels due to its high strength-to-weight ratio, exceptional corrosion resistance, and ability to maintain structural integrity across extreme temperature ranges.
Safety is paramount in pressure vessel engineering. Because these vessels store high-energy fluids, they must be fabricated according to rigorous international codes.
ASME Boiler and Pressure Vessel Code (BPVC), Section VIII: This is the global benchmark for pressure vessel design, fabrication, inspection, and testing. Most industrial vessels are built to "ASME Section VIII, Division 1."
Material Certification: Stainless steels, particularly 304L and 316L, are chosen because their low carbon content ensures weldability and resistance to intergranular corrosion during the fabrication process.
Inspection & Certification: Vessels must undergo non-destructive testing (NDT), such as X-ray inspection of welds and hydrostatic pressure testing, to ensure they can withstand their design pressure without failure.
An industrial pressure vessel is more than just a shell; it is a complex assembly of specialized components:
Shell: The primary body, usually cylindrical or spherical, designed to contain the pressure.
Heads: The end closures. Common types include torispherical, ellipsoidal, and hemispherical, chosen based on their ability to distribute stress evenly.
Nozzles: Engineered entry and exit points for fluids, designed to maintain the structural integrity of the shell at the point of connection.
Support Skirts/Legs: Designed to transfer the weight of the vessel—and the high-density fluids within—safely to the foundation.
| Advantage | Engineering Impact |
| Corrosion Resistance | Prevents degradation in aggressive chemical or high-moisture environments. |
| Thermal Performance | Maintains mechanical properties at cryogenic temperatures or high-heat processes. |
| Hygienic Surface | Easy to sanitize (CIP/SIP) for pharma/food applications. |
| Longevity | Low maintenance requirements and long service life compared to carbon steel. |
Q: What is the difference between Division 1 and Division 2 of ASME Section VIII?
A: Division 1 relies on design-by-rule (conservative formulas), making it the standard for most general industrial applications. Division 2 allows for design-by-analysis (more complex, using computer modeling). While Division 2 allows for thinner walls (saving material cost), it requires more rigorous inspection and documentation.
Q: Why is "316L" the most common grade for pressure vessels?
A: 316L contains molybdenum, providing superior resistance to pitting and crevice corrosion. The "L" denotes "low carbon," which prevents the formation of chromium carbides during welding, ensuring the vessel remains resistant to corrosion even at the weld joints.
Q: Can a pressure vessel be both a reactor and a storage tank?
A: A pressure vessel is often a component of a larger system. A storage tank is typically designed to hold product under minimal pressure, while a reactor is a pressure vessel specifically designed with internal agitation and heating/cooling jackets to facilitate chemical reactions.
Q: How often must a pressure vessel be inspected?
A: Inspection frequency is mandated by local jurisdictional laws and industry standards like API 510. Typically, internal and external inspections are required every 5 to 10 years, depending on the severity of the service (e.g., corrosive fluids require more frequent checks).
