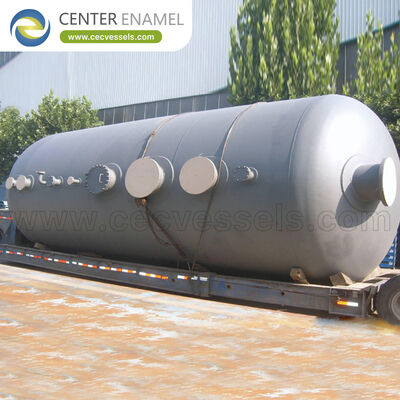

Answering the core question: What is a gas coalescing separator? A gas coalescing separator is a two-stage vessel that removes very fine liquid aerosol from gas by first merging the tiny droplets into larger ones and then separating the enlarged droplets by gravity or by a vane pack. In the first stage, gas passes through a bed of fine fibrous coalescing elements where droplets from 0.1 to 1 micrometre are captured by direct interception, inertial impaction and Brownian diffusion, and merge on the fibres into drops large enough to drain. In the second stage, a vane pack or a mesh pad removes those enlarged droplets, typically 10-40 micrometres, before they can be re-entrained. The combination achieves removal down to 0.3-1 micrometre with an efficiency of up to 99.98%, which is an order of magnitude finer than a conventional mesh pad scrubber and is what makes the device the standard choice upstream of molecular sieves, glycol contactors, amine units and fiscal meters.

1. How Coalescing Works and Why Two Stages Are Needed

The physics is counter-intuitive: the device does not filter the liquid out, it makes the liquid bigger and then separates it:

• The Three Capture Mechanisms: A fine fibre captures a droplet by one of three mechanisms depending on its size. Inertial impaction dominates above about 1-3 micrometres: the gas streamlines bend around the fibre but the droplet, having more inertia, cannot follow and strikes the fibre. Direct interception dominates around 0.1-1 micrometre: the droplet follows the streamline but the streamline passes within one droplet radius of the fibre, so the droplet touches and adheres. Brownian diffusion dominates below about 0.1 micrometre: random molecular motion drives the droplet into the fibre. The least efficient size, the most penetrating particle size, is typically around 0.1-0.3 micrometre, which is why performance is quoted at that point rather than at an average. Fibre diameter, packing density and gas velocity all shift the balance, and the element is designed so that the three mechanisms together give a high capture probability across the whole range.
• Coalescence and Drainage: Capture alone is useless unless the captured liquid is removed, and this is where element design matters. Droplets adhering to the fibres merge with subsequent droplets, growing until gravity and the drag of the gas force them to move along the fibre and then drain downward to a collection zone at the bottom of the element. The medium must therefore be both wettable by the liquid, so that droplets spread and merge rather than beading up and blocking the pores, and open enough that the accumulated liquid does not flood the element. This balance is why a coalescer is liquid-specific: an element optimised for hydrocarbon liquid performs poorly with water and vice versa, and why a stream carrying both needs either a two-stage arrangement or a general-purpose medium with a performance compromise.
• Why a Second Stage Is Essential: As droplets leave the coalescing element they are large but slow-moving, and, critically, they are at the point of maximum gas velocity because the elements occupy part of the flow area. If they are not captured immediately, the gas re-entrains them and the separator delivers exactly what it was meant to remove, sometimes worse than no separator at all because the aerosol has been concentrated. The second stage, a vane pack or a mesh pad, provides a low-velocity zone where the enlarged droplets separate by gravity and impaction and drain to the sump. This two-stage geometry is the defining feature of a filter separator and the reason it is more than just a filter: the first stage changes the droplet size distribution, the second does the separation.
• Re-Entrainment and Velocity Limits: Re-entrainment is the failure mode that governs the design. If the gas velocity at the liquid surface in the sump is too high, droplets are torn off the surface and carried out; if the velocity through the elements is too high, captured liquid is stripped off the fibres before it can drain. Both are managed by keeping the gas velocity below a limit that depends on the liquid surface tension and the density difference, which is why coalescing separators are generously sized relative to their throughput and why turndown matters as much as design flow. At very low flow the separator is safe from re-entrainment but the mechanisms weaken, so an efficient operating window, typically 40-120% of design, is specified rather than a single maximum.

2. Applications and Operating Practice

Four applications account for most installations, and each has a specific reason for choosing coalescing over conventional separation:

• Upstream of Molecular Sieve Dehydration: This is the classic application and the one where the consequence of failure is most expensive. A molecular sieve bed adsorbs water to below 1 ppm, but liquid hydrocarbon entering the bed is adsorbed in the pores and is not removed during regeneration; it progressively blocks the adsorption capacity, and during the thermal regeneration step it can crack and coke, permanently damaging the adsorbent. Liquid water is worse, because it causes the binder in the sieve beads to break down, producing fines that plug the bed and increase the pressure drop. A coalescing separator is therefore installed immediately upstream, removing aerosol to 0.3-1 micrometre, and the differential pressure across it is alarmed because element failure here is not a minor event but a bed replacement costing weeks of downtime.
• Upstream of Glycol Contactors and Amine Units: Liquid hydrocarbon entering a glycol dehydration contactor causes severe foaming, which reduces the contact efficiency, carries glycol overhead and can force the unit to shut down for cleaning and glycol replacement. In an amine treating unit, liquid hydrocarbon and the surfactants it carries cause foaming, amine loss and corrosion, and the degradation products formed accelerate the foaming further. In both cases the remedy costs far more than the separator, so a filter separator with coalescing elements is standard practice on the inlet. Many plants also install a carbon filter or a particulate filter ahead of the coalescer to remove the solids and the surface-active compounds that would otherwise blind the coalescing elements within weeks.
• Fuel Gas and Turbine Protection: Gas turbines and reciprocating engines are sensitive to liquid in their fuel, because droplets cause flame instability, hot section corrosion from salt and sulphur, and, in a severe case, thermal shock and blade damage. Fuel gas conditioning skids therefore use a coalescing filter separator as the core element, followed by a superheater that raises the gas 10-20°C above its hydrocarbon dew point as a second line of defence, guaranteeing that no condensation occurs downstream of the skid. The specification here is often written not as an efficiency but as a guarantee that no free liquid is present at the turbine inlet, which is why the skid includes a differential pressure alarm, a level alarm on the sump and an automatic drain.
• Monitoring, Change-Out and Maintenance: Coalescing elements are consumables, and their management determines whether the device performs. Differential pressure is the primary indicator: a new element starts at 25-100 mbar and elements are changed when the differential reaches 500-800 mbar, since beyond that the rising velocity through the remaining open area reduces efficiency and risks mechanical damage. Element life is typically 6-36 months and depends almost entirely on the solids loading, which is why a particulate pre-filter is so effective at extending it. A rising differential pressure that responds to liquid rather than to solids indicates flooding, which is addressed by checking the drain and the liquid load rather than by changing the elements. Level in the sump must be alarmed and drained automatically, because a flooded sump destroys the separation just as effectively as a failed element.

Gas Coalescing Separator Stages Comparison Matrix

Frequently Asked Questions (FAQ)

Q: What is the difference between a coalescing separator and a standard scrubber?

A: The difference is the droplet size each can handle and the mechanism each uses. A standard scrubber relies on gravity settling, assisted by a mesh pad or a vane pack, and removes droplets above about 5-10 micrometres; below that size the droplets follow the gas streamlines around the wire or vane and are not captured. A coalescing separator adds a first stage of fine fibrous elements that captures aerosol down to 0.1-1 micrometre by interception, impaction and diffusion, and merges it into droplets large enough for a second stage to remove. The result is removal to 0.3-1 micrometre at 99.98% against 5-10 micrometres for a mesh pad, which is an order of magnitude finer. The trade-off is that coalescing elements are consumables that require differential pressure monitoring and periodic replacement, whereas a mesh pad is essentially maintenance free.

Q: Why do coalescing elements need replacing if they only remove liquid?

A: Because in practice they also collect solids. Fine scale, sand, corrosion products, iron sulphide and compressor oil degradation products all arrive with the gas and are captured by the same mechanisms as the liquid. Solids do not drain away, so they progressively block the pore structure, the differential pressure rises, and eventually the element is blind. The rate depends almost entirely on the solids loading, which is why a particulate pre-filter upstream is the single most effective measure for extending element life, often by a factor of two to five. There is a second mechanism: liquid that is not fully drained, either because the liquid load exceeds the drainage capacity or because the medium has become contaminated by surfactants or by compressor oil, permanently wets the medium and increases the pressure drop in a way that cleaning cannot reverse.

Q: Can one coalescing element handle both water and hydrocarbon liquid?

A: Not optimally. Coalescing media are engineered around the surface chemistry of the liquid they must coalesce, because the droplet has to wet the fibre and spread in order to merge with the next droplet. A medium optimised for hydrocarbon is typically oleophilic and may shed water; one optimised for water is hydrophilic and may not coalesce oil. When a stream carries both, which is common in gas plant service, the usual solution is either to specify a general-purpose medium that handles both with a compromise in efficiency, or to install two stages, the first coalescing the dominant liquid and the second the other. In addition, the presence of surfactants, corrosion inhibitors or compressor oil can change the wetting behaviour entirely, which is why a change in upstream chemical injection sometimes causes an otherwise well-behaved coalescer to start carrying over.

Q: How do I know when a gas coalescing separator is not working?

A: Four signs, in the order they usually appear. A rising differential pressure across the elements, which indicates plugging by solids or flooding by liquid and, if the trend is steady rather than stepwise, points to solids rather than to a process upset. Liquid appearing downstream, detected either by the behaviour of the protected equipment, such as foaming in a glycol contactor or rising differential pressure in a molecular sieve bed, or by direct sampling and analysis. A flooded or non-draining sump, which is the most common single cause: if the automatic drain fails or the level transmitter is bridged, the sump fills, the gas velocity over the liquid surface rises and liquid is re-entrained regardless of element condition. And a step change in performance after a process upset, a chemical injection change or a compressor oil change, which points to contamination of the medium rather than to mechanical failure and usually requires element replacement.
