Gas-Liquid Separator Design Standards: Engineering Guide

The design of a gas-liquid separator is a critical process engineering task, serving as the frontline defense against entrained moisture, aerosols, and particulates. To ensure safety, process reliability, and operational longevity, separator design must adhere to established international standards.

This guide outlines the core design frameworks and sizing parameters essential for separator engineering.

1. Regulatory and Performance Standards

Industrial separators must satisfy both mechanical safety codes (for pressure containment) and process performance standards (for phase separation efficiency).

2. Fundamental Sizing Parameters

Separator sizing is a technical trade-off between Gas Capacity (handling vapor velocity) and Liquid Capacity (ensuring retention time).

A. Gas Capacity: Souders-Brown Relationship

To prevent "carry-over"—where liquid droplets are dragged out through the gas outlet—the gas velocity must remain below a critical threshold. The Souders-Brown equation is the industry standard for this calculation:

B. Liquid Capacity: Retention Time

Liquid separation efficiency relies on "retention time"—the duration required for gas bubbles to escape and liquid droplets to settle by gravity.

• Design Benchmark: Per API 12J, typical retention times range from 30 seconds to 3 minutes, depending on the oil viscosity and the presence of foam or emulsions.

3. Engineering Design Essentials

Orientation Selection

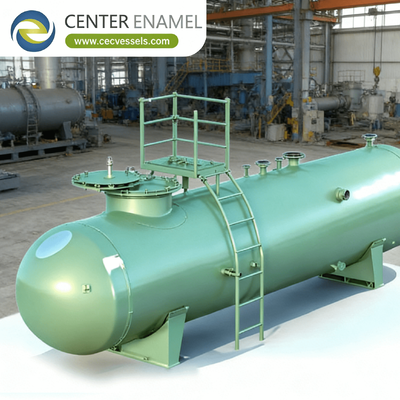

• Horizontal Separators: Optimal for high gas-to-liquid ratios (GLR). The large liquid surface area promotes rapid gas breakout.

• Vertical Separators: Ideal for low GLR or high-solids (sand) service. The conical bottom simplifies solid drainage and reduces the vessel's footprint.

Critical Internals

• Inlet Diverters: Mandatory to prevent the incoming stream from "shattering" into smaller droplets, which would complicate separation.

• Mist Extractors: Vane packs or wire mesh pads are installed at the gas outlet to coalesce microscopic mist into larger, drainable droplets.

• Vortex Breakers: Essential for preventing gas from being sucked into the liquid outlet line during high flow rates.

Frequently Asked Questions (FAQ)

Q: What is the difference between ASME Section VIII and API 12J?

A: ASME Section VIII is a mechanical code concerned with the pressure-retaining integrity of the vessel (shell, heads, weld quality). API 12J is a process standard concerned with functional design, performance, and efficiency (sizing, retention times, internal selection).

Q: What is the most common cause of separator failure?

A: Most failures are process-related: carry-over (liquid in the gas line) or carry-under (gas in the liquid line). These usually stem from improper level control tuning, high gas velocity exceeding the K-factor, or plugged mist extractors.

Q: How does H2S change the separator design?

A: In "sour service," you must adhere to NACE MR0175. This requires the use of specialized carbon steels with specific hardness limits, mandatory Post-Weld Heat Treatment (PWHT) to relieve stresses, and often specialized internal coatings.

Q: Why is the "K-factor" so important in separator design?

A: The K-factor quantifies the efficiency of your gas-handling internals. A higher K-factor means your mist extraction system is highly efficient, allowing you to design a smaller-diameter vessel for the same gas throughput—thereby reducing total project cost.
