What is a Gas-Liquid Separator? A Comprehensive Engineering Guide

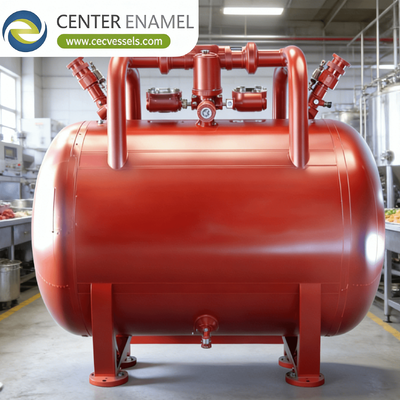

A gas-liquid separator (frequently referred to as a knockout drum, flash drum, scrubber, or vapor-liquid separator) is a specialized pressure vessel engineered to remove entrained liquid droplets and solid particles from a gas or vapor stream. In industrial processes, gas streams frequently carry moisture, condensate, or chemical aerosols due to condensation, pressure drops, or mechanical carryover. If left untreated, these liquid contaminants can cause severe damage to downstream equipment such as compressors, turbines, and catalysts through erosion, liquid hammering, and corrosion.
By applying fundamental physical mechanisms—including gravity settling, directional changes, centrifugal force, and media coalescence—gas-liquid separators ensure high-purity gas delivery and safeguard total system reliability.
Core Separation Principles
Gas-liquid separation relies on exploiting the density differences and inertia between the continuous gas phase and the dispersed liquid phase. Most industrial separators combine one or more of the following mechanisms:
-
Gravity Settling: The gas-liquid mixture enters a widened vessel chamber, reducing flow velocity. Because liquid droplets are significantly denser than gas, they naturally settle downward to the bottom of the vessel under the pull of gravity.
-
Centrifugal Force: The gas stream is directed through a tangential inlet or fixed vortex elements, forcing it into a high-speed rotational spiral. Denser liquid droplets and particles resist directional changes and fling outward against the vessel walls, draining down into a collection sump.
-
Inertial Impaction & Coalescence: The gas passes through internal mist eliminators, wire mesh pads, or vane packs. As the gas streamlines bend around obstacles, micro-droplets possess too much momentum to follow and impact the solid surfaces, coalescing into larger droplets that drop out of the stream.
Common Types of Gas-Liquid Separators
| Separator Type | Primary Mechanism | Best Suited For | Key Operational Advantage |
|---|---|---|---|
| Gravity Separator / Knockout Drum | Gravity settling and reduced velocity | Large fluid volumes, slug handling, and initial wellhead separation | Simple design, massive surge capacity, low pressure drop. |
| Centrifugal Separator | High-velocity vortex rotation | Compact spaces and continuous high-gas-flow rates | Non-mechanical, self-cleaning, high efficiency for droplets $>10\mu m$. |
| Filter-Separator / Scrubber | Cartridge filtration combined with mesh/vane packs | Compressor suction lines, high-purity gas processing | Captures ultra-fine aerosols and sub-micron particulate matter. |
Key Industrial Applications
-
Oil and Gas Production: Deployed at wellheads, offshore platforms, and pipeline compressor stations to separate crude oil, produced water, and natural gas streams.
-
Power Generation: Positioned before steam turbines to remove entrained condensate droplets, preventing catastrophic blade erosion and thermal shock.
-
Compressor Protection: Installed upstream of compressor suction ports (as suction scrubbers) to ensure zero liquid slugging enters the compression chambers.
-
Chemical and Petrochemical Processing: Used in distillation overheads, reactor vents, and recycling loops to recover valuable volatile solvents and protect catalysts.
Frequently Asked Questions (FAQ)
Q: What is the difference between a two-phase and a three-phase separator?
A: A two-phase separator isolates gas from a liquid phase (which may be a combined mixture of oil and water). A three-phase separator uses internal weir configurations and gravity zoning to separate a well stream into three distinct operational products: gas, crude oil, and free water.
Q: How small of a liquid droplet can a standard gas-liquid separator remove?
A: Standard centrifugal or gravity separators typically capture droplets larger than 10 microns with high efficiency (99%). If ultra-fine aerosols or droplets down to 1 to 4 microns must be removed, a coalescing filter-separator with specialized mesh pads is required.
Q: Why do gas-liquid separators need mist eliminators?
A: Mist eliminators (such as wire mesh pads or vane packs) act as the final polishing stage inside the vessel. They catch fine mist and lingering micro-droplets that would otherwise be swept out by the exiting gas stream, ensuring minimal liquid carryover.
Q: Do gas-liquid separators require continuous maintenance?
A: Most industrial separators have no moving parts and are virtually maintenance-free. Operational requirements are generally limited to monitoring liquid level control valves, checking automated drain traps, and occasionally inspecting internal mesh pads or filter elements during scheduled plant turnarounds.
