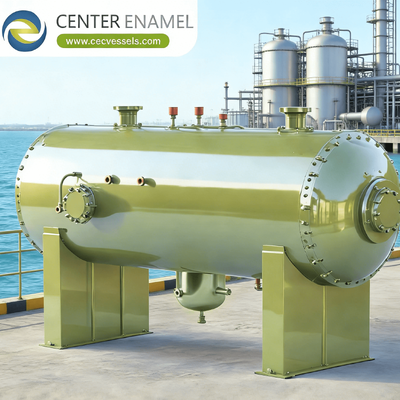

Gas-liquid separation is a core unit operation utilized across the oil and gas, petrochemical, power generation, and chemical manufacturing industries. The primary objective is to separate a mixed-phase fluid stream into distinct gas and liquid fractions that are clean and free of cross-contamination. Whether removing condensate from natural gas transmission lines, protecting downstream compressors from liquid slugs, or recovering valuable reaction products, understanding the underlying physics is essential for designing efficient separation equipment.
At its core, gas-liquid separation relies on exploiting the physical property differences—specifically density, viscosity, and momentum—between the continuous gas phase and the dispersed liquid phase.
Any mechanical separator—whether a simple horizontal knock-out drum or an advanced multi-stage filter-separator—employs one or more of the following fundamental principles:
-
Momentum (Inertial Separation): When a fluid stream undergoes a sudden change in direction or velocity, gas molecules easily follow the new flow path due to their low mass. Conversely, heavier liquid droplets and solid particles possess greater momentum, causing them to break away from the gas stream and impact collection baffles or vessel walls.
-
Gravity Settling: In a widened vessel section, gas velocity drops significantly. Under the pull of gravity, liquid droplets settle downward if the downward gravitational force exceeds the upward drag force exerted by the flowing gas. Terminal settling velocity is mathematically modeled using modified forms of Stokes' Law or Newton's Law, depending on droplet size and Reynolds numbers.
-
Coalescing: Microscopic droplets and sub-micron aerosols (often under 10 microns) lack sufficient mass to settle via gravity or momentum alone. Coalescing media—such as knitted wire mesh pads, corrugated vane packs, or specialized fiber cartridge elements—force small droplets to collide, merge into larger droplets, and gain enough weight to precipitate out of the gas stream.
| Separation Mechanism | Driving Force | Typical Droplet Size Target | Primary Equipment Type |
|---|---|---|---|
| Gravity Separation | Density differential & gravitational pull | Large droplets ($>150\,\mu m$) | Horizontal and vertical knock-out drums |
| Centrifugal Action | Rotational acceleration (G-force) | Medium to large droplets ($>10\,\mu m$) | Vortex separators, cyclone tubes |
| Coalescing & Filtration | Surface interception & droplet merging | Ultra-fine aerosols ($0.3\,\mu m$ to $10\,\mu m$) | Filter-separators, mesh demisters, vane packs |
Engineers must account for several operating variables when sizing and specifying a gas-liquid separation system:
-
Gas and Liquid Flow Rates: Volumetric flow rates dictate the vessel cross-sectional area required to maintain allowable gas velocities and prevent re-entrainment of already-separated liquids.
-
Retention Time: The duration that liquid must remain in the vessel's bottom sump (or boot) to allow dissolved or entrained gas bubbles to escape back to the gas phase before the liquid is drained.
-
Fluid Properties: Viscosity, surface tension, and relative density heavily influence droplet terminal velocity and coalescence efficiency. High viscosities or low surface tensions require specialized internal geometries.
Q: What is the main difference between a two-phase and a three-phase gas-liquid separator?
A: A two-phase separator isolates a combined liquid phase from a gas stream. A three-phase separator includes internal weir plates, water boots, and gravity-zoning internals to separate the liquid feed into three distinct streams: gas, crude oil, and free water.
Q: Why do sub-micron liquid aerosols present a major challenge in gas-liquid separation?
A: Sub-micron droplets possess extremely low mass and momentum, allowing them to travel smoothly along gas streamlines without responding to gravity settling or standard momentum changes. Capturing them requires high-efficiency coalescing filter elements that force droplets to merge into larger sizes before removal.
Q: What is liquid re-entrainment, and how is it prevented?
A: Re-entrainment occurs when high gas velocities sweep previously separated liquid off the surface of internal collection pools or mist eliminator pads back into the clean gas stream. It is prevented by maintaining proper vessel sizing, keeping gas velocities below critical K-values, and utilizing effective drainage channels.
Q: Do all gas-liquid separators require active power sources?
A: No. Most conventional mechanical separators (such as gravity drums and centrifugal cyclones) have no internal moving parts and rely entirely on the kinetic energy and pressure of the incoming fluid stream to perform separation.
For a comprehensive review of these concepts, you can watch the PetroSkills Gas-Liquid Separation Fundamentals video.
