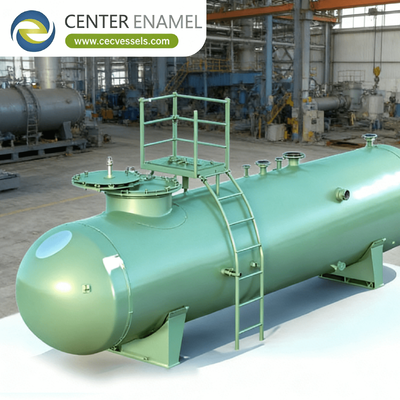

Design and Capabilities of Gas-Liquid Separators

A gas-liquid separator is a sophisticated pressure vessel engineered to partition multiphase streams into distinct gas and liquid components. Its fundamental capability is the protection of downstream assets—such as compressors, turbines, and heat exchangers—by removing entrained moisture, aerosols, and particulate matter that cause corrosion, fouling, and mechanical fatigue.

The design of an effective separator is a balancing act between fluid dynamics and geometric configuration, optimized to maximize phase separation efficiency while maintaining operational stability.

To achieve high-purity output, professional-grade separators are divided into four specific functional zones, each designed for a unique mechanical task:

• Inlet Zone: Engineered to dissipate the momentum of the incoming stream. Through the use of inlet diverters (baffles or cyclonic inserts), the zone prevents the incoming fluid from "shattering" into smaller, harder-to-separate droplets.

• Gravity Settling Zone: A quiescent "quiet zone" designed to allow gravity to act on droplets. The cross-sectional area here is critical, as it dictates the fluid velocity.

• Coalescing Zone: Contains internal media (vane packs, wire mesh, or filter cartridges) that forces tiny aerosols to collide and merge. This increases droplet diameter, drastically accelerating the settling rate.

• Outlet Zone: Ensures the exit of purified streams. It includes level controls and vortex breakers (to prevent gas entrainment in the liquid line) and mist extractors at the gas outlet to catch any final aerosols.

Engineers size separators based on the physical requirements of the process stream:

To prevent "carry-over" (where liquid escapes through the gas outlet), gas velocity must remain below a critical limit, calculated as:

• K-factor: The efficiency coefficient of the separator’s internals. Higher K-values (e.g., in cyclonic or vane-pack designs) allow for smaller, more efficient vessel diameters.

For gravity-based separation, efficiency is driven by droplet size:

Designers prioritize increasing D (droplet diameter) through coalescing internals, as the settling velocity (v_t) increases by the square of the droplet diameter.

Q: What is the difference between a "Knockout Pot" and a "Gas Scrubber"?

A: A Knockout Pot is a lower-efficiency, bulk-removal vessel designed to handle high liquid volumes or "slugs." A Gas Scrubber is a high-efficiency vessel equipped with advanced internals (cyclones or filters) designed to remove microscopic aerosols and fine dust to protect sensitive rotating equipment.

Q: How do I handle foaming crude oil in the design?

A: Foaming is a major design constraint. It requires increasing the residence time—often by 2x or 3x—to allow the foam to break. Engineers also frequently specify internal "foam breakers" or chemical injection ports to prevent foam from entering the gas outlet.

Q: What is "Carry-under" and how is it solved?

A: Carry-under is the presence of gas bubbles in the liquid discharge. It is usually solved by installing a vortex breaker over the liquid outlet nozzle to prevent the formation of a liquid whirlpool that would pull gas down into the drain line.

Q: Why choose a Filter-Separator over a simple Cyclone Separator?

A: A Cyclone Separator uses centrifugal force to remove bulk liquids and large solids. A Filter-Separator incorporates a secondary stage of high-efficiency fiber-media cartridges, capable of removing sub-micron particles and aerosols that cyclonic action simply cannot catch.
