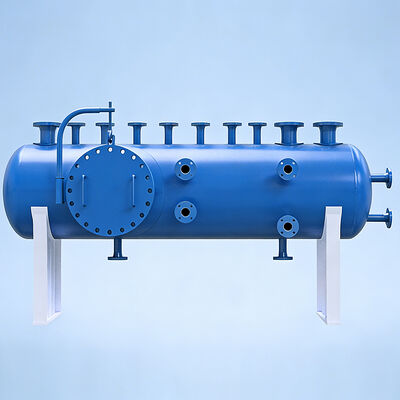

High-DHC Stainless Steel Fuel Filtration Systems with Integrated Safety Monitoring

In heavy industry, power generation, and maritime logistics, fuel contamination by particulates and water represents a leading cause of engine wear and catastrophic injection system failure. Traditional filtration units often require frequent element changes, driving up maintenance overhead and risking system down-time. High Dirt Holding Capacity (DHC) Stainless Steel Fuel Filtration Systems address these vulnerabilities. By maximizing media surface volume within a rugged 316L housing and incorporating continuous, automated safety arrays, these systems preserve critical equipment uptime and maintain steady fuel-delivery specifications.

The core design parameter of an advanced industrial filter is its Dirt Holding Capacity (DHC)—the total mass of a specific contaminant that a filter element can trap before its differential pressure reaches the maximum terminal threshold.

The fluid flow through a porous filtration medium can be modeled by a modified form of Darcy’s Law, which determines the pressure drop ( P) across the filter matrix:

High-DHC elements achieve high efficiency by maximizing the internal void volume (V) through graded-density depth filtration media. This structure captures larger particles on the outer boundaries while capturing smaller particles deeper within the core, preventing premature surface blinding and keeping Delta P low for extended operating lifespans.

Industrial fuels, particularly marine diesels, heavy fuel oils (HFO), and modern biodiesels, carry inherent chemical hazards. Biodiesels are hygroscopic, drawing in water that promotes Microbial Induced Corrosion (MIC), while heavy oils often require pre-heating up to 90^circtext{C} to manage viscosity.

By utilizing low-carbon 316L Stainless Steel, the filtration housing resists intergranular corrosion along weld lines. This provides a clean, zero-shedding internal boundary that complies with ASME Section VIII pressure vessel construction standards.

A premium high-DHC system transitions fuel filtration from a passive mechanical process to an active, data-driven node within a plant’s SCADA network. Integrated electronic monitoring safeguards the engine asset by predicting maintenance intervals and identifying structural failures in real time.

• Differential Pressure Transmitters (DPT): Continuously logs the exact Delta P across the element. As the element nears its maximum DHC, the smart transmitter triggers a predictive warning at 75% loading, followed by an automatic bypass or line-switch command before element collapse occurs.

• Optical Water-in-Fuel Sensors: Placed in the filtration sump, these sensors continuously measure infrared light attenuation to detect free and emulsified water. When a high-water boundary is breached, the controller activates an automated pneumatic drain valve to dump water without disrupting fuel flow.

• Downstream Particulate Counters: Laser-diode scanners monitor fluid clarity post-filtration. If an unexpected drop in filtration efficiency occurs—indicating media rupture or a compromised seal—the system activates a fast-acting isolation valve to shield the injection pumps.

To maximize the value of a high-DHC system, maintenance managers should track the Beta Ratio (beta_x) alongside sensor logs. The filtration efficiency (E) is derived from the Beta Ratio:

E = left(1 - frac{1}{beta_x}right) cdot 100

A high-performance system targets beta_{x} ge 1000 (99.9% removal efficiency) for critical particle boundaries (e.g., 4mutext{m} or 7mutext{m}). Because the high-DHC architecture retains significantly more contaminant mass per square meter of media, the physical interval between filter change-outs is extended by up to 300% compared to standard pleated paper alternatives.

Q: What exactly is the benefit of a "High DHC" filter element?

A: High Dirt Holding Capacity means the filter element contains more internal void spacing designed to distribute captured particles through its depth. This prevents surface plugging, allows the filter to run longer at low differential pressures, and minimizes physical filter replacement costs.

Q: Why is stainless steel required if the fuel is non-corrosive?

A: While pure fuel is non-corrosive, industrial storage systems introduce water condensation, biological contaminants, and sulfur components. Over time, these form acids and encourage bacterial colonies that rapidly pit carbon steel housings, leading to particulate contamination downstream.

Q: Can the automated safety system handle sudden fuel slugs of water?

A: Yes. The integrated automated control loop utilizes continuous capacitance or optical water sensing. If a massive water slug enters the separator, the PLC opens the automated drain line immediately and can trigger a primary intake divert valve to protect the engine if the water level exceeds drainage speed.

High-DHC stainless steel fuel filtration systems represent a critical defense line for high-output industrial combustion engines and fuel transfer loops. By pairing depth-filtration media with the corrosion resistance of 316L stainless steel and managing the entire system through automated sensor loops, industrial operators eliminate maintenance blind spots, lower operational costs, and secure absolute processing reliability.
