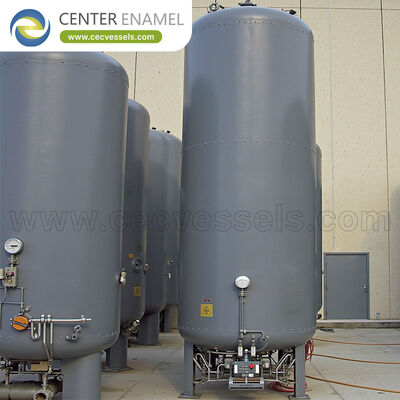

Answering the core question: What is a pipeline gas separator? A pipeline gas separator is a pressure vessel installed at a defined point along a gas transmission or gathering system to remove free liquids and solids from the flowing gas so that the gas meets contract specification and does not damage equipment. It is found at four positions: at compressor station suction and discharge, at fiscal meter stations, at city gate and receipt points, and downstream of a pig receiver. Sizing follows the Souders-Brown equation with a K factor of 0.08-0.25 m/s depending on orientation and mist eliminator type, with liquid holdup of 3-15 minutes and a carryover target below 0.1 US gallon per million standard cubic feet. Transmission pressures of 40-100 bar make the vessel thick-walled and expensive, but the separator is a small fraction of the cost of the compressor, the meter run or the pipeline it protects.

1. Where Pipeline Gas Separators Are Installed and Why

Each position on a pipeline has a different liquid source and a different piece of equipment at risk:

• Compressor Station Suction and Discharge: A centrifugal or reciprocating compressor is the most expensive and the most liquid-sensitive item on a pipeline, so separators are installed on both sides. On the suction side, the scrubber must catch any liquid arriving from upstream, because a slug entering a centrifugal compressor causes immediate blade and seal damage and, at the very least, severe imbalance. Suction scrubbers are therefore compact, vertical, with a holdup of only 1-3 minutes but with a fast high-high level trip and often a quick-closing inlet valve. On the discharge side the duty changes: the gas is hot, typically 50-90°C after compression, and part of the compressor lubricating oil and any heavier hydrocarbon fractions condense on cooling, so a discharge scrubber with an aftercooler removes both liquid hydrocarbon and lube oil before the gas re-enters the pipeline.
• Fiscal Meter Stations: Where gas changes ownership, measurement accuracy has direct financial consequences, and liquid is one of the largest sources of measurement error. An orifice meter with liquid present reads incorrectly because the two-phase flow changes the discharge coefficient and because liquid accumulates in the impulse lines and in the plate; an ultrasonic meter suffers signal attenuation and spurious readings from droplets and from a liquid film on the transducer faces. A meter station separator is therefore specified with a filter separator or a coalescing element, removing droplets to 0.3-1 micrometre, and the meter run is installed downstream with a straightening vanes section and the required upstream straight length. Many contracts explicitly require a separator immediately upstream of the meter and specify a maximum liquid content.
• City Gate, Receipt and Delivery Points: At the point where gas enters a distribution system or transfers between operators, the separator serves a custody and a protection role. It removes any liquid and solids that accumulated in the upstream system, protects the pressure regulating and overpressure protection equipment, and provides a sample point and a liquid measurement point so that any liquids received can be accounted for. These stations almost always include a filter separator rather than a simple scrubber, because distribution systems are very sensitive to compressor oil and to fine solids, which foul regulators and odourisation equipment. Where the gas is to be odourised, good separation matters for a second reason: liquids absorb and desorb the odorant unevenly, so poor separation produces inconsistent odour levels downstream.
• Pig Receivers and Slug Management: Pigging a transmission line pushes accumulated liquid ahead of the pig, and a single pigging operation can deliver 5-500 m3 of liquid to the receiving station in a short period. A conventional separator cannot absorb this; the standard arrangement is a dedicated slug catcher, usually a finger or harp arrangement of large-diameter pipe with a volume of 100-3,000 m3, followed by a conventional separator to polish the gas. The slug catcher must be sized from a transient flow simulation of the specific line rather than from steady-state rates, because the arrival rate depends on terrain, on the pig speed and on how much liquid accumulated. Receiving facilities also need a pig signal, a bypass for the initial gas surge, and a liquid handling system that can accept the slug without over-pressuring the downstream tank.

2. Sizing and Operating a Pipeline Gas Separator

Three decisions determine whether the separator performs across the whole operating range of the pipeline:

• Sizing Across the Flow Range: A pipeline separator must work on day one and twenty years later, and the two cases are usually opposite. Early in the life of a line the flow is at or near design and the vessel is gas-capacity limited, so the Souders-Brown criterion sets the diameter. Later, as field production declines or as the line is operated at lower pressure, the gas velocity falls and the vessel becomes oversized, which sounds safe but creates a real problem: at very low velocities the mist eliminator operates below its efficient range, and droplet re-entrainment from the liquid surface can worsen. Designers therefore check three cases as a minimum: maximum flow, normal flow, and minimum turndown flow, typically 20-30% of design, and they select a mist eliminator whose efficient range covers all three, often a vane pack rather than a mesh pad for that reason.
• Mist Elimination and Filter Separators: Gravity alone leaves too much liquid for pipeline service. A knitted wire mesh pad removes droplets above 5-10 micrometres at up to 99.9% efficiency with a pressure drop of only 25-75 mm H2O, and is adequate for general duty. Where the specification is tighter, a filter separator combines a first stage of coalescing filter elements, which capture fine droplets and merge them into larger ones, with a second stage vane pack that removes the enlarged droplets, achieving removal to 0.3-1 micrometre at 99.98%. The operating discipline this demands is differential pressure monitoring: the elements are replaceable, they plug with solids and with compressor oil, and a rising differential pressure across the first stage is the signal to change them before they fail or before the rising velocity through the remaining elements destroys their efficiency.
• Level Control, Liquid Disposal and Safety: Liquid removal is where pipeline separators most often fail in service. The vessel needs two independent level transmitters, a high-level alarm, and a high-high level trip that protects the downstream equipment rather than merely announcing a problem; on a compressor suction scrubber the trip typically shuts down the compressor. The dump valve must be sized for the maximum liquid rate, not the average, and must be erosion resistant, because produced liquids carry sand and because a throttling valve across a high pressure drop erodes quickly; a level control valve with a hardened trim or a dedicated on-off dump valve with a separate level switch are the usual answers. The liquid must go somewhere, normally to a produced water or condensate tank with vapour recovery rather than to an open pit, and the vessel must have a relief device per API 520 sized for the blocked liquid outlet case and for fire exposure.

Pipeline Gas Separator Positions Comparison Matrix

Frequently Asked Questions (FAQ)

Q: What is the difference between a pipeline gas separator and a production separator?

A: A production separator handles well fluids at the field, where the gas, oil and water rates fluctuate with reservoir behaviour and where the liquid fraction can be large and unpredictable; it is often a three-phase vessel with a weir and an interface controller, and it may be followed by a heater treater or an electrostatic desalter. A pipeline gas separator handles gas that has already been processed to near sales quality, where the liquid is a nuisance rather than a product: condensed water and hydrocarbon, compressor lube oil, and solids and scale from the pipe wall. It is usually a two-phase vessel with much smaller liquid volumes, it is sized more for velocity and mist elimination than for holdup, and it is there to protect a compressor, a meter or a downstream system rather than to separate a produced stream into saleable phases.

Q: Why is liquid in a gas pipeline such a problem?

A: Four reasons, each with a distinct consequence. It damages equipment: liquid entering a centrifugal compressor erodes and unbalances the rotor, and a slug can destroy it outright. It corrupts measurement: two-phase flow through an orifice or an ultrasonic meter produces errors of several percent, and at a fiscal meter station that is a direct and continuing financial loss with contractual consequences. It reduces capacity: liquid accumulating in low spots of the line reduces the effective flow area and increases the pressure drop, so the line delivers less gas for the same compression power. And it creates operational problems: liquids freeze or form hydrates at pressure reduction points, they foul regulators and odourisation equipment, and they promote internal corrosion, particularly where water and acid gases are present.

Q: How is a pipeline gas separator sized?

A: By the Souders-Brown equation, v_max = K x sqrt((rho_L - rho_V) / rho_V), which gives the maximum allowable gas velocity above which liquid is carried over. The K factor condenses vessel geometry and mist eliminator performance into one empirical number: typically 0.08-0.15 m/s for a vertical scrubber with a mesh pad, 0.15-0.25 m/s for a horizontal vessel or a vane pack, and higher still with a cyclonic inlet. The vessel diameter follows from the gas flow rate at actual conditions, divided by that allowable velocity. It is then checked against the liquid handling requirement, usually 3-15 minutes of holdup depending on duty, and against the turndown case at 20-30% of design flow. API 12J provides the industry framework, and where a slug is credible the steady-state calculation must be supplemented by a transient flow simulation.

Q: What maintenance does a pipeline gas separator need?

A: Four activities. Level instrumentation testing, typically every 3-6 months and at every shutdown, since the level system is what actually prevents carryover and is the most common cause of a liquid upset. Differential pressure trending across the mist eliminator or filter elements, which detects flooding and plugging early and drives element change-out before performance is lost. Internal inspection at each major turnaround, usually every 3-5 years, examining the inlet device, the mist eliminator for displacement and damage, the vessel wall for corrosion and erosion, and the outlet nozzle and vortex breaker for obstruction. And liquid handling checks, verifying that the dump valve seats and strokes properly and that the liquid disposal route is not blocked, because a separator with a working level controller and a blocked outlet will fill just as fast as one with no controller at all.
