What Is an Oilfield Three Phase Separator: Design, Weir and Interface Control

What Is an Oilfield Three Phase Separator: Design, Weir and Interface Control

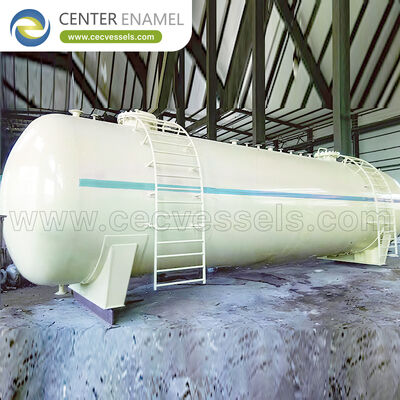

Answering the core question: What is an oilfield three phase separator? An oilfield three phase separator is a horizontal pressure vessel that separates a wellstream into gas, crude oil and produced water in a single shell, using gravity for all three phases and internals to manage the oil-water interface. Gas is separated by the Souders-Brown velocity limit with a K factor of 0.10-0.25 m/s, while oil and water are separated by settling, requiring a residence time of 5-30 minutes depending on the API gravity of the crude and the tightness of the emulsion. The oil-water split uses one of three internal arrangements: a weir plate that holds the oil layer, a boot on the underside of the vessel that collects water where the water volume is small, or a bucket and weir combination where both volumes are significant. Interface level control is the critical element, and a well-designed vessel holds a control band of 150-300 mm.

1. Internals: How the Oil-Water Split Is Made

Three internal configurations are used, and the choice follows from the ratio of water to oil:

• Weir Plate Design: The most common arrangement for a significant, steady water cut. A vertical weir plate is welded across the vessel partway along its length, with the oil side upstream and the water side downstream. Oil-water mixture enters at the inlet end, water settles below and oil accumulates above, and as the liquid level rises above the weir the oil overflows to the downstream compartment, from which it is drawn off under level control. Water is drawn from the bottom of the inlet compartment under interface level control. The weir height sets the oil inventory and therefore the oil residence time, which is the parameter that governs how much water separates out of the oil, so the weir is sized from the required residence rather than chosen arbitrarily. The drawback is that the weir occupies vessel volume and creates a compartment that can only be drained slowly during maintenance.
• Boot Design: Used where the water rate is small relative to the oil, typically below about 10-20% water cut, or where the water arrives intermittently. Instead of dividing the vessel lengthwise, a boot is a small vertical or horizontal vessel welded to the underside of the main shell near the outlet end, into which water settling out of the oil drains. The oil level is controlled in the main shell and the water-oil interface is controlled inside the boot, and because the boot is small, the interface responds quickly and is easier to control than in a full-diameter vessel. Boots are cheap and compact, but they provide limited water residence time and they cannot handle large or fluctuating water rates, so they are a fit for dry oil service with occasional water rather than for a mature, wet well.
• Bucket and Weir Design: Where both the water and the oil volumes are substantial and both residence times matter, a bucket and weir arrangement combines the two: a weir plate holds the oil and provides oil residence, while a bucket section, essentially an extended water compartment, provides the water residence needed for oil droplets to rise out of the water and be recovered rather than lost. This matters because the water leaving a separator carries oil with it, typically 100-1,000 mg/L, and that oil is both a product loss and a disposal problem. A longer water residence reduces it, and since produced water discharge limits are commonly 20-40 mg/L in many jurisdictions, the water compartment and any downstream skim vessel or hydrocyclone are designed together rather than separately.
• Inlet Devices, Baffles and Mist Extraction: Separation begins at the inlet, where a cyclonic, a vane or a simple baffle device dissipates the momentum of the incoming stream and makes the first coarse gas-liquid split. Getting this right is the single most effective measure, because an inlet jet that re-atomises liquid creates droplets far below the design cut size that no amount of residence time will settle. Perforated distribution baffles along the vessel equalise the gas velocity and prevent channelling toward the outlet, and a mist eliminator, a mesh pad or a vane pack, removes fine droplets from the gas before it leaves. Every liquid outlet is fitted with a vortex breaker, because a vortex at the outlet draws gas down into the liquid line and causes the very problem the vessel exists to prevent.

2. Sizing and Controlling a Three Phase Separator

Two independent criteria must both be met, and interface control is what determines whether the design works in practice:

• Gas Capacity: The vessel must be wide and long enough that the gas velocity stays below the Souders-Brown limit, v_max = K x sqrt((rho_L - rho_V) / rho_V), with K of 0.10-0.25 m/s for a horizontal three-phase vessel depending on the length-to-diameter ratio and the mist eliminator. The gas flow area is the cross-section above the liquid level, so the liquid level set point directly affects the gas capacity: a vessel run with a high liquid level has less gas area and a higher gas velocity, which is why the level set point is part of the design rather than an operating preference. Gas capacity usually governs at high gas-oil ratios and in the early life of a field, while liquid residence governs later as the water cut rises.
• Oil and Water Residence Time: The liquid side is sized by settling, using Stokes law with the appropriate droplet sizes. For water droplets settling out of oil, the design cut is typically 200-500 micrometres and the required residence depends strongly on the oil viscosity, which is why heavy crudes below about 20 API need 20-30 minutes while light crudes above 35 API may need only 5-10. For oil droplets rising out of water, the design cut is typically 150-300 micrometres and the residence is usually 3-10 minutes. Both are checked independently, and the vessel length is then set by the larger requirement. Temperature helps both: heating the stream to 40-70°C lowers the oil viscosity, increases the density difference and destabilises the interfacial film, so many three-phase separators are provided with a heating coil or are preceded by a heater.
• Interface Level Control: This is where three-phase separators succeed or fail. The interface between oil and water is rarely a sharp line; it is usually an emulsion band of 100-500 mm containing solids, and the controller must hold the interface within the vessel while the emulsion band grows and shrinks with rate and with chemical dosing. Differential pressure measurement is inadequate because the density difference between oil and water is small, so the signal is weak and the span is dominated by errors; instead, capacitance or conductance probes, guided wave radar, or a nucleonic density profiler in severe service are used. The control band must be wide enough to operate, typically 150-300 mm, and both the oil level and the interface need independent measurement with alarms and, for the gas outlet, a high-high level trip.
• Operating Problems: Emulsion, Sand and Foam: Three problems account for most performance complaints. Emulsion build-up at the interface, which grows until it occupies a large fraction of the vessel and eventually exits with both the oil and the water; it is managed by demulsifier injection upstream, by heat, by periodic draining of the emulsion band through a dedicated nozzle, and by not allowing the band to accumulate for months. Sand, which settles below the water, reduces the working volume and erodes the outlets; it is removed by jetting, and where sand production is continuous, by a dedicated sand handling system. Foam, which forms when gas breaks out of viscous or contaminated oil and can fill the vapour space and be carried into the gas outlet; it is controlled with antifoam injection, with an effective inlet device and by keeping the liquid level below the point where foam reaches the mist eliminator.

Three Phase Separator Internal Configurations Matrix

Frequently Asked Questions (FAQ)

Q: How do you size an oilfield three phase separator?

A: Two independent criteria, both of which must be satisfied. First, gas capacity: apply the Souders-Brown equation with a K factor of 0.10-0.25 m/s to find the minimum gas flow area, remembering that the gas area is the cross-section above the liquid level, so the level set point is a design input. Second, liquid residence: for water droplets of 200-500 micrometres to settle out of the oil, allow residence based on the oil viscosity, typically 5-30 minutes depending on API gravity; and for oil droplets of 150-300 micrometres to rise out of the water, allow 3-10 minutes. Take the largest result, check the turndown case at 30-50% of design, and confirm that the interface control band is at least 150-300 mm. API 12J provides the industry framework, and it is good practice to check the late-life case with a high water cut separately from the early-life high gas rate case.

Q: Why is interface level control so difficult?

A: Three reasons. The density difference is small: crude oil at 850 kg/m3 against produced water at 1,020 kg/m3 is a difference of only about 17%, so a differential pressure transmitter with a typical accuracy gives a signal with a large relative error and the interface can move substantially before the controller responds. The interface is not a line but a band: an emulsion layer of 100-500 mm, sometimes more, develops between the phases, and it grows and shrinks with rate, with temperature and with chemical dosing, so the controller is tracking a moving target rather than a fixed boundary. And the two outlets interact: drawing more water moves the interface down, which changes the oil residence and therefore the oil quality, so the two loops must be tuned together rather than independently. This is why capacitance, conductance or nucleonic interface detectors are used in preference to differential pressure.

Q: What is an emulsion band and how is it managed?

A: The emulsion band is the layer of unresolved water-in-oil or oil-in-water emulsion that accumulates at the interface, stabilised by asphaltenes, resins, fine solids and surface-active chemicals. It forms because the residence time in the vessel is not sufficient to break the tightest emulsion, so the unresolved material has nowhere to go and collects at the boundary. Left alone it grows until it occupies a large part of the liquid space, reducing the effective residence for both phases, and eventually it exits with the oil, causing off-specification basic sediment and water, or with the water, causing high oil in water. Management is by injecting demulsifier upstream at 5-50 ppm, by heating, by draining the band periodically through a dedicated nozzle located at the interface, and by not letting it accumulate for months between interventions. A rising band, measured with a nucleonic profiler or inferred from a drifting interface reading, is an early warning of a demulsifier or a chemical compatibility problem.

Q: What quality can a three phase separator achieve?

A: Typical figures, which depend heavily on the crude and on the residence time, are water in oil of 0.5-5% at the oil outlet and oil in water of 100-1,000 mg/L at the water outlet, with gas carryover below 0.1 US gallon per million standard cubic feet. That is not good enough for either sales or disposal: sales crude requires basic sediment and water below 0.5% and salt below 10 pounds per thousand barrels, which is reached in a heater treater and an electrostatic desalter, while produced water discharge or re-injection limits commonly require oil in water below 20-40 mg/L, reached with a skim vessel, hydrocyclones or induced gas flotation. The three-phase separator is therefore the bulk removal step whose job is to make the downstream equipment small and reliable, not to produce saleable oil and disposable water on its own.
