What Is a Dosing Pressure Vessel? Design, Principles & Applications

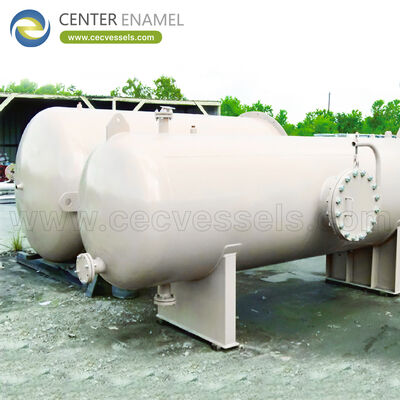

Answering the core question: What is a dosing pressure vessel, and how does it deliver precise quantities of chemicals into a process stream under controlled pressure? A dosing pressure vessel is a pressure-rated container paired with a metering pump (typically API 675-compliant) that injects precise volumes of treatment chemicals—coagulants, polymers, disinfectants, antiscalants, or pH adjusters—into a process stream at discharge pressures from 0.5 to 20 MPa. The system achieves steady-state dosing accuracy of ±1% and repeatability of ±3% through hydraulic diaphragm or plunger pump mechanisms, with flow rates from 0.1 to 5,000 L/h and stroke frequency of 30-180 strokes/min. Pulsation dampers and back-pressure valves maintain discharge stability for consistent chemical delivery.

The performance of a dosing pressure vessel system depends on pump displacement accuracy, hydraulic stability against process pressure fluctuations, and the chemical compatibility of wetted materials.

• Metering Pump Displacement Accuracy: API 675-compliant metering pumps achieve dosing accuracy through positive-displacement mechanisms: either a plunger (piston) directly contacting the chemical, or a hydraulic diaphragm isolating the process fluid from the pump drive. The steady-state accuracy of ±1% means the delivered volume over a defined time interval deviates by no more than 1% from the setpoint, measured under constant suction and discharge conditions. Dosing rate is controlled by adjusting stroke length (0-100%) and/or stroke frequency (variable speed drive), following the relationship Q = Vstroke * f * ηv, where ηv is volumetric efficiency (typically 90-97% for hydraulic diaphragm pumps).
• Pulsation and Pressure Stability Control: Positive-displacement metering pumps generate pulsating flow (one discharge pulse per stroke). A pulsation damper (bladder or charged accumulator type) installed downstream of the pump absorbs 80-95% of the pressure pulse, reducing peak-to-peak pressure variation from ±50% to ±5% of mean discharge pressure. A back-pressure valve set at 0.1-0.3 MPa above the maximum process line pressure prevents siphoning and ensures the pump check valves seat properly. Without these devices, line pressure fluctuations cause erratic check valve operation, reducing dosing repeatability from ±3% to ±15% or worse.
• Chemical Compatibility and Material Selection: Wetted components in the dosing vessel and pump head must resist corrosion by the dosed chemical. Common material selections include 316/316L stainless steel for most water treatment chemicals (ferric chloride, alum, PAC), PTFE/PVDF for sodium hypochlorite and concentrated acids, and Hastelloy C-276 for hydrochloric acid above 5% concentration. The suction strainer (100-mesh, 150 µm) protects pump check valves from particulate fouling that would degrade volumetric efficiency. Calibration columns (graduated to ±2 mL accuracy) installed on the suction side allow daily verification of actual dosing volume against pump stroke setting.

Dosing systems are configured by the pump mechanism and the number of dosing heads, each suited to specific accuracy, pressure, and redundancy requirements. Three principal designs cover the majority of industrial applications:

• Hydraulic Diaphragm Dosing Systems: These API 675-compliant systems use a hydraulic oil circuit to flex a PTFE diaphragm, isolating the chemical from the pump drive mechanism. Dosing ranges from 0.1 to 1,000 L/h per head at discharge pressures up to 20 MPa. The diaphragm rupture detection system (conductivity or pressure sensor between the diaphragm layers) provides fail-safe leak monitoring. Multi-head configurations (2-4 heads on a common gear box) allow redundant or multi-chemical dosing from a single drive, with automatic switchover on failure. Typical applications include boiler chemical dosing (oxygen scavenger, phosphate) and reverse osmosis antiscalant injection.
• Plunger (Piston) Dosing Systems: These positive-displacement pumps use a directly contacting plunger, offering higher volumetric efficiency (95-99%) and higher discharge pressures (up to 40 MPa) than diaphragm designs. Flow rates of 1-5,000 L/h are achievable. The packing gland seal requires periodic replacement (every 2,000-8,000 operating hours depending on chemical and pressure) and allows minor leakage (0.1-0.5% of flow). Plunger systems are preferred for high-viscosity chemicals (polymers, molasses) and high-pressure applications (>10 MPa) where diaphragm fatigue would limit service life.
• Peristaltic (Hose) Dosing Systems: These pumps use a rotating roller to compress a flexible elastomer hose, drawing and expelling chemical in discrete doses. With no check valves, seals, or diaphragms in contact with the process fluid, peristaltic dosing is ideal for highly abrasive slurries (lime slurry, polymer solutions) and shear-sensitive chemicals. Flow rates of 0.01-2,000 L/h at discharge pressures up to 1.6 MPa are typical. Dosing accuracy is ±2-5% (lower than diaphragm systems), and hose replacement is required every 500-2,000 hours. The hose material (NBR, EPDM, or Viton) is selected for chemical compatibility.

Q: What is the difference between dosing accuracy and repeatability in API 675 metering pumps?

A: Steady-state accuracy (±1%) measures the deviation of the delivered volume from the setpoint value under constant conditions—how close the actual dose is to the target. Repeatability (±3%) measures the variation between successive doses at the same stroke setting—consistency of the dose. A pump can be highly repeatable (±0.5%) but inaccurate (+5% bias from calibration error). Both metrics are defined under API 675 test conditions: constant suction pressure, discharge pressure within ±5% of setpoint, and chemical viscosity within ±10% of design.

Q: Why is a pulsation damper essential for dosing pressure vessel systems?

A: Without a pulsation damper, the pulsating discharge from a positive-displacement metering pump creates pressure spikes of ±30-50% of mean discharge pressure. These spikes cause erratic check valve operation, premature pipeline fatigue, and inconsistent chemical delivery to the injection point. A properly sized pulsation damper (typically sized at 6-10* the pump's displacement per stroke) absorbs 80-95% of the pressure pulse, maintaining discharge stability within ±5% and ensuring dosing repeatability of ±3%.

Q: How is the stroke length set for a specific dosing rate requirement?

A: The required dosing rate Q (L/h) = Vstroke * f * ηv * (stroke% / 100), where Vstroke is the maximum displacement per stroke (mL), f is stroke frequency (strokes/min), ηv is volumetric efficiency (0.90-0.97), and stroke% is the adjustable stroke length (0-100%). For example, a pump with Vstroke = 50 mL, f = 60 strokes/min, ηv = 0.95 at 50% stroke delivers Q = 50 * 60 * 0.95 * 0.50 / 60 = 23.75 L/h. Operators typically verify actual delivery using a calibration column on the suction side.

Q: What materials are required for sodium hypochlorite dosing systems?

A: Sodium hypochlorite (NaOCl) is highly corrosive and degrades 316 stainless steel through pitting and crevice corrosion. Wetted components must use titanium Gr.2, Hastelloy C-276, or non-metallic materials (PTFE, PVDF, PVC, EPDM). Pump heads should be PVC or PVDF with PTFE diaphragms. Suction and discharge piping should be Schedule 80 PVC or CPVC. The dosing vessel itself should be HDPE or FRP (fiberglass reinforced plastic). Titanium is specified for high-pressure NaOCl service above 0.5 MPa.
