What Is a High Temperature Reactor? Design, Materials & Applications

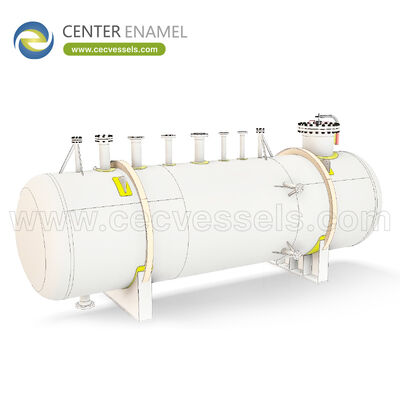

Answering the core question: What is a high-temperature reactor, and what material and design challenges distinguish it from standard chemical reactors? A high-temperature reactor is a pressure vessel engineered for sustained operation at wall temperatures of 500C to 1200C, requiring specialized nickel-based superalloys (Inconel 625/UNS N06625, Incoloy 800H/UNS N08810), ceramic refractory linings, or combinations of both. At these temperatures, standard austenitic stainless steels (304, 316L) exceed their 100,000-hour creep rupture stress at moderate pressures, and ASME Section VIII Division 1 design rules become inadequate, requiring Division 2 (higher design rules) or specific ASME Code Cases (e.g., Code Case 2753 for nickel alloys). Key engineering challenges include time-dependent creep deformation (governed by the Larson-Miller parameter), thermal stress from differential expansion between dissimilar metals (alpha = 17.5x10^-6/K for 316L vs 12.7x10^-6/K for Inconel 625 at 600C), oxidation/carburization of internal surfaces, and refractory-to-shell interface thermal management.
High-temperature reactor design addresses four metallurgical and structural principles:
High-temperature reactor materials are categorized by service temperature range and degradation mechanism:
| Material | Max Service Temperature | 100,000-h Creep Stress at 650C | Key Application |
|---|---|---|---|
| Inconel 625 (UNS N06625) | 980C (oxidizing), 815C (sulfidizing) | >138 MPa at 650C | Steam methane reforming, ethylene cracking, hydrogen production |
| Incoloy 800H (UNS N08810) | 982C (ASME Code Case 1325) | >100 MPa at 650C | Nuclear HTGR, petrochemical heaters, catalytic reforming |
| Refractory-lined SA516 Gr.70 | Process 1000-1650C; shell <400C | Carbon steel at 400C: >100 MPa | Coal gasification, incinerators, TLE, cracking furnaces |
| Silicon Carbide (SiC) | 1600C continuous (oxidizing atm) | N/A (ceramic, no creep) | Semiconductor epitaxy, HTGR, catalytic partial oxidation |
Q: What is the Larson-Miller parameter and why is it important for high-temperature reactor design?
A: The Larson-Miller parameter (LMP = T x (log t + 20) x 10^-3, where T is absolute temperature in Kelvin and t is rupture time in hours) is a time-temperature parametric method that correlates stress, temperature, and creep rupture time. It enables extrapolation of short-term laboratory creep test data to 100,000-hour (11.4-year) service life predictions. ASME Section III Division 1 (nuclear) and Code Case 1592 (elevated temperature) require LMP-based creep analysis for sustained load design. The LMP also enables material comparison: at LMP = 35 (e.g., 650C, 100,000 h), 316L supports 69 MPa while Inconel 625 supports 138+ MPa.
Q: At what temperature should reactor design switch from stainless steel to nickel-based alloys?
A: The transition temperature depends on the applied stress and required design life. For 100,000-hour design life at typical reactor wall stresses (60-120 MPa): 316L is suitable to approximately 550C (where 100,000-h creep rupture stress drops below 69 MPa); 321/347 stabilized grades extend to 600C; Incoloy 800H extends to 982C; Inconel 625 to 980C. For higher stresses or longer design life, the transition temperature decreases. The ASME Boiler and Pressure Vessel Code Section VIII Division 1 sets maximum temperature limits for each material (e.g., 316L: 816C for general, but with significantly derated stress values above 538C).
Q: How is refractory lining thickness determined for a high-temperature reactor?
A: Refractory thickness is calculated from one-dimensional steady-state heat conduction: Q = (T_process - T_shell) / (t_ref/k_ref + t_shell/k_shell + 1/h_air). The design maintains T_shell below 400C (carbon steel limit) with a safety margin, while minimizing refractory thickness to reduce vessel weight and cost. Typical thickness is 150-300 mm for process temperatures of 1000-1650C. Heat loss through the wall is typically limited to 300-1000 W/m2 (depending on insulation). A multi-layer design (dense castable hot face + ceramic fiber backup) optimizes both thermal resistance and resistance to erosion, thermal shock, and slag attack.
Q: What is thermal stress and why is it a critical design consideration for high-temperature reactors?
A: Thermal stress results from constrained thermal expansion. It arises from through-wall temperature gradients (sigma = E x alpha x delta-T / (2 x (1-nu))), dissimilar metal joints with different thermal expansion coefficients, and transient startup/shutdown thermal ramps. For a 50 mm 316L wall with 100C through-wall gradient at 600C: sigma = 193000 MPa x 17.5x10^-6 x 100 / (2 x 0.7) = 241 MPa, which approaches the yield strength at temperature and can cause thermal fatigue cracking under cyclic loading. ASME Section VIII Division 2 requires detailed thermal stress analysis (finite element) for design temperatures above 425C.
