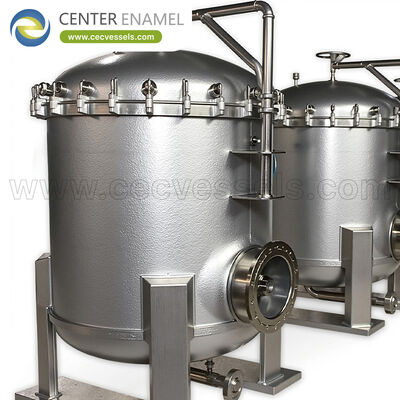

What Is a Reaction Vessel? Design, Materials & Industrial Applications
Answering the core question: What is a reaction vessel, and what design factors govern its selection for different chemical processes? A reaction vessel is an engineered containment system designed to safely host chemical reactions under controlled conditions of temperature, pressure, mixing, and phase contact. The design integrates materials of construction (MOC) selected for chemical compatibility, heat transfer surfaces (jackets, coils, or external exchangers) sized for the process heat duty, agitation systems matched to the rheology and phase behavior of the reaction mixture, and safety relief systems (rupture discs, relief valves) sized per API 520/521 to protect against over-pressurization. Reaction vessels range from 1-liter laboratory glassware to 200,000-liter industrial steel vessels, with design pressures from full vacuum to 30 MPa and operating temperatures from cryogenic to 900 degrees C.
1. Core Design Principles of Reaction Vessels
- Materials of Construction (MOC) Selection: The vessel material must resist chemical attack from all process fluids—reactants, intermediates, products, and byproducts—across the full operating envelope including startup, shutdown, and cleaning; selection follows corrosion rate data (NACE MR0175 for sour service, ASME P-No. for weldability), with typical choices including 316/316L stainless steel (general chemical), Hastelloy C-276 (strong oxidizers and chlorides), and glass-lined steel (mineral acids and halogenated compounds).
- Heat Transfer Integration: The vessel's heat transfer system—external jacket, half-pipe coil, or internal coil—must remove or supply the process heat duty at the required rate; the design equation Q = U*A*delta-T_mean determines the required heat transfer area, where U ranges from 200-1,500 W/(m^2*K) depending on fluid properties, agitation, and fouling resistance.
- Safety and Relief System Design: Every reaction vessel must have a documented basis of safety: a pressure relief device (PRD) sized for the worst-case relieving scenario per API 520, with set pressure not exceeding the vessel MAWP; emergency relief venting analysis (DIERS methodology) for reactive systems that may undergo runaway, ensuring the relief area accommodates two-phase vapor-liquid flow.
2. Major Types of Reaction Vessels by Material
- Stainless Steel Reaction Vessel (316/316L): The workhorse for general chemical, food, beverage, and pharmaceutical processing; offers excellent corrosion resistance to organic acids, alkalis, and most neutral salt solutions at temperatures up to 400 degrees C, with pitting resistance equivalent number (PREN) of 24-26 providing resistance to localized attack in moderate chloride environments.
- Glass-Lined Reaction Vessel: Combines the structural strength of carbon steel with the chemical inertness of borosilicate glass fused at 820-930 degrees C; provides universal corrosion resistance to all mineral acids (except hydrofluoric and hot phosphoric) at concentrations up to 100%, and achieves surface finish roughness (Ra) below 0.8 micrometers for pharmaceutical hygiene requirements.
- Nickel-Alloy Reaction Vessel (Hastelloy/Inconel): Selected for the most aggressive environments involving hot mineral acids, chlorides, and oxidizing media; Hastelloy C-276 maintains corrosion rates below 0.1 mm/year in boiling 10% HCl, while Inconel 625 provides oxidation resistance up to 650 degrees C in flue gas and sulfur-bearing environments where stainless steel would fail rapidly.
Reaction Vessel Material Comparison Matrix
| Material | Corrosion Resistance | Max Service Temperature | Typical Process Environment |
|---|---|---|---|
| 316/316L Stainless Steel | Good (PREN 24-26) | 400 C (continuous) | Organic acids, alkalis, food, pharma |
| Glass-Lined Steel | Excellent (universal) | 200 C (glass lining limit) | Mineral acids, halogenated compounds, pharma |
| Hastelloy C-276 | Excellent (all acids) | 538 C (oxidizing) | Hot HCl, H2SO4, chlorides, oxidizers |
Frequently Asked Questions (FAQ)
Q: What is the difference between a reaction vessel and a storage tank?
A: A reaction vessel is designed with integrated heat transfer surfaces, agitation systems, and process nozzles to actively sustain chemical reactions under dynamic conditions, while a storage tank simply holds material at near-ambient conditions with minimal process integration and no reaction capability.
Q: How is the material of construction selected for a reaction vessel?
A: MOC selection is based on corrosion rate data for all process fluids across the full operating envelope, with acceptable corrosion rates below 0.1 mm/year for corrosion allowance of 1.5-3 mm over a 20-year design life; the selection also considers weldability, mechanical properties at temperature, and cost, with stainless 316L as the baseline and Hastelloy or glass lining for aggressive environments.
Q: What safety systems must a reaction vessel have?
A: Every reaction vessel requires a pressure relief device (rupture disc or safety relief valve) sized per API 520 for the worst-case relieving scenario, a documented basis of safety including emergency response procedures, and for reactive systems, DIERS-based two-phase relief analysis to ensure the relief area accommodates potential runaway reaction vapor rates.
Q: What is the role of the heat transfer jacket on a reaction vessel?
A: The jacket circulates heat transfer fluid (water, thermal oil, or glycol) to maintain the vessel at the desired reaction temperature; its area is sized from Q = U*A*delta-T_mean, where Q is the process heat duty, U is the overall heat transfer coefficient, and delta-T_mean is the log-mean temperature difference between the process and the jacket fluid.
