Key Components of a Mixing Tank: Anatomy, Functions, and Design

An industrial mixing tank is a complex engineered containment system where multiple mechanical and structural subsystems work in unison to blend, emulsify, homogenize, or react materials. Understanding the key components of a mixing tank is essential for plant engineers, procurement specialists, and operators seeking to optimize fluid dynamics, ensure structural safety, and maximize product consistency.

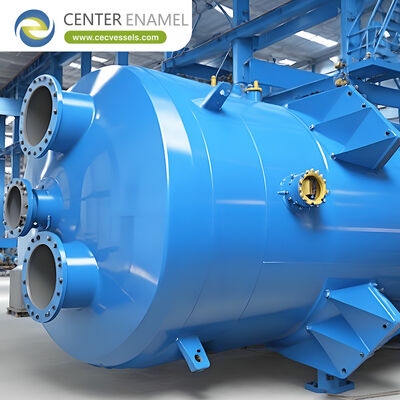

The vessel body serves as the primary structural container that houses the process fluids safely under specified pressure and temperature conditions.

• Structural Design: Built as a vertical cylinder with a dished, flat, or tapered cone bottom to facilitate drainage and fluid circulation.

• Material Construction: Fabricated from high-grade stainless steel (such as 304 or 316L) for sanitary operations, specialty alloys (like Hastelloy) for aggressive chemicals, or engineering polymers for light-duty applications.

Often considered the heart of the system, the agitator assembly transfers mechanical energy into the fluid to drive mixing, dispersion, and mass transfer.

• Drive Shaft: A rigid rotating rod connected to the motor that transmits torque down into the fluid medium.

• Impellers / Blades: Attached to the shaft, impellers—such as marine propellers, pitched-blade turbines, or high-shear discs—determine the flow pattern and shear rate. High-shear blades emulsify immiscible liquids, while axial blades promote bulk fluid circulation.

The motor and drive system supply the rotational power required to turn the agitator shaft at precise speeds.

• Gearbox: Reduces motor speed while multiplying torque, allowing heavy-duty mixing of viscous liquids, slurries, and thick pastes.

• Variable Speed Controls: Modern systems utilize frequency inverter drives (VFDs) to adjust agitator rotation dynamically based on real-time fluid viscosity changes.

Baffles are vertical plates or rods mounted along the interior walls of the tank shell to improve mixing efficiency.

• Preventing Vortexing: Without baffles, low-viscosity liquids tend to form a solid-body rotation (swirling vortex) where little actual mixing occurs. Baffles disrupt this circular flow pattern, forcing fluids toward the impeller zone to create intense turbulent macro-mixing.

• Nozzles and Transfer Lines: Port connections welded onto the shell for feeding raw ingredients, adding chemical reagents, and discharging finished products.

• Mechanical Seals: Specialized sealing mechanisms installed where the agitator shaft enters the vessel top, preventing vapor leakage and maintaining internal pressure integrity.
