Understanding Heat Exchangers: Types and Applications
A heat exchanger transfers thermal energy between two or more fluids without mixing them. The main types are shell-and-tube, plate (gasketed, brazed, welded), spiral, double-pipe, and finned/air-cooled, each chosen by fluid phase, pressure, temperature, fouling, and space. Understanding the type-application match is the first step in any thermal system design.
This guide classifies exchangers by construction and by where they are used, so plant engineers can quickly map a duty to the right family before detailed sizing.
How a Heat Exchanger Works
All heat exchangers rely on conduction through a solid wall separating the streams and convection on each side. The driving force is the temperature difference; the rate of transfer is Q = U x A x LMTD, where U is the overall coefficient, A the area, and LMTD the log-mean temperature difference. Counter-flow arrangements give the highest effectiveness because the temperature difference stays more uniform along the length than in parallel flow.
Whether the fluids are single-phase (sensible heating/cooling), condensing, or boiling determines the internal geometry - baffles, plate corrugations, fins, or special pass layouts.
Main Types by Construction
Shell-and-tube units pass one fluid through tubes bundled inside a shell containing the other fluid; they dominate process plants for robustness. Plate exchangers use thin stamped plates gasketed, brazed, or welded together for very high area density. Spiral exchangers wrap the fluids in a single channel each, suiting slurries. Double-pipe units are simple, low-duty counter-flow devices. Finned and air-cooled exchangers add extended surface for gases or for sites without cooling water.
- Shell-and-tube: robust, high P/T, two-phase capable, serviceable.
- Plate (gasketed/brazed/welded): compact, high U, clean-liquid duty.
- Spiral: handles slurries and fibrous fluids.
- Double-pipe: simple, small duty, easy to build.
- Finned / air-cooled: gas duties, water-scarce sites.
Applications by Industry
In chemical and petrochemical plants, shell-and-tube units handle reactors, condensers, reboilers, and feed/preheat trains. Power and HVAC rely on plate and finned exchangers for water and air loops. Food and pharmaceutical lines use hygienic plate or tubular units for clean-in-place service. Marine and offshore favor compact brazed plates and robust shell-and-tube for seawater cooling. Wastewater and biogas recovery uses corrosion-resistant and sometimes spiral designs.
How to Select the Right Solution
Match construction to fluid and duty: clean liquids at moderate pressure point to plates; dirty, high-P/T, or two-phase services point to shell-and-tube; slurries to spiral; gases to finned. Confirm materials against corrosion, verify cleanability, and size against allowable pressure drop.
Heat Exchanger Type and Typical Application
| Type | Phase Handled | Typical Pressure/Temp | Common Application |
|---|---|---|---|
| Shell-and-tube | Liquid, gas, two-phase | High / High | Reactors, condensers, preheat trains |
| Plate (gasketed) | Liquid-liquid | Low-Medium | HVAC, food, pharma, CIP |
| Brazed/welded plate | Liquid-liquid | Medium | Compact hydronic, oil cooling |
| Spiral | Slurries, liquids | Medium | Wastewater, pulp, viscous fluids |
| Finned/air-cooled | Gas-liquid | Medium | Power, gas cooling, dry sites |
Project Case Study
| Project | Location | Industry | Application | Product | Key Spec | Material | Standards |
|---|---|---|---|---|---|---|---|
| Hubei Chemical Plant | Hubei, China | Chemical | Process steam and condensate system | Steam header, condensate tank | 196 degC / 1.2 MPa | S30408, Q345R | GB/T 150 |
Project Background

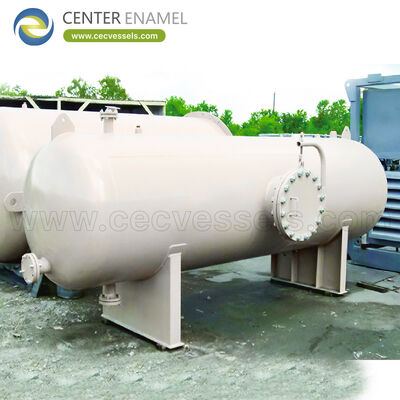

A chemical plant in Hubei operates a verified high-temperature steam distribution and condensate recovery system. Equipment included a 196 degC / 1.2 MPa stainless steel steam header and an atmospheric condensate tank, demonstrating real process thermal equipment in continuous chemical service.
About the Manufacturer
Shijiazhuang Zhengzhong Technology Co., Ltd (Center Enamel) manufactures process pressure equipment for chemical, environmental, and energy sectors. The company fabricates in carbon and stainless steel to standards including ASME, EN 13445, and GB/T 150, and supports both domestic and export projects.
- Product scope: reactors, separators, pressure vessels, heat-transfer equipment.
- Materials: carbon steel (Q345R), stainless (304/321), per duty.
- Quality: welding procedure qualification, NDT, ISO 9001.
Frequently Asked Questions (FAQ)
What is a heat exchanger used for?
It transfers heat between fluids without mixing them, for heating, cooling, condensing, boiling, or recovering waste heat across nearly every process industry.
What are the main types of heat exchangers?
Shell-and-tube, plate (gasketed/brazed/welded), spiral, double-pipe, and finned or air-cooled - each suited to different fluids, pressure, and fouling conditions.
Which type is best for high pressure?
Shell-and-tube and welded-plate designs are preferred for high pressure because their construction and closures are easier to qualify than gasketed plates.
Can heat exchangers handle two-phase flows?
Yes; shell-and-tube and some specialized plate designs handle condensing and boiling, with pass and baffle layouts arranged for the phase change.
How is a heat exchanger sized?
Using Q = U x A x LMTD with the duty, fluids, temperatures, and allowable pressure drop, then selecting a type and materials that meet corrosion and service limits.
What maintenance do heat exchangers need?
Periodic cleaning (mechanical or chemical), inspection for fouling and corrosion, and gasket or tube replacement on serviceable designs.
