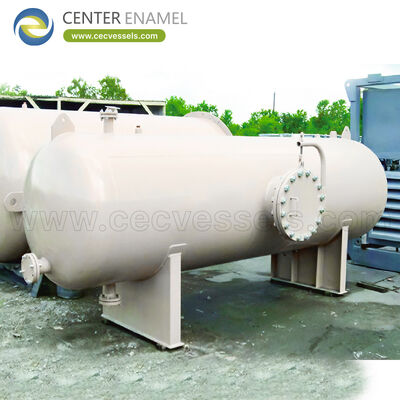

How To Design A Reactor
Designing a reactor starts with the reaction, not the vessel. The question 'how to design a reactor' is answered by a sequence: characterize the chemistry and kinetics, define operating conditions, quantify heat and mass transfer, choose a configuration that fits the kinetics, size it, and validate the design before fabrication. Skip any step and the vessel may be buildable but not controllable.
This article walks through that sequence in the order an engineer would actually apply it, with the trade-offs that decide a sound design.
Step 1: Define the Reaction and Kinetics
Begin with what actually happens: stoichiometry, rate law, and activation energy from lab or literature data. Identify whether the desired reaction is faster than side reactions at the target conditions, because selectivity - not just conversion - drives reactor economics. Where catalysis is involved, note deactivation rate, since it sets catalyst life and regeneration frequency.
Step 2: Set Operating Conditions
- Temperature and pressure: chosen to maximize selectivity and rate while staying within material and safety limits.
- Residence time: derived from the rate law and target conversion, then checked against side-reaction buildup.
- Concentration and phase: batch, fed-batch, or continuous; single or multiphase; this choice constrains everything downstream.
Step 3: Quantify Heat and Mass Transfer
Heat Balance
Compute the heat of reaction and the required removal or addition rate. Compare it to available area using Q = UA Delta T. If the duty cannot be met by a jacket alone, add internal coils, reflux, or feed dilution. Exothermic steps are sized for the worst-case, not the average, duty.
Mass Transfer
For gas-liquid or liquid-liquid systems, estimate the mass-transfer coefficient (e.g., kLa) needed for the observed uptake. If it exceeds what the geometry can deliver, change sparging, pressure, or agitation before resizing the vessel.
Step 4: Choose the Configuration
Match geometry to kinetics. Fast, homogeneous reactions suit tubular or flow reactors with tight residence control. Reactions needing long, uniform residence favor stirred tanks or CSTR trains. Multiphase catalytic reactions use fixed or fluidized beds. The configuration is a consequence of steps 1-3, not a starting assumption.
Step 5: Size, Specify Materials, and Validate
- Size from residence time and throughput: volume follows required holdup, with allowance for vapor space and agitation.
- Specify materials and corrosion allowance: pick metal or lining from the reagent chemistry; add allowance for life.
- Validate with RTD/CFD and prototype: confirm the full-scale geometry reproduces small-scale behavior before fabrication.
- Document for code and inspection: produce drawings, weld maps, and NDT scope acceptable to ASME/PED or the applicable code.
Configuration Choice by Kinetics
| Kinetic situation | Preferred reactor | Reason |
|---|---|---|
| Fast, homogeneous | Tubular / flow | Tight residence control |
| Slow, needs long RT | Stirred tank / CSTR | Uniform holdup |
| Multiphase catalytic | Fixed / fluidized bed | Catalyst contact area |
| Heat-limited exotherm | Smaller + coils/reflux | Area-to-volume relief |
Reactor design is a disciplined sequence, not a shape choice. Define kinetics first, set conditions, prove heat and mass transfer are manageable, then let the configuration follow. The designs that fail in service are usually those where sizing skipped the transfer checks or validation. A documented, code-ready design produced before fabrication is far cheaper than a rebuilt vessel.
Frequently Asked Questions (FAQ)
What is the first step in reactor design?
Characterizing the reaction: stoichiometry, rate law, activation energy, and selectivity versus side reactions. Every later decision about size, configuration, and materials depends on this foundation.
How do you size a reactor?
From the required residence time and production throughput, using the rate law for conversion and adding allowance for vapor space, agitation, and corrosion. Volume follows the process, not the other way around.
Why is heat transfer so important in reactor design?
Reaction heat scales with volume while cooling surface scales with area, so large or exothermic reactors can overheat or run away. The cooling strategy must be proven against the worst-case duty before sizing is fixed.
How do I choose between batch and continuous?
If the process is multi-product or needs flexibility, batch or fed-batch wins. If it is a single high-volume step where steady state improves consistency, continuous or CSTR trains are usually better.
What validation is needed before fabrication?
Residence-time distribution (RTD) and computational fluid dynamics (CFD) studies, plus calorimetry and mass-transfer tests, confirm the full-scale geometry reproduces the proven smaller behavior.
Which code governs reactor design?
Commonly ASME Section VIII (USA/global projects), PED/CE (Europe), or national standards, with NDT and material traceability scaled to the pressure and hazard class of the duty.
