Engineering Grade Reactor Manufacturer: What It Means and How to Vet One

Engineering Grade Reactor Manufacturer: What It Means and How to Vet One

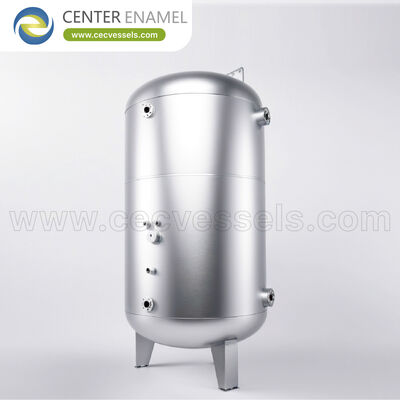

An engineering grade reactor manufacturer is a fabricator that also owns the engineering: it can take a process duty and deliver a fully designed, analyzed, and documented vessel, not just weld plates to someone else's drawing. The distinction matters for complex, high-pressure, or corrosive service where the design itself is the risk. This article explains what 'engineering grade' means in practice and how a buyer can verify it before awarding the job.

What 'Engineering Grade' Actually Means

The term is not a code; it is a capability statement. It signals that the supplier can perform the mechanical design, thermal and structural analysis, and the documentation package required to place a vessel in service safely.

• Design ownership: The manufacturer calculates wall thickness, nozzles, and supports to code rather than copying a drawing.
• Analysis depth: FEA for local loads, seismic, and thermal, plus process-level sizing where needed.
• Documentation: Calculations, drawings, and data reports are produced and owned in-house.

Core Engineering Capabilities to Look For

Mechanical and Process Design

A capable supplier uses code software such as PV Elite or COMPRESS and can defend every number. For reactive duty, they also consider mixing, heat transfer, and residence time, not just pressure.

• Code compliance: ASME Section VIII, PED, or client spec as required.
• Process integration: Nozzle loads, agitator torque, and thermal duty are part of the design.

Finite Element Analysis

FEA turns unknown local stresses at nozzles, supports, and transitions into defensible numbers, often the difference between a safe detail and a field failure.

• Where it is used: Nozzle-to-shell, saddle supports, flange joints, and thermal gradients.
• What good looks like: Mesh convergence, realistic loads, and a readable report.

Materials and Welding Engineering

Engineering grade includes selecting the right grade, qualifying WPS/PQR for it, and planning PWHT and NDE before the first cut.

• Material strategy: Base metal, cladding, or lining chosen for the corrodent and temperature.
• Weld engineering: Procedures qualified for the exact joint and position.

How to Vet an Engineering Grade Manufacturer

• Ask for a sample calc package: A redacted past design shows depth and discipline.
• Check software and standards: Confirm code editions and the tools used.
• Interview the engineer: The person who signs the design should be reachable and accountable.
• Review the QA system: Engineering without disciplined fabrication control is just paper.

Engineering Grade vs Commodity Fabricator

When You Need Engineering Grade

Specify engineering grade for high pressure, high temperature, corrosive, or agitated reactors; for new processes without a reference design; and whenever a design error would be costly or dangerous. For simple, standard shells, a commodity fabricator may suffice.

Red Flags in the Sales Process

• No named engineer: If you cannot identify who designs it, be cautious.
• Vague on analysis: Answers like 'we follow standard practice' without specifics.
• No sample package: Reluctance to show past calculations.
• Price-only competition: Willing to undercut without understanding the duty.

Engineering Grade vs Commodity Fabricator

'Engineering grade' is a capability, not a certificate. The practical test is simple: can the manufacturer show you a complete, defensible design package for a vessel like yours, produced and owned in-house? If yes, you are buying engineered equipment; if no, you are buying plates and welds, and the design risk is yours. For complex reactors, pay for the engineering and make the supplier own it.

Frequently Asked Questions (FAQ)

What is an engineering grade reactor manufacturer?

It is a manufacturer that performs the full mechanical design, structural and thermal analysis, and documentation of a reactor in-house, rather than only fabricating from a customer's drawing. It owns the design responsibility, not just the welding.

How is engineering grade different from a standard fabricator?

A standard fabricator builds to a supplied design; an engineering grade supplier creates and verifies the design. The latter adds FEA, process integration, and a complete calculation and data-report package, and accepts design risk.

Do I need an engineering grade manufacturer for a simple reactor?

Not always. For low-risk, standard shells built to a proven drawing, a commodity fabricator is adequate and cheaper. Choose engineering grade when pressure, temperature, corrosion, agitation, or process novelty makes the design itself the main risk.

What software should an engineering grade reactor maker use?

Recognized code tools such as PV Elite or COMPRESS for pressure-part design, with FEA (for example ANSYS or equivalent) for local loads, plus standard CAD for drawings. The specific brand matters less than verified, current, and appropriately applied methods.

Can an engineering grade manufacturer also hold ASME and CE certification?

Yes, and for export reactors it should. Engineering capability and code certification are complementary: the engineering produces a compliant design, and the stamp confirms the quality system behind fabrication.

How do I verify a manufacturer's engineering capability?

Request a redacted sample calculation and FEA report from a similar past vessel, confirm the code editions and tools used, and speak to the engineer who would sign your design. Reluctance to show past work is a warning sign.

Who is liable if an engineering grade manufacturer designs the reactor?

The manufacturer carries the design responsibility it accepts contractually, typically backed by professional engineering and the code's requirements. That transfer of risk is the main reason to choose engineering grade for demanding service.
