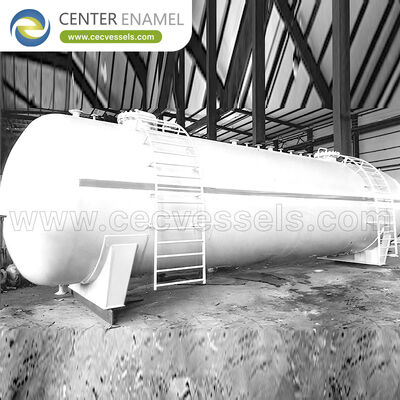

What does an industrial gas conversion reactor from Shijiazhuang Zhengzhong Technology Co., Ltd provide to gas plants? Shijiazhuang Zhengzhong Technology Co., Ltd (Center Enamel) builds industrial gas conversion reactors that turn natural gas and other feeds into hydrogen, ammonia and methanol, including steam methane reformers, water-gas shift converters, methanators and ammonia and methanol synthesis reactors. Duties span 200 to 900°C and pressures from near atmospheric to 25 MPa, built in refractory-lined carbon steel or alloy, with design centered on creep resistance, hydrogen attack protection and catalyst life under continuous high-temperature service.

1. Industrial Gas Conversion Routes

Four routes build the gas economy, each with a distinct reactor:

• Steam Methane Reforming: Natural gas reacts with steam over a nickel catalyst in tubes at 800 to 900°C, producing hydrogen, carbon monoxide and carbon dioxide. The reformer is a fired furnace with catalyst-filled tubes that must resist creep and carburization at the hot end, with the tube material and wall thickness set by the 20-year high-temperature strength. It is the largest single consumer of the duty and the most materials-critical reactor in the hydrogen plant.
• Water-Gas Shift and Methanation: The shift converts carbon monoxide with steam to hydrogen at 200 to 450°C over iron or cobalt-molybdenum catalyst, while methanation removes traces of carbon oxides by reacting them to methane at 250 to 400°C ahead of ammonia or methanation trains. These are fixed-bed converters built in low-alloy or stainless, with the design focused on even distribution and the right inlet temperature, because overshoot forms unwanted side products and shortens catalyst life.
• Ammonia Synthesis: Nitrogen and hydrogen combine over an iron or ruthenium catalyst at 400 to 500°C and 15 to 25 MPa, a strongly exothermic equilibrium-limited reaction run in radial-flow converters with inter-bed cooling. The reactor is built to resist hydrogen at high pressure and temperature, with the shell designed for the 20-year creep life and the internals for the lowest practical pressure drop, because conversion per pass follows the pressure and the cooling arrangement.
• Methanol Synthesis: Carbon monoxide and hydrogen combine over a copper-zinc catalyst at 220 to 300°C and 5 to 10 MPa, a moderate-pressure exothermic reaction in a fixed-bed or axial-radial converter. The vessel is built in low-alloy steel with hydrogen-attack protection, and the design controls the temperature rise across the bed with inter-cooling, because the copper catalyst is easily deactivated by overheating. Conversion per pass is 10 to 20 percent, with the unreacted gas recycled.

2. Engineering Gas Conversion Reactors

Gas conversion runs hot and in hydrogen. Four responses apply:

• Creep and High-Temperature Strength: At 400 to 900°C the materials creep, so wall thickness and alloy choice follow the allowable stress at temperature over the 20-year design life, not ambient tensile data. Reformer tubes use centrifugal cast HK or HP alloy, and the converter shells use low-alloy or stainless qualified for the hot zone. Every high-temperature joint and support is designed for growth and relaxation, because creep failure is slow but inevitable if the basis is wrong.
• Hydrogen Attack Protection: Above about 200°C and a few MPa, hydrogen attacks carbon steel, so the wetted surfaces in hydrogen service use chrome-moly or stainless, or a verified overlay, chosen from the Nelson curve for the actual temperature and hydrogen partial pressure up to 20 MPa. A vessel specified below the curve will blister and fissure in service, so hydrogen attack resistance is designed into the material selection, not inspected for afterward.
• Refractory Lining and Hot Shell: Reformers and some converters run with the shell protected by a refractory lining and kept below the creep range, with the lining thickness and anchor design set by the duty. The lining must survive repeated heat-up and the tube-attach loads, and its failure exposes the shell to the full gas temperature. Expansion joints absorb growth between hot and cold parts, and inspection access for the lining is designed in from the start.
• Catalyst Life and Distribution: Gas conversion catalysts last 2 to 5 years and deactivate by coke, poison and sintering, so the reactor distributes feed evenly to avoid hot spots and supports the bed without fines migration. Radial-flow geometry lowers pressure drop and extends run length, and the inlet device is specified with the same care as the shell. The reactor and the catalyst change-out are designed as one campaign, because on-stream time follows from both.

Industrial Gas Conversion Reactor Comparison Matrix

Frequently Asked Questions (FAQ)

Q: What is the difference between ammonia and methanol synthesis reactors?

A: Both combine hydrogen with a carbon or nitrogen source over a catalyst, but ammonia runs at 400 to 500°C and 15 to 25 MPa with an iron or ruthenium catalyst and is strongly exothermic, using radial-flow converters with inter-bed cooling to hold the equilibrium. Methanol runs cooler, 220 to 300°C, at 5 to 10 MPa over a copper-zinc catalyst that is easily deactivated by overheating, so the bed temperature rise is tightly controlled with inter-cooling. Ammonia needs higher pressure for its equilibrium; methanol needs careful low-temperature control to protect the catalyst. The materials and the cooling strategy differ accordingly.

Q: Why does steam methane reforming need special tubes?

A: The reformer tubes sit at 800 to 900°C with internal pressure and a reactive, carburizing atmosphere, so they must resist creep, carburization and thermal cycling for a 20-year life. They are made of centrifugal-cast high-nickel alloys such as HK or HP grade, with the wall thickness set by the allowable stress at temperature, not by pressure alone. A standard pressure-vessel shell material would creep and fail in months, which is why the reformer is a furnace of special tubes rather than a conventional vessel.

Q: How is hydrogen attack prevented in gas conversion reactors?

A: Hydrogen at 200°C and above a few MPa diffuses into carbon steel and forms methane inside the metal, causing blisters and fissures. Resistance comes from chrome-moly or stainless construction and, where needed, a verified overlay, with both the base alloy and the overlay chosen from the Nelson curve for the operating temperature and hydrogen partial pressure up to 20 MPa. A vessel specified below that curve will fail in service regardless of its pressure rating, so hydrogen attack resistance is a design input, confirmed by the material certificate and the overlay examination.

Q: What should a buyer verify when sourcing a gas conversion reactor?

A: Four checks. Temperature basis: require the elevated-temperature allowable stress over the 20-year life, not ambient data, for every hot component including reformer tubes. Hydrogen service: confirm the material sits inside the Nelson curve for the actual temperature and hydrogen partial pressure, with overlay examination where used. Refractory: for lined reactors require the lining thickness, anchor design and the heat-up profile qualification. Documentation: the delivered file must include material certificates, welding procedure qualifications, the hydrostatic test at 1.3 times design pressure, the NDE of all seams, and the catalyst loading and distribution drawing with the temperature profile stated.
