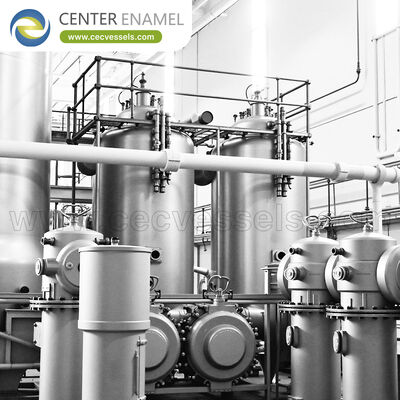

What Is a Gas Conditioning Separator: Design, Functions and Pipeline Specification

Answering the core question: What is a gas conditioning separator? A gas conditioning separator is the vessel at the head of a gas treatment train that removes free liquids, entrained mist and solids from a produced gas stream, and controls its pressure and temperature, so that the gas can be safely transported, measured or processed. It performs five functions: bulk liquid separation by gravity, fine mist removal through a mist eliminator, solids and sand removal, pressure reduction through a choke, and temperature management to prevent hydrate formation. The targets it must meet are set by pipeline and equipment specification: no free liquids, a hydrocarbon dew point typically below -5 to 0°C at delivery pressure, a water dew point below about -10°C, hydrogen sulphide below 4 ppm, carbon dioxide below 2-3%, and a heating value in the range of 35-42 MJ per normal cubic metre. Sizing of the separation section follows the Souders-Brown equation with a K factor of 0.10-0.35 m/s depending on orientation and mist eliminator type.

1. Functions of a Gas Conditioning Separator

Five functions are combined in one vessel or skid, and each addresses a specific transport or processing requirement:

• Bulk Liquid Separation: Gas arriving from a well, a gathering line or an upstream facility carries free liquids as slugs, as a film along the pipe wall and as entrained droplets. The separator must remove all of it, because free liquid in a gas line causes pigging problems, corrosion, inaccurate metering, and, in the worst case, overpressure of a downstream low-pressure system through a level control failure. Gravity separation in the vessel handles droplets above roughly 100-500 micrometres, and the vessel diameter is set by the Souders-Brown vapour velocity limit. Slugs are handled either by generous liquid holdup in the vessel itself or, where volumes are large, by a dedicated slug catcher, which in onshore plants may be several hundred metres of large-diameter pipe configured as a finger-type or a harp-type arrangement.
• Fine Mist Removal: Gravity cannot remove the fine droplets, so a mist eliminator handles them. A knitted wire mesh pad of 100-150 mm thickness captures droplets above 5-10 micrometres at up to 99.9% efficiency with a pressure drop of only 25-75 mm H2O, and is the standard choice for clean gas. Where the gas carries solids, wax or compressor lube oil that would plug a mesh pad, a vane pack or chevron is used, handling 10-40 micrometre droplets and tolerating much higher liquid and solids loading. Where the specification is tightest, as upstream of a glycol contactor or a molecular sieve, a filter separator or a coalescing filter is installed, removing droplets to 0.3-1 micrometre at 99.98% efficiency with replaceable elements and a differential pressure monitor to schedule change-out.
• Solids and Sand Removal: Producing wells carry sand, scale, corrosion products and, in some fields, formation fines, and these are destructive: they erode choke trim, control valves and compressor blades, they accumulate in the vessel and reduce its working volume, and they foul the mist eliminator and downstream equipment. The separator removes them by gravity in a dedicated sand collection zone, usually the bottom of the vessel or a separate sand jacket, and the accumulated solids are removed by periodic sand jetting, in which a high-pressure water or produced-water jet fluidises the bed and it is blown down to a sand cyclone or a collection pot. Jetting frequency ranges from hourly in a sandy well to weekly in a clean one, and is one of the most reliable early indicators of a downhole sand control failure.
• Pressure Reduction and Temperature Control: Gas normally arrives at wellhead pressure, often 30-150 bar, and must be reduced to the transport or processing pressure. That reduction is done with a choke or a control valve, and it cools the gas by the Joule-Thomson effect, typically 0.4-0.7°C per bar of pressure drop for natural gas. This cooling can be useful, since it condenses heavier hydrocarbons and helps meet the hydrocarbon dew point, but it also creates a hydrate risk: at 70 bar, methane gas with free water forms hydrates below about 20-25°C, and a hydrate plug is one of the most common causes of a production shutdown. The conditioning system therefore either heats the gas, using an indirect line heater with a fire tube or a water bath, or injects a thermodynamic inhibitor, typically monoethylene glycol at 0.5-3 L per kilogram of water produced, or methanol where recovery is not economic.
• Measurement Protection and Fuel Gas Service: The same principles apply to the smaller conditioning skids used for fuel gas and for instrument gas. Gas used to fuel a turbine, a compressor driver or a heater must be free of liquid, because liquid droplets in a gas turbine cause flame instability, hot section corrosion and, over time, blade damage; the conditioning skid therefore includes a separator, a coalescing filter, a pressure regulator, and often a superheater that raises the gas 10-20°C above its hydrocarbon dew point to guarantee that no condensation occurs downstream. Instrument gas is conditioned further, dried to a dew point typically 20°C below the lowest ambient temperature, and filtered to remove oil and particulates, because an instrument air or gas supply that freezes or plugs causes control valve failure across the whole facility.

2. Design and Operation of a Gas Conditioning Separator

Three design decisions determine whether the separator meets specification through the life of the field:

• Sizing for the Whole Production Profile: A gas separator must be sized not for today's rates but for the entire production profile, which in a gas field means the opposite behaviour at each end. Early in field life the rates are high and the liquids may be low, so the vessel is gas-capacity limited and the Souders-Brown criterion governs. Late in life the gas rate falls but the liquids, particularly water from an advancing aquifer or from pressure depletion, rise sharply, so the vessel becomes liquid-holdup limited and, critically, the gas velocity may fall so low that the separator operates in a regime where the mist eliminator no longer works efficiently. Experienced designers check at least three cases: initial rates, peak rates, and late-life rates, and they confirm that the separator works at turndown as well as at design. Sizing standards such as API 12J provide the framework, but the production forecast is the real input.
• Level Control and Liquid Handling: Level control on a gas separator is both the most important and the most failure-prone element. If the level rises too high, liquid carries over into the gas outlet, flooding the mist eliminator and, in the worst case, sending a slug of liquid into a compressor; if it falls too low, gas blows through the liquid outlet, which over-pressures the downstream liquid system and can rupture a vessel not designed for gas. Standard practice is two independent level transmitters with an alarm, a high-high level trip that shuts in the separator or closes the outlet, and a dump valve rather than a control valve for the liquid, since produced liquids are often sandy and erosive. The liquid must then go somewhere: to a produced water treatment system, to a condensate stabiliser, or back into the export line, and the disposal route is often the constraint rather than the separator itself.
• Materials, Codes and Integrity: Gas conditioning separators are built to ASME VIII Division 1 with a U stamp, or to PED 2014/68/EU with CE marking for European service. Carbon steel such as SA-516 Grade 70 is standard, but where the gas contains hydrogen sulphide, NACE MR0175 / ISO 15156 applies: the material hardness is limited, typically to 22 HRC, and post-weld heat treatment is mandatory to prevent sulphide stress cracking, with HIC-resistant steel specified for wet sour service. Where carbon dioxide is present with water, corrosion allowance of 3-6 mm is added and injection of a corrosion inhibitor is provided upstream. Internals should be removable through a manway for inspection and replacement, and the vessel should be provided with a relief device sized per API 520 for the fire and the blocked-outlet cases, and with a blowdown system to depressurise it safely to a flare or to a closed drain.

Gas Conditioning Functions and Equipment Comparison Matrix

Frequently Asked Questions (FAQ)

Q: What is the difference between gas conditioning and gas processing?

A: Gas conditioning prepares the gas for transport or for use as fuel, without changing its bulk composition in a fundamental way: it removes free liquids and solids, controls pressure and temperature, and prevents hydrates. Gas processing changes the composition to meet a sales specification: it removes hydrogen sulphide and carbon dioxide in an amine unit, removes water in a glycol dehydrator or a molecular sieve, recovers natural gas liquids by refrigeration or cryogenic expansion, and removes nitrogen or helium where necessary. In practice the conditioning separator is the first vessel in the processing train, and it exists to protect the processing equipment: a glycol contactor will foam and lose efficiency if liquid hydrocarbon enters it, and an amine unit will foam and suffer amine loss if the inlet gas carries liquids or solids, which is why inlet separation upstream of these units is treated as a critical duty rather than a formality.

Q: How do you prevent hydrates in a gas conditioning separator?

A: Four approaches, used singly or in combination. Heating the gas upstream or within the separator using an indirect line heater, so that even after Joule-Thomson cooling across the choke the gas stays above its hydrate formation temperature, typically with a margin of 5-10°C. Injecting a thermodynamic inhibitor, usually monoethylene glycol at 0.5-3 L per kilogram of free water, which shifts the hydrate equilibrium curve downward, or methanol where recovery is not justified; the inhibitor travels with the water phase and is regenerated and recirculated in a glycol regeneration package. Dehydrating the gas before the cooling step, most commonly with a glycol contactor, so that there is no free water to form hydrates at all. And controlling the pressure reduction so that the Joule-Thomson cooling, at 0.4-0.7°C per bar, does not take the gas below its hydrate temperature, sometimes by splitting the pressure drop across two stages with heating between them.

Q: What is a filter separator and when is it needed instead of a scrubber?

A: A filter separator combines the two stages in one vessel: an upstream section of coalescing filter elements that captures fine liquid droplets and merges them into larger drops, and a downstream mist eliminator section, usually a vane pack, that removes the enlarged droplets from the gas. It achieves removal down to 0.3-1 micrometre at up to 99.98% efficiency, against 5-10 micrometres for a mesh pad scrubber, so it is specified wherever the downstream equipment is sensitive to any liquid at all. The three classic applications are upstream of a molecular sieve dehydration unit, where liquid hydrocarbon rapidly deactivates the sieve and can cause it to disintegrate; upstream of a glycol contactor, where liquid hydrocarbon causes severe foaming and glycol loss; and upstream of a centrifugal compressor or a gas turbine, where fine droplets cause erosion and fouling. The trade-off is the replaceable elements, which require monitoring of differential pressure and a change-out regime, and which plug quickly if solids are not removed upstream.

Q: How is the performance of a gas conditioning separator monitored?

A: Four indicators are tracked continuously. Differential pressure across the mist eliminator or filter elements, since a rising trend indicates fouling or flooding well before carryover becomes visible. Liquid carryover downstream, measured either by a direct sampling method or indirectly by monitoring the performance of the downstream unit, such as an increase in glycol losses in a dehydration contactor or an increase in amine foaming. Level control behaviour, in which frequent high-level alarms or an oscillating dump valve indicate a level problem, an undersized liquid outlet or an emulsion at the interface. And wellhead and separator pressures and temperatures compared against the hydrate formation curve, since a steady drift towards the hydrate region, or a growing gap between the gas temperature and the hydrate temperature, is the earliest warning of an inhibitor dosing problem or a heater failure. Many operators also trend sand production by logging jetting frequency, which gives a cheap and continuous indication of downhole sand control performance.
