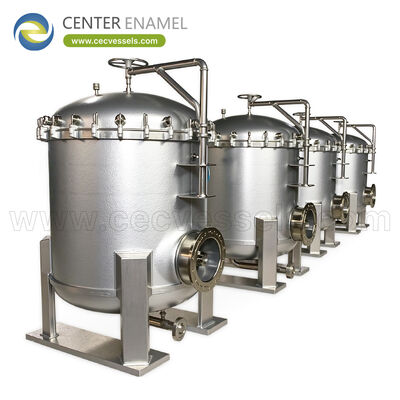

What Is a Nitrogen Reactor? Principles, Design & Applications
Answering the core question: What is a nitrogen reactor, and how does an inert nitrogen atmosphere protect sensitive and hazardous reactions? A nitrogen reactor is a vessel operated under a continuous or batch nitrogen blanket that displaces oxygen to below 50 ppm, eliminating combustion and oxidation risk. By holding the vapor-space oxygen concentration under 5 percent of the lower explosive limit (LEL), it permits handling of flammable solvents, pyrophoric catalysts, and oxygen-sensitive actives. Nitrogen is supplied at 0.1-10 MPa from cryogenic or PSA generators delivering 95-99.999 percent purity, while a purge-and-pressurize sequence reduces residual O2 to below 100 ppm before the batch starts.
Core Operating Principles of Nitrogen Reactors
- Inert Blanketing: A steady N2 flow keeps vapor-space O2 below 5 percent LEL; pressure-vacuum vents (PVRV) maintain slight positive pressure to exclude air ingress.
- Purge-and-Pressurize (P and P): Three-volume nitrogen sweeps cut residual O2 from 21 percent to below 100 ppm before heating, preventing explosive mixtures.
- O2 Monitoring and Interlock: In-line paramagnetic O2 analyzers trip feed or heat if concentration exceeds setpoint, integrating with explosion-isolation valves.
Major Types of Nitrogen Reactors
- Nitrogen-Blanketed Stirred Reactor: Standard agitated vessel with N2 pad for solvent-based and pyrophoric-catalyst batches.
- Glovebox-Integrated Reactor: Sealed reactor inside an N2 glovebox (below 1 ppm O2) for air-free organometallic synthesis.
- Cryogenic or PSA Fed System: On-site generator delivering 95-99.999 percent N2 to a battery of reactors, removing cylinder logistics.
Nitrogen Reactor Modes Comparison Matrix
| N2 Reactor Mode | O2 Target | Purity Needed | Primary Purpose |
|---|---|---|---|
| Blanketed | <5% LEL (~1% v) | 95-99 percent | Fire/oxidation prevention |
| Purge-Pressurize | <100 ppm | 99.5-99.9 percent | Safe start-up |
| Glovebox | <1 ppm | 99.999 percent | Air-free synthesis |
| Sparge (liq) | dissolved O2 <10 ppb | 99.9 percent | O2-free product |
Frequently Asked Questions (FAQ)
Q: Why use nitrogen instead of just closing the vessel?
A: Air leaks and thermal breathing draw oxygen in; a nitrogen blanket holds O2 below the 5 percent LEL threshold, preventing flammable or oxidative incidents.
Q: How low must oxygen go for explosive solvents?
A: Below 5 percent of the solvent LEL (often below 1 percent v) is the safe blanketing target; start-up purge reduces residual O2 to under 100 ppm.
Q: Where does the nitrogen come from?
A: On-site PSA or cryogenic generators supply 95-99.999 percent N2; high-purity glovebox work needs 99.999 percent to hold below 1 ppm O2.
Q: What failsafe protects a nitrogen reactor?
A: Paramagnetic O2 analyzers interlock with feed and heat; if O2 rises above setpoint, the system isolates and inerts the vessel.
