What Is a Hydrogen Reactor? Design, Safety & Industrial Applications

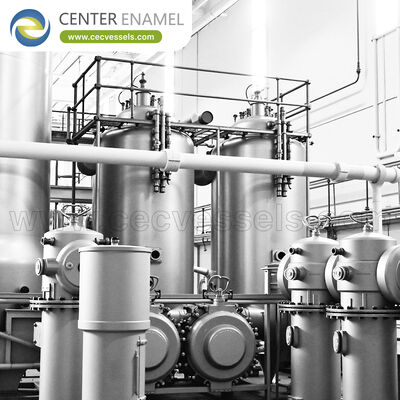

Answering the core question: What is a hydrogen reactor, and what unique design and safety challenges does hydrogen service impose? A hydrogen reactor is a high-pressure vessel engineered for catalytic hydrogenation reactions—processes in which hydrogen gas (H2) reacts with organic substrates (alkenes, aldehydes, nitro compounds, or aromatics) in the presence of a solid catalyst (typically nickel, palladium, platinum, or copper-chromite) to produce saturated compounds, amines, alcohols, or other reduced products. Operating at hydrogen pressures of 0.5-30 MPa and temperatures of 50-400 degrees C, hydrogen reactors face unique challenges: hydrogen embrittlement (HE) of carbon and low-alloy steels (requiring API 941/Nelson curve material selection for high-temperature hydrogen attack), the extreme flammability of hydrogen (4-75% explosive range in air, autoignition at 500 degrees C), and the need for high-shear gas-liquid mass transfer (kLa) to overcome hydrogen's low solubility (approximately 0.8 mM at 1 atm).

1. Core Design and Safety Principles for Hydrogen Service

· **Hydrogen Embrittlement Prevention:** Atomic hydrogen can diffuse into the steel lattice at pressures above 1 MPa, causing hydrogen embrittlement that reduces ductility and initiates cracking; prevention requires selecting low-strength steels (yield strength below 620 MPa per NACE MR0175), using austenitic stainless steels (316L) or nickel alloys (Hastelloy B-2, Monel) for high-pressure hydrogen service, and conducting ultrasonic examination of welds for hydrogen-induced cracking (HIC) during maintenance.

· **High-Temperature Hydrogen Attack (HTHA): At temperatures above 200 degrees C and hydrogen partial pressures above 0.7 MPa, hydrogen reacts with carbides in carbon steel, forming methane (CH4) that accumulates at grain boundaries and causes fissuring; the Nelson curves (API Recommended Practice 941) define the safe operating envelope for each material grade, with 1.25Cr-0.5Mo and 2.25Cr-1Mo steels required for temperatures above 300 degrees C in hydrogen service.

· **Explosion-Proof Design and Area Classification:** Hydrogen service areas are classified as ATEX Zone 1 (where explosive atmosphere may occur during normal operation) requiring Ex d (flameproof) or Ex i (intrinsic safety) electrical equipment; the reactor system includes nitrogen purge lines (O2 below 1% before hydrogen introduction), rupture disc or relief valve sizing per API 520 for fire-case and reaction runaway scenarios, and automated interlocks that shut hydrogen feed on detection of low pressure, high temperature, or loss of agitation.

2. Major Types of Hydrogen Reactors

· **Slurry-Phase Hydrogenation Reactor:** Used for liquid-phase hydrogenation of fine chemicals, pharmaceuticals, and edible oils; features a stirred autoclave with gas sparging, Raney nickel or Pd/C catalyst suspension, and internal cooling coils for exothermic heat removal; operates at 0.5-5 MPa H2 pressure, 50-200 degrees C, and achieves kLa values of 0.1-0.5 s^-1 with Rushton turbines at 300-600 rpm.

· **Fixed-Bed trickle-flow Hydrogen Reactor:** Used in petroleum refining for hydrotreating and hydrodesulfurization (HDS); liquid and gas flow concurrently downward through a packed catalyst bed (Co-Mo or Ni-Mo on alumina); operates at 3-20 MPa H2, 300-450 degrees C, with liquid hourly space velocities (LHSV) of 0.5-5.0 h^-1, removing sulfur from 5,000 ppm to below 10 ppm for ultra-low-sulfur diesel.

· **Fluidized-Bed Hydrogen Reactor:** Used for vapor-phase hydrogenation of large-volume chemicals (cyclohexane from benzene, methanol from syngas); gas fluidizes catalyst particles (50-200 micrometers) at velocities of 0.3-1.0 m/s, achieving excellent heat transfer (U = 400-800 W/(m^2*K)) and temperature uniformity; operates at 1-10 MPa, 150-400 degrees C, with catalyst inventories of 1-20 tons per reactor.

Hydrogen Reactor Types Comparison Matrix

Frequently Asked Questions (FAQ)

Q: What is the primary function of a hydrogen reactor?

A: A hydrogen reactor performs catalytic hydrogenation—reacting hydrogen gas with organic substrates in the presence of solid catalysts to produce saturated compounds, reduced intermediates, or desulfurized fuels—at pressures of 0.5-30 MPa and temperatures of 50-400 degrees C, with materials selected to resist hydrogen embrittlement and high-temperature hydrogen attack.

Q: What is hydrogen embrittlement and how is it prevented?

A: Hydrogen embrittlement occurs when atomic hydrogen diffuses into the steel lattice, reducing ductility and initiating cracking; prevention includes selecting low-strength steels (yield below 620 MPa), using austenitic stainless (316L) or nickel alloys for high-pressure service, and applying NACE MR0175 material requirements for hydrogen-containing environments.

Q: What are Nelson curves (API 941)?

A: Nelson curves define the safe operating envelope—temperature and hydrogen partial pressure—for each steel grade in high-temperature hydrogen service; operating above the curve triggers high-temperature hydrogen attack (HTHA), where hydrogen reacts with carbides to form methane that causes grain-boundary fissuring and vessel failure.

Q: How is gas-liquid mass transfer achieved in slurry hydrogenation?

A: In slurry reactors, a Rushton disc turbine disperses hydrogen gas as fine bubbles in the liquid phase, achieving volumetric mass transfer coefficients (kLa) of 0.1-0.5 s^-1 at 300-600 rpm; the hydrogen dissolution rate governs the overall reaction rate, making impeller design and gas sparging configuration critical for reactor productivity.
