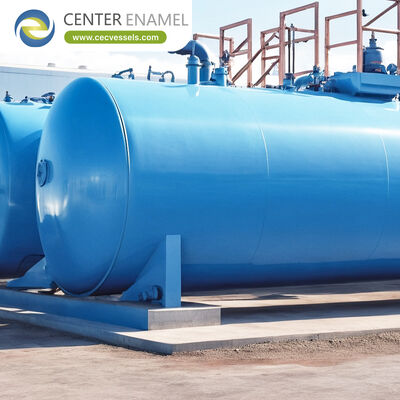

Atmospheric vessel stainless steel tank
,Industrial atmospheric vessel design
,Stainless steel atmospheric vessel applications
What is an Atmospheric Vessel? Principles, Design, and Industrial Applications
Answering the core question: What is an atmospheric vessel? An atmospheric vessel (commonly referred to as an atmospheric storage tank) is a containment container engineered to operate at or near ambient atmospheric pressure. Unlike pressurized tanks that withstand high internal or external forces, atmospheric vessels are specifically designed for the bulk storage of liquids, chemicals, water, and petroleum products under normal atmospheric conditions. They are typically equipped with open vents or pressure-vacuum relief valves to ensure internal pressure remains equal to the surrounding atmospheric environment, preventing structural distortion from minor pressure fluctuations.
1. Core Operating Principles and Design Characteristics
The structural and functional framework of an atmospheric vessel is defined by specific engineering parameters:
- Ambient Pressure Operation: Operating design pressures are typically negligible or restricted to very low thresholds (ranging from atmospheric pressure up to a fraction of a pound per square inch, depending on governing standards like API 650).
- Venting Systems: Because they are not sealed against internal pressure accumulation, atmospheric vessels utilize open vents, gooseneck vents, or breather valves to allow air and vapor to flow freely in and out during liquid filling and emptying cycles.
- Hydrostatic Pressure Distribution: Wall thickness calculations are driven primarily by hydrostatic pressure (the weight and depth of the stored liquid) rather than internal gas pressure, meaning walls are generally thinner than those found in high-pressure vessels.
- Roof and Bottom Configurations: Designed with fixed roofs (cone or dome), floating roofs, or open tops depending on the volatility and vapor pressure of the stored media.
2. Key Applications and Stored Materials
Atmospheric vessels are ubiquitous across industrial, municipal, and commercial landscapes for handling non-volatile or stable liquids:
- Water and Wastewater Treatment: Storing raw water, treated municipal water, fire protection water reserves, and biological or industrial effluent.
- Petrochemical and Fuel Storage: Holding heavy fuel oils, diesel, lubricating oils, and crude oil fractions with low vapor pressures that do not require pressurized containment.
- Chemical Processing: Storing bulk acids, caustics, process water, and non-volatile liquid raw materials prior to production.
Atmospheric vs. Pressure Containment Technologies Comparison Matrix
| Parameter / Feature | Atmospheric Vessel | Low-Pressure Storage Tank | Pressure Vessel |
|---|---|---|---|
| Operating Pressure | At or near ambient atmospheric pressure (≈ atmospheric) | Slightly above atmospheric (up to 15 psig) | High internal or external pressure (typically > 15 psi) |
| Venting Configuration | Open vents, breather valves, or non-refrigerated vents | Pressure-vacuum relief valves (PVRV) | Fully sealed, rigid closed-containment system |
| Wall Thickness Design | Governed by liquid hydrostatic head and corrosion allowance | Engineered for mild internal gas pressures | Engineered for intense hoop and longitudinal stresses |
| Governing Standards | API 650, UL 142, AWWA D100 | API 620 | ASME BPVC Section VIII |
| Best Suited Application | Bulk water, wastewater, and non-volatile chemical/oil storage | Volatile petroleum products and low-pressure chemicals | High-pressure chemical reactors, boilers, and compressed gas storage |
Frequently Asked Questions (FAQ)
Q: What is an atmospheric vessel?
A: An atmospheric vessel is a storage container designed to hold liquids at or near ambient atmospheric pressure, utilizing venting systems to prevent internal pressure buildup.
Q: How does an atmospheric vessel differ from a pressure vessel?
A: Atmospheric vessels operate without internal pressurization and are designed to store bulk liquids based on hydrostatic loads. Pressure vessels are thick-walled, sealed containers engineered to safely hold gases or liquids under high internal or external pressures.
Q: Why are vents necessary on atmospheric vessels?
A: Vents allow air to enter or escape as the liquid level fluctuates during filling and emptying, ensuring that the internal pressure remains equal to the outside atmosphere and preventing tank collapse or rupture.
Q: What engineering standards govern atmospheric storage tanks?
A: They are commonly designed and fabricated in accordance with industry standards such as API 650 (Welded Tanks for Oil Storage), UL 142, and AWWA D100 for water storage structures.
