Chemical Reactor Solutions: Engineered Systems for Modern Industrial Processing

Chemical reactor solutions encompass comprehensive, custom-engineered industrial systems designed to house, control, and optimize chemical transformations across manufacturing facilities. Rather than providing isolated vessels, integrated reactor solutions combine the primary reaction chamber with advanced thermal management jackets, automated mixing systems, precision instrumentation, and modular safety controls to maximize yield, safety, and operational efficiency.

An effective industrial chemical reactor solution is more than just a shell; it is an orchestrated assembly of mechanical, thermal, and control sub-systems:

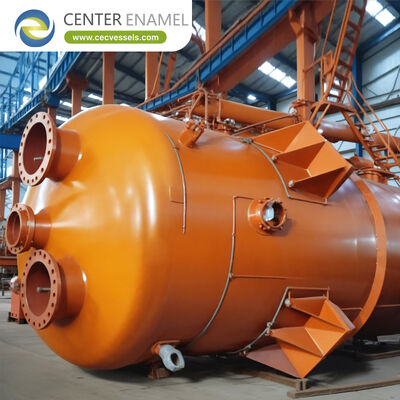

• The Primary Reaction Vessel: Engineered from high-grade materials (such as stainless steel, special alloys, or high-performance polymers) to match the specific chemical compatibility and pressure requirements of the process.

• Thermal Management Systems: Specialized internal coils or external half-pipe jackets that circulate heating or cooling media to control exothermic and endothermic reactions precisely.

• Agitation and Mixing Assemblies: Custom-designed impellers, shafts, and motor drives tailored to the viscosity and phase state of the reactants to ensure uniform mass transfer.

• Process Control and Automation: PLC-driven instrumentation loops that continuously monitor internal temperature, pressure, level, and pH to maintain stable operating conditions.

Industrial processes vary widely, requiring tailored reactor solution configurations:

Complete, pre-assembled reactor units built onto structural steel frames, integrating piping, pumps, valves, and electrical control panels. Skid-mounted solutions reduce on-site installation time and simplify testing.

Engineered for multi-step specialty chemical and pharmaceutical synthesis, these packages prioritize operational flexibility, easy clean-in-place (CIP) integration, and precise lot-to-lot traceability.

Designed for high-volume commodity chemical production, combining continuous stirred-tank reactors (CSTR) or tubular plug flow reactors (PFR) with steady-state feeding systems.

Industrial reactor solutions must adhere to rigorous international engineering codes to prevent catastrophic failures:

• Pressure Vessel Compliance: Fabrication in strict accordance with standards such as ASME Section VIII or EN 13445.

• Fail-Safe Interlocks: Automated emergency shutdown systems, rupture discs, and pressure relief valves that mitigate thermal runaways or over-pressurization.

Q: What is included in a complete chemical reactor solution?

A: A complete solution includes the main reaction vessel, thermal jackets or coils for heating/cooling, mechanical agitators, precision instrumentation (temperature, pressure, and level sensors), automated control panels, and safety relief systems.

Q: What are the advantages of skid-mounted reactor solutions?

A: Skid-mounted systems are pre-assembled, wired, and tested in a controlled manufacturing environment before being shipped to the plant site. This significantly reduces on-site construction time, minimizes installation errors, and streamlines facility integration.

Q: How do engineers select the right material for a custom reactor solution?

A: Material selection is driven by chemical compatibility, operating temperature, and internal pressure. Engineers analyze the chemical concentration, specific gravity, and potential corrosiveness to select appropriate metals like stainless steel, special alloys, or specialized polymers.

Q: What safety measures are built into industrial reactor systems?

A: Industrial reactors incorporate redundant temperature and pressure monitoring loops, automated emergency cooling mechanisms, rupture discs, safety relief valves, and programmable logic controller (PLC) interlocks to shut down operations safely if parameters exceed thresholds.
