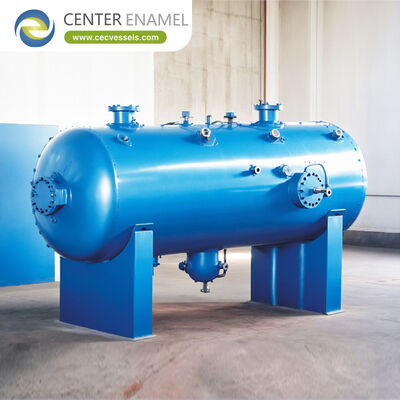

A chemical reactor is an engineered industrial vessel or system designed to safely house, control, and optimize chemical reactions to convert raw materials into valuable products. In chemical engineering, industrial reactors are categorized into four primary types based on their operating mode, flow dynamics, and mixing patterns.
A batch reactor operates on an unsteady-state basis where reactants are loaded into the vessel all at once, mixed thoroughly, allowed to react over a specific time duration, and discharged entirely as a single batch.
Key Characteristics: Highly flexible, easy to clean, and ideal for small-scale or multi-product manufacturing lines where recipes change frequently.
Primary Application: Pharmaceutical synthesis, specialty chemicals, and custom polymer production.
A CSTR (also known as a backmix reactor) operates in a continuous steady state. Reactants are continuously pumped into the vessel while reacted products flow out simultaneously, with mechanical agitators ensuring uniform mixing throughout.
Key Characteristics: Consistent internal composition, excellent temperature control, and steady-state output.
Primary Application: Liquid-phase homogeneous reactions, neutralization processes, and wastewater treatment biological digestion.
In a plug flow reactor, reactants flow through a cylindrical pipe or tube where fluid elements move as sequential "plugs" or streamline fronts, meaning there is no mixing along the longitudinal axis of flow.
Key Characteristics: High conversion efficiency per unit volume and sharp temperature gradients along the length of the tube.
Primary Application: High-temperature gas-phase reactions, chemical cracking, and large-scale petrochemical processing.
A fluidized bed reactor passes a gas or liquid upward through a solid catalyst bed at high enough velocities to suspend the solid particles, causing them to behave like a churning, boiling fluid.
Key Characteristics: Exceptional heat and mass transfer, preventing hot spots and ensuring uniform catalyst contact.
Primary Application: Catalytic cracking of petroleum, fluidized bed combustion, and large-scale polymerization.
| Reactor Type | Operating Mode | Flow & Mixing Pattern | Primary Industrial Application | Core Advantage |
|---|---|---|---|---|
| Batch Reactor | Unsteady state (Batch-by-batch) | Mechanically stirred; uniform composition at any instant | Pharmaceuticals, fine chemicals | High operational flexibility for multi-step recipes |
| CSTR | Continuous steady-state | Continuously stirred; complete back-mixing | Liquid-phase synthesis, wastewater treatment | Continuous steady-state output and reliable control |
| Plug Flow (PFR) | Continuous steady-state | Axial flow; minimal longitudinal mixing | Gas-phase cracking, petrochemical processing | High conversion efficiency per unit volume |
| Fluidized Bed | Continuous steady-state | Upward fluid flow suspending solid catalyst particles | Catalytic cracking, polymerization | Superior temperature control and heat transfer |
Q: What are the four main types of chemical reactors used in industry?
A: The four primary types are Batch Reactors, Continuous Stirred-Tank Reactors (CSTR), Plug Flow Reactors (PFR), and Fluidized Bed Reactors. Each is engineered to handle specific flow dynamics, reaction kinetics, and production scales.
Q: When should a plant engineer choose a Batch Reactor over a CSTR?
A: A batch reactor is chosen when producing low-volume, high-value products (like pharmaceuticals) that require multi-step chemical recipes or long reaction times. A CSTR is selected for high-volume, continuous manufacturing where steady-state output is required.
Q: How does fluid flow differ between a CSTR and a Plug Flow Reactor (PFR)?
A: In a CSTR, internal agitators cause complete back-mixing, resulting in a uniform chemical composition throughout the entire tank. In a PFR, fluids move forward in progressive "plugs" along a tube with virtually no longitudinal mixing, maintaining a gradual concentration gradient from inlet to outlet.
Q: Why are Fluidized Bed Reactors effective for catalytic reactions?
A: By suspending solid catalyst particles in an upward-flowing gas or liquid stream, fluidized bed reactors achieve maximum surface contact between reactants and catalysts while providing exceptional heat transfer, which prevents dangerous thermal hot spots.
