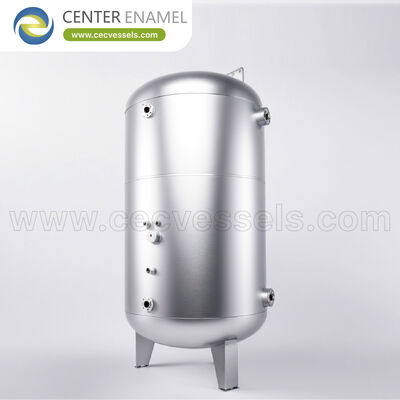

What is a Stainless Steel Chemical Mixing Tank?

A stainless steel chemical mixing tank is an advanced industrial containment vessel equipped with a mechanical agitation system designed to homogenize, blend, dissolve, or react chemical compounds safely. Unlike static chemical storage tanks, a mixing tank actively introduces kinetic energy into fluid media to facilitate mass transfer, break down phase boundaries, or accelerate chemical reactions.

Stainless steel (predominantly grades 304 and 316L) is the gold standard material for these systems. Its inherent corrosion resistance, structural integrity under thermal stress, and ease of passivation prevent the vessel from degrading when exposed to aggressive chemical formulations.

An industrial chemical mixing tank is a complex engineered assembly designed to balance chemical compatibility with mechanical forces:

• The Vessel Shell: Typically a cylindrical body with dished or conical heads to optimize fluid circulation and ensure complete drainage without trapping product residue.

• The Agitator Drive (Motor & Gearbox): Provides the high-torque, adjustable-speed rotational energy needed to turn the shaft and impeller against fluid resistance.

• The Impeller: The active element inside the tank that dictates the fluid flow pattern. Common geometries include axial-flow hydrofoils (for blending liquids), radial-flow pitch-blade turbines (for gas dispersion or high shear), and anchor impellers (for high-viscosity fluids).

• Baffles: Flat vertical plates welded uniformly to the internal wall of the vessel. Baffles disrupt the liquid's natural tendency to swirl in a circle, forcing the fluid into vertical loops (axial turnover) and preventing a deep, unstable vortex from pulling air into the mixture.

• Shaft Seals: Critical components (such as single or double mechanical seals) that prevent hazardous chemical vapors or liquids from escaping the vessel where the rotating shaft passes through the top head.

To safely design or scale up a chemical mixing tank, process engineers rely on fluid mechanics. The most critical metric used to analyze a mixing tank's efficiency is the Impeller Reynolds Number (Re_m), which establishes whether the flow regime inside the vessel is laminar, transitional, or turbulent:

Operating in the fully turbulent regime (Re_m > 10,000) ensures rapid homogenization and eliminates stagnant "dead zones" where chemicals might separate or fail to react.

To understand how fluid properties and mechanical configurations change the dynamics inside a stainless steel mixing tank, adjust the parameters below. This interactive simulator models the fluid dynamics, calculates the exact Reynolds number, identifies the flow regime, and estimates the necessary motor shaft power.

Selecting the correct alloy for a chemical mixing tank directly influences its lifespan and safety footprint. While carbon steel or plastics may fail or degrade under corrosive loads, stainless steels form a protective chromium oxide passivation layer.

1. Viscosity Management: Low-viscosity chemical blending relies on small, high-speed impellers (hydrofoils). High-viscosity materials (pastes, polymers) require close-clearance anchor or helical ribbon impellers operating at low speeds with high-torque gearboxes.

2. Surface Finish & Electropolishing: For chemical reactions prone to scaling or polymer buildup, or for sanitary chemical processing (pharmaceuticals), the inner tank wall must be polished down to an Ra < 0.4 , mu m followed by chemical passivation to ensure smooth fluid release and easy washdowns.

3. Vortex Suppression: Always ensure your vessel configuration includes baffles if processing low-to-medium viscosity fluids. Un-baffled tanks create solid-body fluid rotation which drops mixing efficiency to near zero, while drawing in air pockets that induce oxidation.

Q: Why choose stainless steel over plastic (HDPE/FRP) for a chemical mixing tank?

A: Plastic tanks are restricted to atmospheric pressure and low operational temperatures (typically under 60°C). A stainless steel mixing tank can be engineered to handle high pressures or full vacuums, withstand extreme process temperatures, and absorb the intense dynamic vibration and shear stresses exerted by high-power agitators without risking structural fatigue.

Q: What is a "dead leg" or "dead zone" in a mixing tank?

A: A dead zone is an area within the tank vessel—typically near stagnant discharge ports or square corners—where fluid velocities approach zero. Chemicals in these spaces do not blend properly, which can compromise batch consistency. High-quality designs use dished bottoms and flush-mount tank valves to completely eradicate dead legs.

Q: How do you prevent chemical contamination from the tank body itself?

A: Through a process called Passivation. After the tank is fabricated and welded, it is treated with a nitric or citric acid bath. This solution selectively strips out any free iron particles left on the surface by tooling, leaving behind a clean layer of chromium which reacts with ambient oxygen to form a highly non-reactive, protective oxide skin.
