In process engineering, a separator is a pressure vessel designed to partition a multiphase mixture—most commonly oil, gas, water, and solids—into distinct components. The efficiency of this process is the "heartbeat" of upstream production and downstream processing. Proper design ensures process purity, protects downstream equipment (like compressors and heaters), and maximizes fiscal metering accuracy.
Separators are categorized based on their orientation, phase capability, and configuration.
| Category | Type | Best For |
|---|---|---|

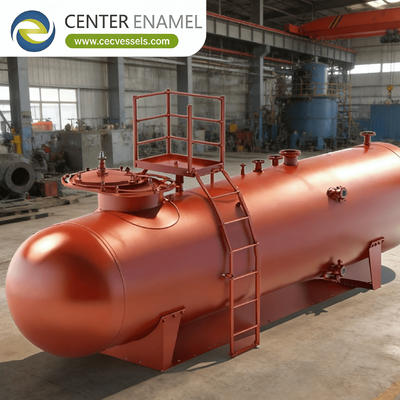

| Orientation | Horizontal | High gas-to-liquid ratios; large liquid surface area; efficient gas breakout. |
| Vertical | Small footprints (offshore/skid); handling foamy crude or high sand content. | |
| Spherical | Compact, low-volume applications; cost-effective for smaller gas-liquid separation. | |
| Capability | Two-Phase | Basic separation of gas from total liquid (oil + water combined). |
| Three-Phase | Partitioning gas, oil, and water into individual streams; requires complex internals. | |
| Configuration | Test/Production | Specialized for fiscal metering or long-term production processing. |
Engineering a separator requires balancing thermodynamic conditions with fluid physics to achieve optimal separation efficiency.
A well-designed separator must manage four distinct functional zones:
Inlet Zone: Uses diverters (baffles/cyclones) to dissipate momentum and perform bulk gas-liquid separation immediately upon entry.
Gravity Settling Section: The "quiet zone" where fluids reside long enough for density-based separation to occur.
Coalescing Zone: Utilizes parallel plates, vane packs, or mesh pads to force small, stable droplets to merge into larger, easier-to-separate globules.
Outlet Zone: Ensures separated phases are removed without re-entrainment. This requires precise level control (weirs/buckets) to maintain interface stability.
Retention Time: The duration fluid stays in the vessel. Insufficient time leads to "carry-over" (liquid in gas) or "carry-under" (gas in liquid).
Gas Velocity: Must remain below the Souders-Brown limit ($V_{max} = K sqrt{frac{rho_L - rho_G}{rho_G}}$) to prevent liquid mist from being dragged out with the gas stream.
Surge Capacity: Design must account for process upsets; vessels are typically sized to handle "hold-up" (normal liquid volume) plus a surge volume to prevent high-level alarms during flow spikes.
Q: Horizontal vs. Vertical: Which is better?
A: It is a trade-off. Horizontal vessels provide a larger surface area for liquid-gas separation and are preferred for high gas-to-oil ratios. Vertical vessels are ideal when plot space is limited or when the stream contains significant amounts of sand/solids that need to be flushed out from the bottom.
Q: What is the purpose of an inlet diverter?
A: The inlet diverter is a primary internal component that serves two roles: it stops the "slug" of incoming flow to prevent turbulence in the settling zone, and it initiates bulk separation by forcing gas and liquid to change direction rapidly.
Q: Why do some separators have "coalescing packs"?
A: Many fine droplets do not settle out naturally due to small size ($D$ in Stokes' Law). Coalescing packs provide a high surface area for these small droplets to collide and merge. Once they become larger droplets, their rise/settle velocity increases significantly, allowing the vessel to be smaller and more efficient.
Q: Can a separator handle foaming crude?
A: Foaming crude is a major design challenge. Vertical separators are generally better for foam management, but specialized internal "foam breakers" or chemical defoamer injection points are often required to prevent the foam layer from filling the gas space.
