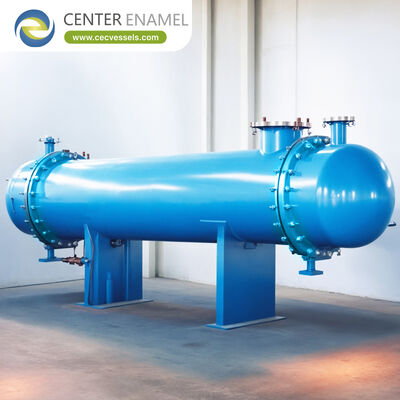

Industrial Oil & Gas Separators: Engineering Principles, Configurations, and Design Selection

In upstream production, an oil and gas separator is a high-pressure vessel designed to partition a wellstream into its constituent phases: oil, water, and gas. By utilizing gravitational settling and controlled flow regimes, these vessels ensure that hydrocarbons meet sales specifications, minimize water content in crude oil, and remove liquid carry-over from gas streams to protect downstream pipelines and compressors.

The efficiency of a separator is defined by its ability to provide sufficient retention time for the denser water phase to settle at the bottom, the oil phase to reside in the middle, and the gas phase to break out to the top.

Separators are primarily categorized by the number of fluid phases they are engineered to process:

• Two-Phase Separators: Isolate the wellstream into a single liquid phase (oil and water mixture) and a gas phase. These are typically utilized in upstream fields where water cut is low or where centralized dehydration facilities are available downstream.

• Three-Phase Separators: Partition the wellstream into three distinct streams: gas, oil, and water. These units incorporate internal weirs and baffles to facilitate the stratification of the liquid phase, allowing for the independent discharge of free water and saleable oil.

The selection of separator orientation is driven by the Gas-Liquid Ratio (GLR), solid content (sand), and the physical footprint of the production facility.

The separation of droplets from a continuous phase is governed by Stokes' Law. To effectively size a vessel, engineers must calculate the terminal rising velocity (vp) of a liquid droplet through the gas phase (or a gas bubble through a liquid phase):

Engineering Rule: The square of the droplet diameter (d2) dictates the separation velocity. Internal components like vane-type mist extractors or coalescing mats are designed to force droplets to collide and grow, which exponentially increases the separation efficiency within a smaller vessel volume.

Regardless of orientation, all high-performance separators integrate specific internal hardware to manage flow dynamics:

• Inlet Diverter: The primary component that absorbs the kinetic energy of the incoming high-velocity wellstream. It performs the initial "bulk" separation of gas and liquid, preventing excessive turbulence.

• Gravity Settling Section: The quiescent volume of the vessel where fluid velocity is minimized to allow density-driven stratification.

• Mist Extractor (Demister): Located at the gas outlet, this pad (knitted wire mesh or vane pack) captures microscopic entrained liquid droplets, ensuring the gas phase is sufficiently "dry" for pipeline transmission.

• Weir Plates & Baffles: Used in three-phase separators to create distinct liquid collection zones, ensuring the water dump valve only pulls water and the oil weir only overflows with oil.

To optimize selection for a new field development or retrofit, evaluate the following constraints:

1. Gas-Liquid Ratio (GLR): High GLR wells benefit from vertical separators (fast gas breakout), while low GLR/high liquid wells require horizontal units (longer retention time).

2. Solids Management: If the well produces significant sand, vertical separators with sand-jetting nozzles are required to prevent solids accumulation that would otherwise block the outlet valves.

3. Foaming Tendencies: Crudes prone to foaming require horizontal separators to provide the necessary surface area to collapse the foam head.

Are you sizing a separator for a high-GOR well, or do you need to optimize an existing horizontal vessel experiencing gas carry-under?
