What Is a Chemical Reactor? An Engineering Guide

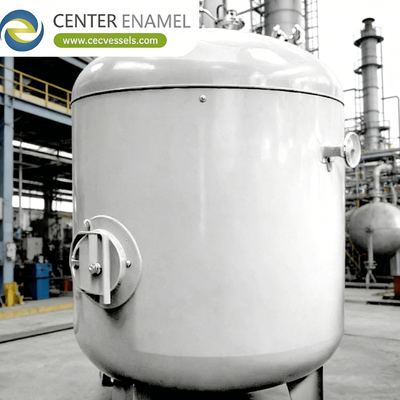

A chemical reactor is an enclosed vessel designed to contain a chemical reaction. Its primary purpose is to convert raw materials (reactants) into desired products through controlled chemical transformations. Unlike a standard storage tank, a chemical reactor is engineered to manage reaction kinetics, thermodynamics, and mass transfer, ensuring that the reaction occurs at a desired rate, selectivity, and yield.

The fundamental goal of any chemical reactor is to provide the optimal environment for molecular collisions. Chemical reaction engineering focuses on three main aspects:

• Residence Time: Ensuring reactants stay in the vessel long enough to react (or preventing them from staying too long and forming unwanted side-products).
• Heat Management: Most reactions are either exothermic (release heat) or endothermic (absorb heat). Reactors must include heating/cooling jackets or internal coils to maintain isothermal or controlled temperature conditions.
• Mass Transfer: Ensuring the reactants are thoroughly mixed, especially in multi-phase systems (e.g., gas-liquid reactions).

Reactors are primarily classified based on how they handle the flow of materials.

The reactants are charged into the vessel, reacted to completion, and then emptied. This is highly flexible but labor-intensive due to the downtime required for cleaning and refilling between batches.

Reactants flow in and products flow out continuously. It uses a high-speed agitator to keep the mixture perfectly uniform throughout the vessel. The concentration of the product in the reactor is equal to the concentration of the product exiting the reactor.

Fluid moves through a tube or pipe like a "plug," with no mixing between different segments of the fluid. The composition changes continuously as the fluid moves down the length of the reactor.

Regardless of the type, high-performance industrial reactors share specific structural components:

• Agitator/Mixer: Essential for CSTRs and batch reactors to ensure uniformity of temperature and concentration.
• Thermal Jacket/Internal Coils: Used to circulate steam, water, or oil to control the reaction temperature.
• Baffles: Vertical metal plates attached to the reactor walls to break up the flow patterns and promote better mixing.
• Nozzles/Inlets: Precisely engineered ports for the injection of reactants and withdrawal of products.
• Instrumentation: Sensors for monitoring pH, pressure, temperature, and torque, which are critical for controlling the reaction rate.

A: A storage tank is designed to hold material safely without changing its chemical composition. A chemical reactor is specifically designed to facilitate a change in composition, requiring heat exchange, agitation, and rigorous process control.

A: The choice depends on the reaction kinetics. If the reaction is slow, a large Batch or CSTR might be needed. If the reaction is fast, a PFR (Plug Flow) might be more efficient to prevent back-mixing and side reactions.

A: Yes, provided they are designed as Pressure Vessels. These reactors are built with thick-walled steel or specialized alloys and undergo strict testing (like ASME U-stamp certification) to ensure they can safely contain pressurized reactions without catastrophic failure.
