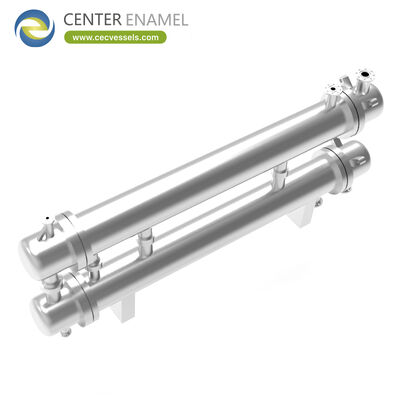

Material Selection Guide for Shell and Tube Heat Exchangers: Engineering & Durability

Material selection for shell and tube heat exchangers is a critical engineering decision that balances three primary factors: corrosion resistance, thermal conductivity, and mechanical pressure-bearing capacity. Because these vessels operate under severe conditions—often involving high pressures, high temperatures, and aggressive chemical process fluids—materials must comply with ASME Section VIII standards to ensure structural integrity and long-term asset safety.

The choice of material depends heavily on the "process fluid profile"—the chemical composition, temperature, and pressure of the media being processed.

Carbon steel is the industry standard for non-corrosive, moderate-duty shell-and-tube units.

• Advantage: Exceptional mechanical strength and lower capital cost.

• Engineering Note: While it has good thermal properties, it is susceptible to oxidation (rust) and erosion. It is typically used for the outer shell where the fluid is non-corrosive (like steam or treated water).

Stainless steel is the preferred choice for processes requiring hygiene or resistance to mild-to-moderate corrosion.

• Advantage: The 316L grade (low carbon) is specifically engineered to resist intergranular corrosion during welding, making it the industry standard for pharmaceutical and food-grade heat exchangers.

• Engineering Note: The surface finish (Ra value) is critical here; a polished finish prevents biofilm attachment in sanitary processes.

In severe chemical environments—such as high-temperature acidic streams—standard steels will fail rapidly.

• Titanium: Virtually immune to seawater and chloride-based corrosion.

• Hastelloy/Inconel: Engineered for high-temperature strength and resistance to sulfuric or hydrochloric acid environments.

• Engineering Note: These materials are significantly more expensive; they are often used only for the tube bundle (the part in direct contact with the aggressive fluid) while using carbon steel for the shell to manage costs.

For large-scale, high-pressure vessels, using solid exotic alloys is economically prohibitive. Center Enamel and other top-tier fabricators often use Clad Steel.

• Method: A thin layer of corrosion-resistant alloy (e.g., Titanium or Stainless) is metallurgically bonded to a heavy-gauge Carbon Steel base.

• Result: You receive the structural strength of carbon steel with the corrosion immunity of an exotic alloy, optimized for budget efficiency.

For an ASME-certified manufacturer, material selection is not just a choice—it is a regulatory requirement. All materials must be accompanied by Material Test Reports (MTRs).

1. Traceability: Every steel plate and tube must be traceable to the original heat number from the mill.

2. ASME Compliance: Materials must be listed in the ASME Boiler and Pressure Vessel Code (BPVC) to be used for pressure-retaining components.

3. Weld Compatibility: When using different materials (e.g., welding a stainless bundle to a carbon shell), the weld procedure specifications (WPS) must be strictly validated to prevent galvanic corrosion at the joint.

Q: Why choose Titanium over Stainless Steel for seawater cooling?

A: Seawater contains high levels of chlorides, which cause "pitting corrosion" in 316L stainless steel. Titanium forms a stable, protective oxide layer that makes it nearly immune to chloride-induced corrosion, significantly extending the lifecycle of the exchanger.

Q: Can I mix different materials in the same heat exchanger?

A: Yes, it is common practice. For instance, you might use 316L stainless steel tubes for a corrosive process fluid, while the shell and bonnets are made of carbon steel to save costs. This is perfectly acceptable provided that the joint transitions are correctly engineered for galvanic isolation.

Q: What is "Galvanic Corrosion," and how does it affect material choice?

A: Galvanic corrosion occurs when two different metals are in contact in the presence of an electrolyte (like water). If you select two metals too far apart on the galvanic scale, one will corrode rapidly. Our engineering team performs a "galvanic potential analysis" to ensure material compatibility during the design phase.
